UM ColorVu DS-2CExxDFT-Fxx 122919NA 20

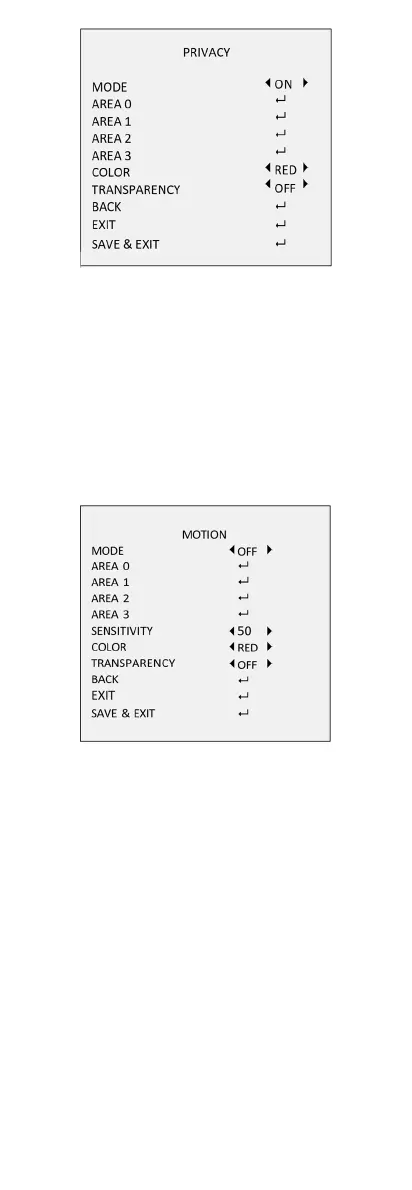

Figure 29, Privacy
1. Select a PRIVACY area.
2. Set the MODE as ON.
3. Click up/down/left/right button to define the
position and the size of the area.
• MOTION. In the user-defined motion detection
surveillance area, the moving object can be detected
and the alarm will be triggered. Up to four motion
detection areas can be configured.
Figure 30, Motion
1. Select a MOTION area.
2. Set the MODE as ON.
3. Click the up/down/left/right button to define the
position and the size of the area.
• DPC (Defective Pixel Correction). Defective pixels are
pixels in a CMOS image sensor that fail to sense light
levels correctly.
This series of cameras supports defective pixel
correction. You can set the DPC as ON or OFF.
3.1.7. FACTORY DEFAULT
Resets all settings to the factory defaults.
3.1.8. SAVE & EXIT
1. Move the cursor to SAVE & EXIT.
2. Click Iris+ to save the setting and exit the menu.
