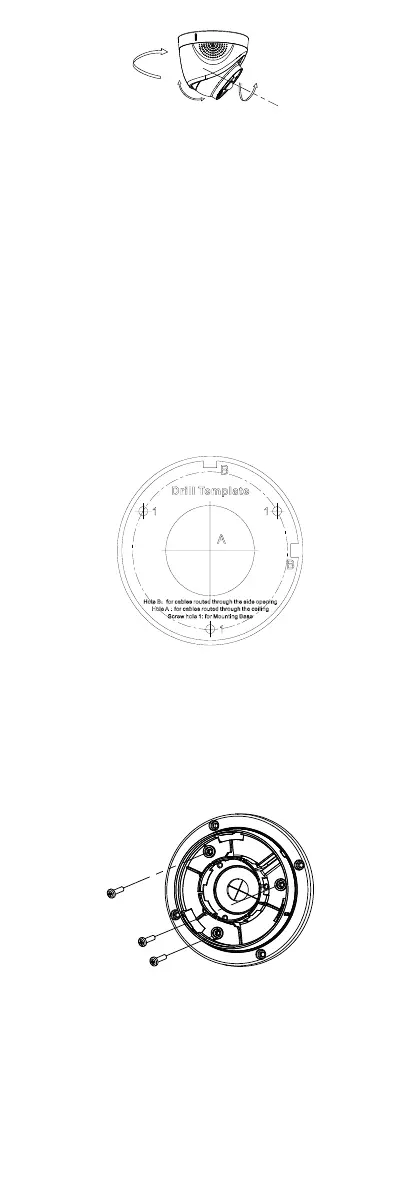

Figure 2-13 3-Axis Adjustment
1). Rotate the enclosure to adjust the pan position
[0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the main body to adjust the rotation
position [0° to 360°].
2.2.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance. The
installation of ceiling mounting and wall mounting are
similar. Following takes wall mounting as an example.
Steps:
1. Paste the drill template on the wall.
2. Drill screw holes and the cable hole (optional) on
the wall according to the drill template.
Figure 2-14 Drill Template
Note:
Drill the cable hole, when adopting ceiling outlet to
route the cable.
3. Take apart the junction box, and align the screw
holes of the mounting base with those on the
junction box’s cover.
4. Install the mounting base to the junction box’s cover
with three PM4 screws.
Figure 2-15 Secure screws on the Junction Box’s Cover
5. Secure the junction box’s body on the wall with four
PA4 × 25 screws.
