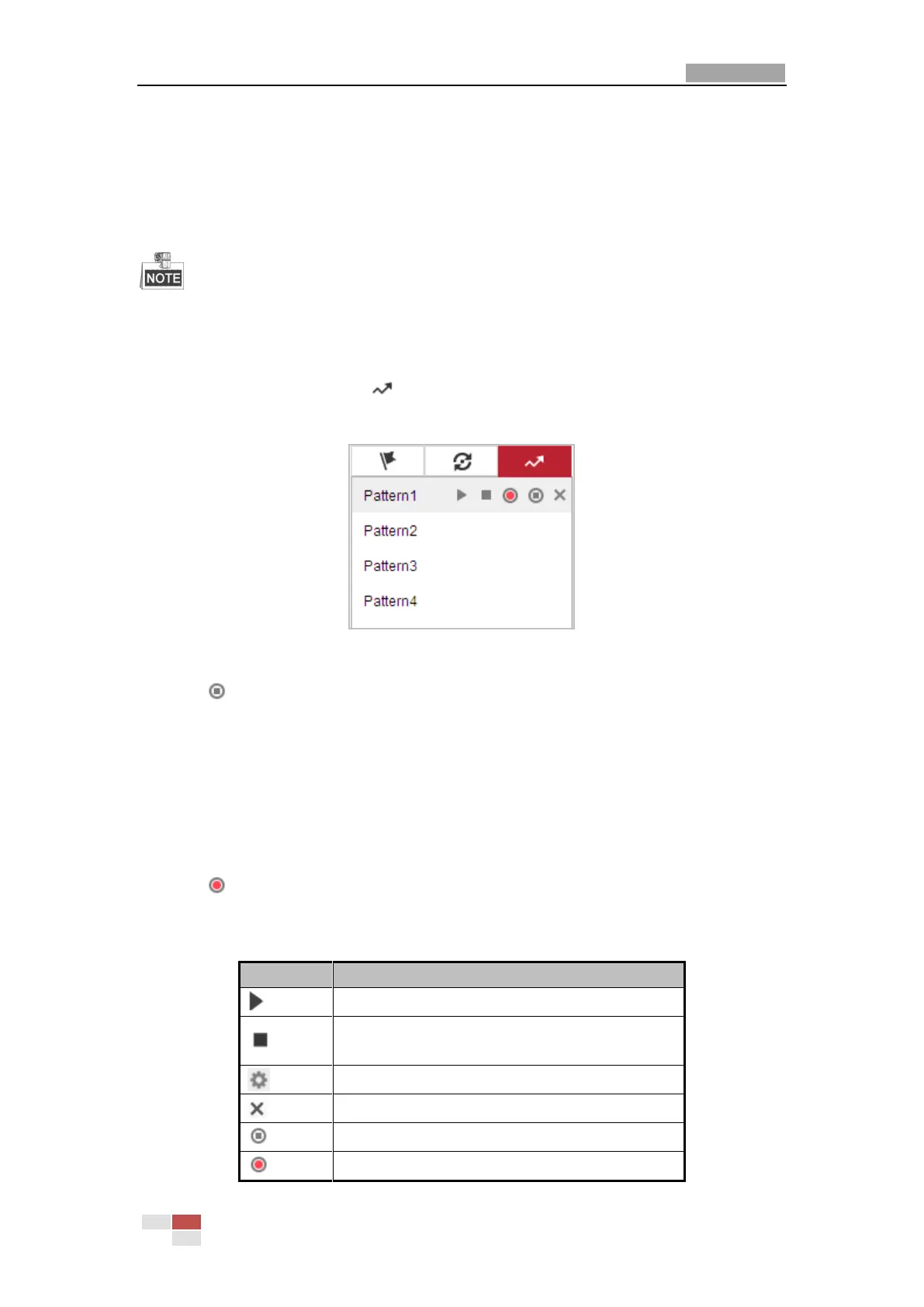

4.4.6 Setting/Calling a Pattern
Purpose:
A pattern is a memorized series of pan, tilt, zoom, and preset functions. It can be called on the
pattern settings interface. There are up to 4 patterns for customizing.
Pattern function varies depending on different camera models.
 Setting a Pattern:
Steps:
1. In the PTZ control panel, click to enter the pattern settings interface.
2. Select a pattern number from the list as shown in Figure 4-12.
Figure 4-12 Patterns Settings Interface
3. Click to enable recording the panning, tilting and zooming actions.
4. Use the PTZ control buttons to move the lens to the desired position after the information of
PROGRAM PATTERN REMAINNING MEMORY(%) is displayed on the screen.
 Pan the camera to the right or left.
 Tilt the camera up or down.
 Zoom in or out.
 Refocus the lens.
5. Click to save all the pattern settings.
 Buttons on the Patterns interface:
Buttons
Description
Start the selected patrol/pattern.
Stop current patrol/pattern.
Set the selected preset/patrol.
Delete the selected preset/patrol/pattern.
Start recording a pattern.
Stop recording the pattern.

HIKVISION DS-2DE2A404IW-DE3 Specifications

General

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	256 GB
Maximum resolution	2560 x 1440 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Type	IP security camera
Placement supported	Outdoor
Sensor type	CMOS
Optical sensor size	1/3 \
Housing material	Aluminum
Voice codecs	G.711, G.722.1, G.726, MP2L2, PCM
Number of users	32 user(s)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Minimum illumination	0 lx
