3.2 Install Memory Card
The micro SD card of two camera models is installed in the same way. Here is an
example of SD card installation for type II camera.
Steps:
1. Remove the cover on the back of the Turret Camera.

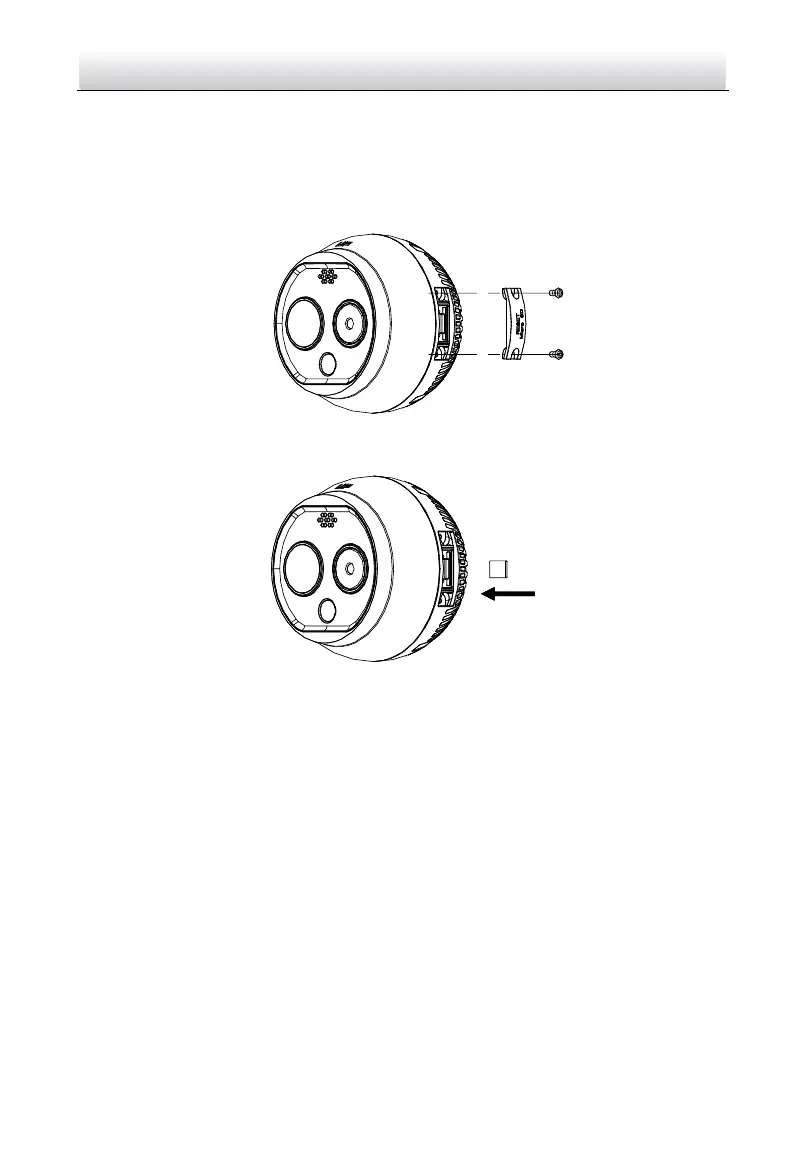

Figure 3-1 Remove the Cover
2. Insert the SD card to the SD card slot and install the cover back.
Figure 3-2 SD Card Slot
3.3 Install Turret Camera
Two types of cameras are installed in the same way. Here is an example of installation
for type II camera.
Steps:
1. Drill the hole on the wall or the celling according to the supplied drill template
To Next Page
