HIKVISION DS-2TD8166-150ZH2F/V2 Quick Start Guide

Thermal Network Speed Dome Quick Start Guide
10

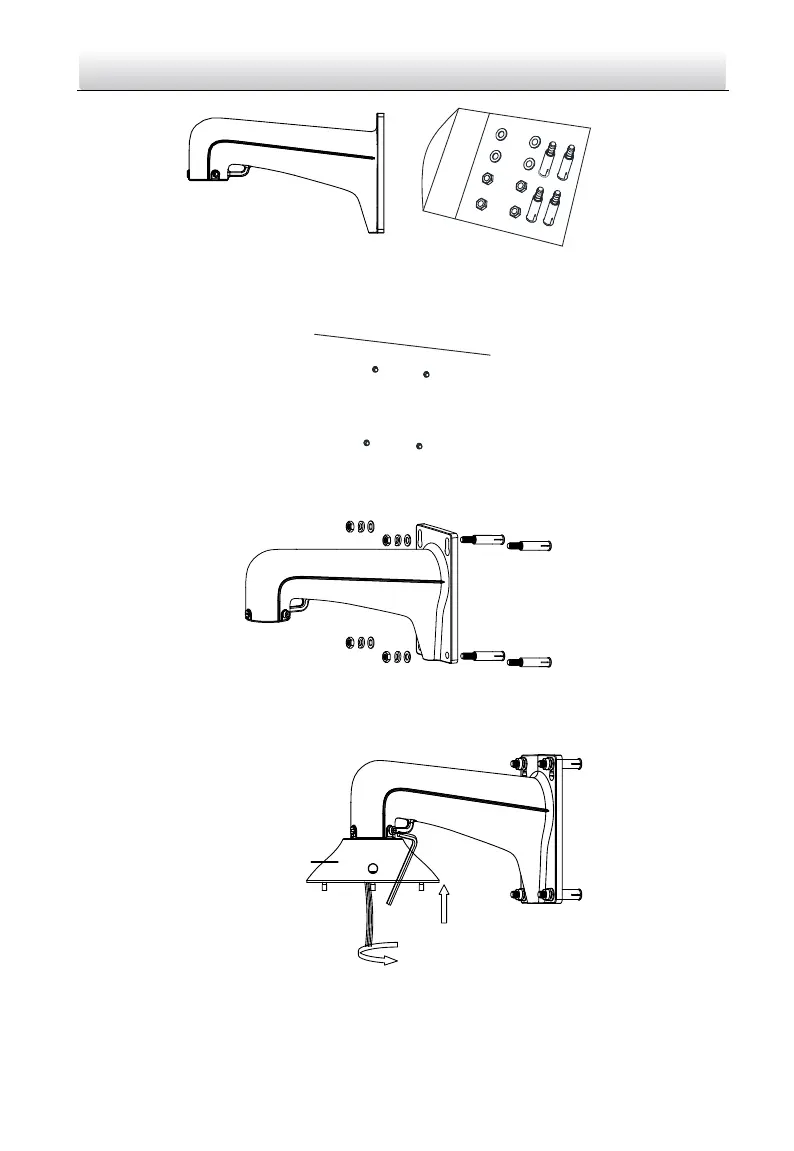

Figure 3-6 Bracket and Accessories
2). Drill four Φ12 expansion screw holed on the wall and insert the delivered screws
into the holes.
Figure 3-7 Drill Screw Holes
3). Secure the wall mounting bracket with 4 hex nuts and washers.
Figure 3-8 Secure the Bracket
2. Stick thread tape to the thread of the head cover and rotate the head cover. Secure
the head cover to the bracket with delivered set screws.
①
②
③
Head Cover
Figure 3-9 Secure the Head Cover
3. Install the dome body to the head cover for camera type I and type II.
1). Buckle the handle to the safety rope.
