HIKVISION DS-9600NI-I16 Series User Manual

Network Video Recorder User Manual
39
DS-7600NI-K1 and DS-7600NI-K1/4P

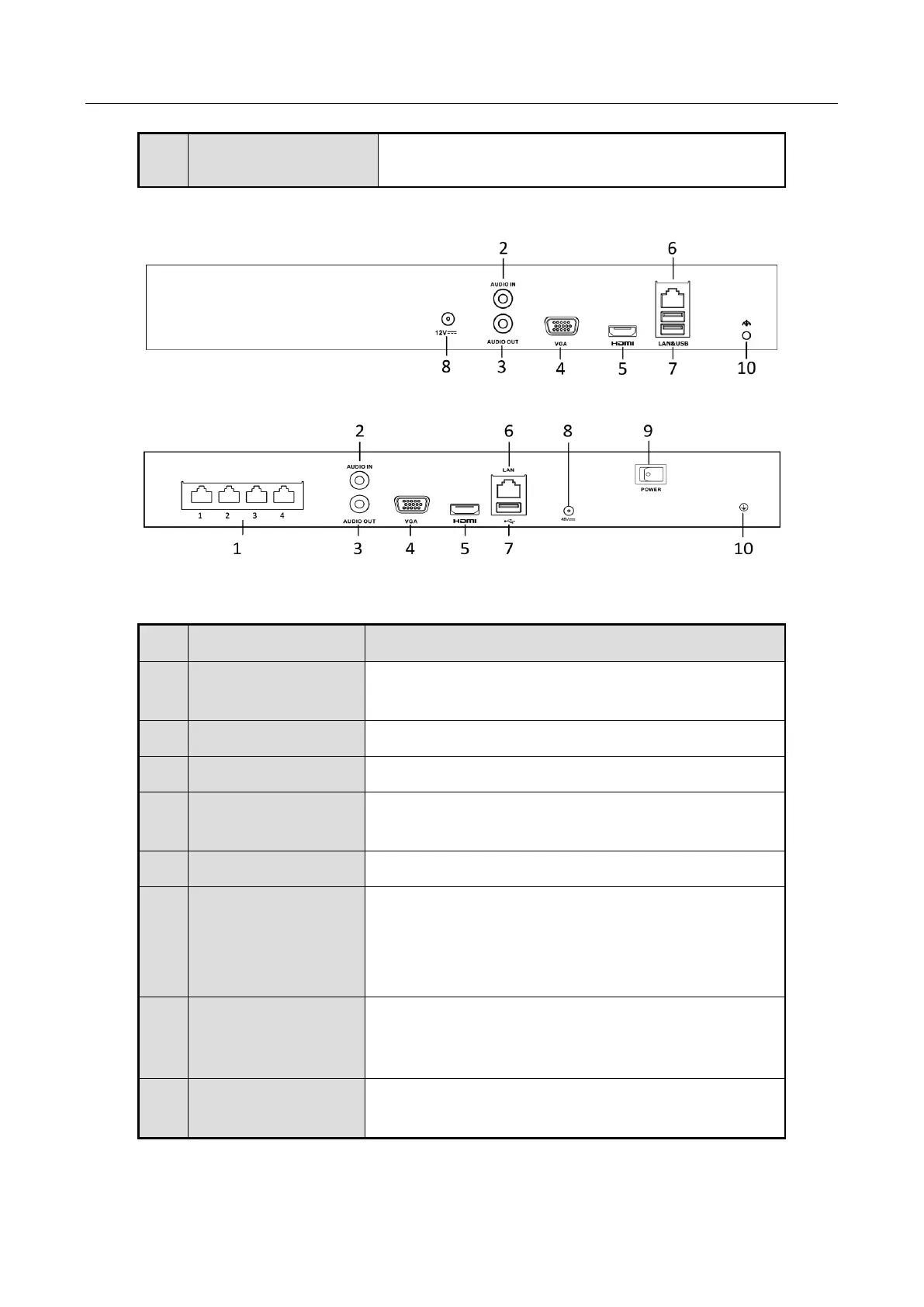

Figure 1-14 DS-7600NI-K1 Series
Figure 1-15 DS-7604NI-K1/4P Series
Table 1-10 Panel Description
(supported by
DS-7600NI-I2/P)
No.
Name
Description
1
Network Interfaces
with PoE function
Network interfaces for the cameras and to provide
power over Ethernet.
2
Audio In
RCA connector for audio input.
3
Audio Out
RCA connector for audio output.
4
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
5
HDMI Interface
HDMI video output connector.
6
LAN Network
Interface
1 10/100/1000 Mbps self-adaptive Ethernet
interface for DS-7600NI-K1;
1 100 Mbps full-duplex Ethernet interface for
DS-7600NI-K1/4P.
7
USB Interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
9
Power Supply
12VDC power supply for DS-7600NI-K1 and 48 VDC
power supply for DS-7600NI-K1/4P
