HIKVISION DS-KH6320-WTE1 Installation & Quick Start Guide



•
Mak
e sure the device in the package is in good condion and all the assembly
parts ar
e included.
•
The power supply the indoor staon supports is 12 VDC. Please make sure your
po
wer supply matches your indoor staon.
•
Make sure all the related equipment is power-o during the installaon.
•
Check the pr
oduct specicaon for the installaon environment.



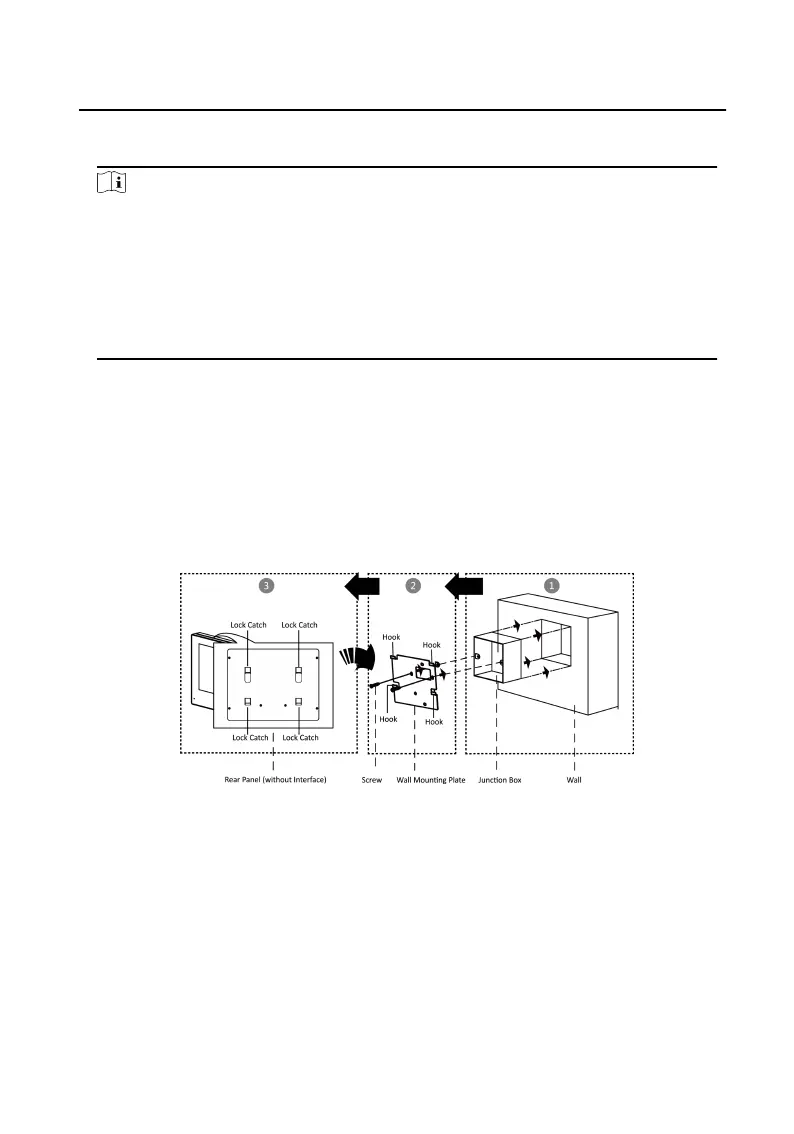

Chisel a hole in the w
all. The size of the hole should be 76 mm (width) × 76 mm
(length) × 50 mm (depth).

Insert the juncon box to the hole chiseled on the wall.

Fix the w
all mounng plate to the juncon box with 2 screws.

Hook the indoor staon to the wall mounng plate ghtly by inserng the plate
hooks into the slots on the rear panel of the indoor staon, during which the
lock catch will be locked automacally.
󳴐󶔏󶐊󵸈󳨖󵸄󶐊󵼏
Network Indoor Staon Installaon Guide


HIKVISION DS-KH6320-WTE1 Specifications

General

Display Size	7 inch
Resolution	1024 × 600
Network Protocols	TCP/IP, SIP, RTSP
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Power Consumption	≤ 6 W
Operation Method	Touchscreen
Audio Compression Standard	G.711 U
Audio Compression Rate	64 Kbps
Wi-Fi Standard	IEEE802.11 b/g/n
Wi-Fi Frequency Range	2.4 GHz
RS-485	1
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Audio	Two-way audio
Power Supply	12 VDC, PoE (IEEE802.3af)
Installation	Wall-mounted
Display Type	TFT LCD
Network Interface	10/100 Mbps Ethernet
Alarm Output	1 channel
TF Card	up to 32 GB
Working Humidity	10% to 90%
