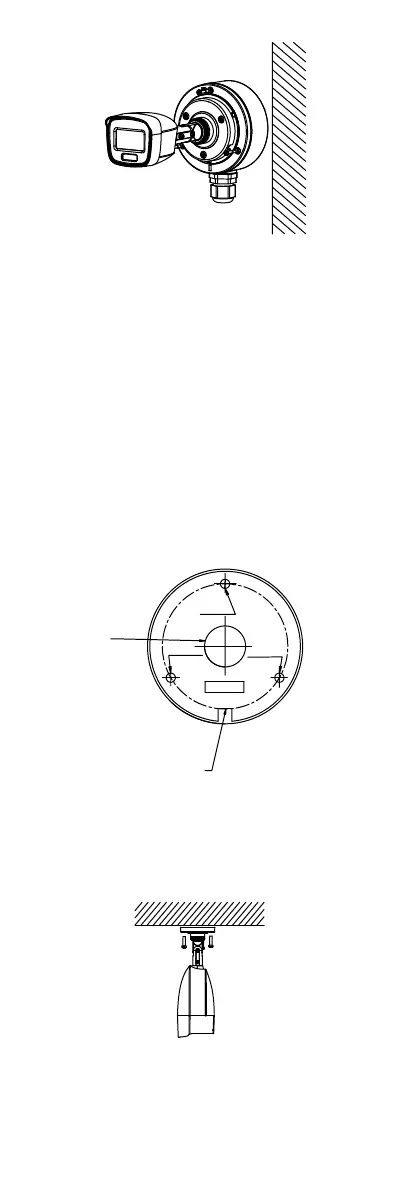

Figure 2-7 Fix the Junction Box Cover on Its
Body
9. Repeat steps 6 to 7 of 2.1.1 Ceiling/Wall Mounting
without Junction Box to finish the installation.
2.2 Installation of Type II Camera
2.2.1 Ceiling/Wall Mounting without Junction Box
Before you start:
The ceiling mounting and wall mounting are similar.
Following steps take ceiling mounting as an example.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Figure 2-8 Drill Template
3. (Optional) Drill the cable hole, when the cables are
routed through the ceiling.
4. Align the screw holes in the bracket to the ceiling,
and secure the camera with three PA4 × 25 screws
(supplied).
Figure 2-9 Secure the Camera to the Ceiling
5. Connect the power cord and video cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure
below.
