HIKVISION Ultra Series Quick Start Guide

Network Box Camera·Quick Start Guide
26
1). For network, alarm input and output, and audio input and
output, plug corresponding plugs to the rear panel of the
camera. See Figure 1-1.
2). For power supply and RS-485, see the following figure.
Heater
To camera
RS-485 -, yellow
RS-485 +, orange
To camera
12 VDC -, black
12 VDC +, red
Customer power Supply
24 VAC or 12 VDC

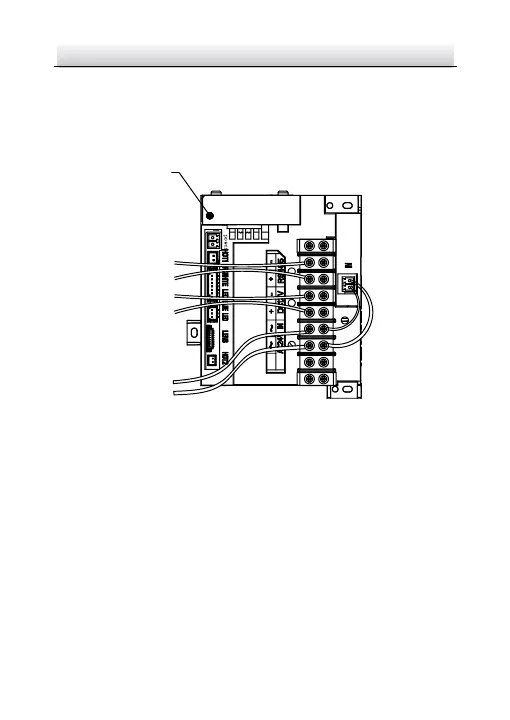

Figure 2-16 Wiring Board in Housing
2. Buckle the housing.
3. Install the housing to surveillance scene.
Using brackets, the housing supports wall mounting, pole
mounting, pendant mounting, column mounting, integrated
mounting, and integrated mounting with junction box. The
brackets are shown in the figures below:
