Hiland FT-022 - Assembly Instructions; Step 1: Attaching Lift Handle; Step 2: Assembling Decorative Frame; Step 3: Connecting Base

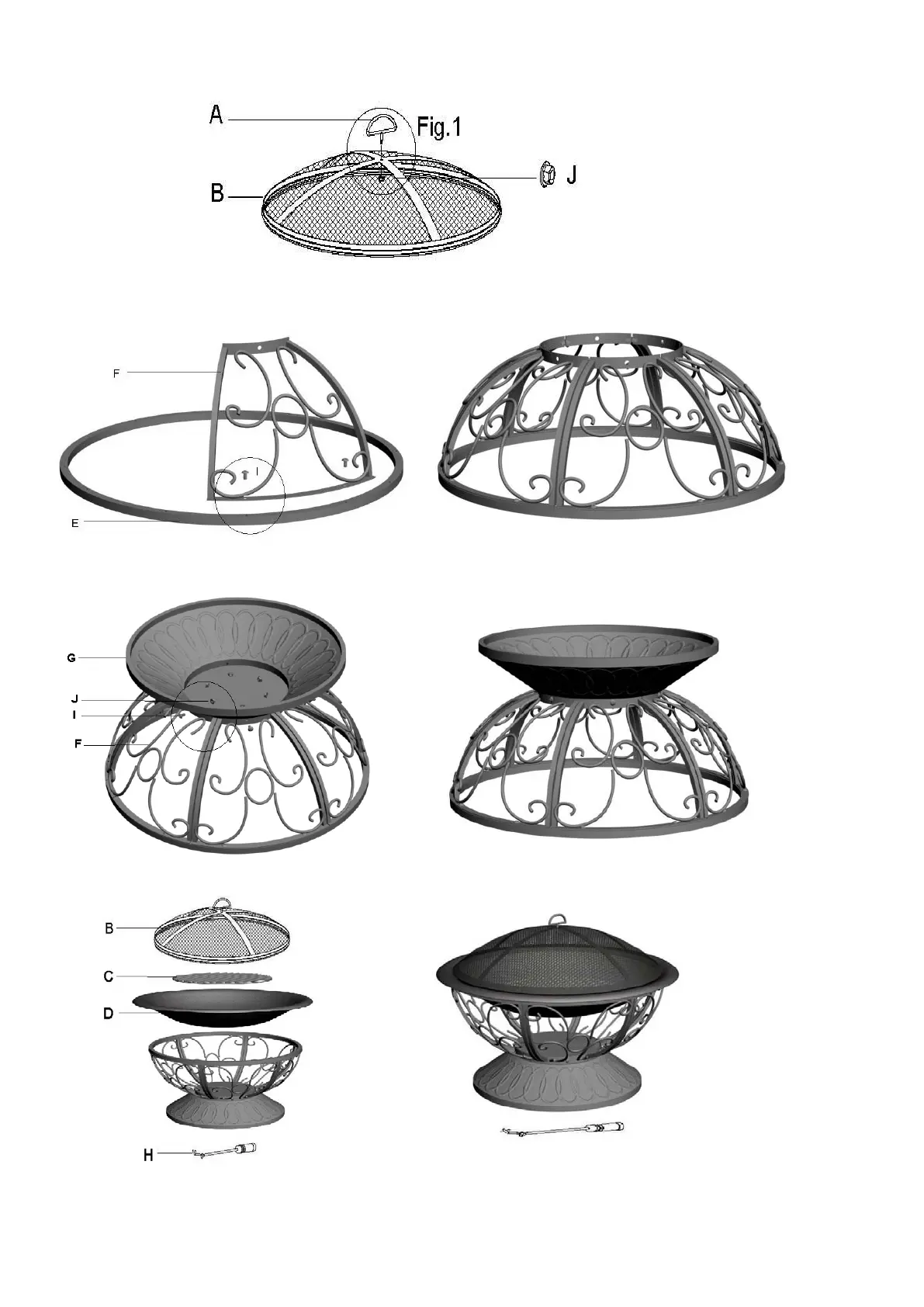

Step 1: Attach Lift Handle (A) to Screen (B); tighten with Nut M6 (J), as per Fig. 1
Ste
p 2: Attach Frame Ring (E) to
Decorative Frame (F) using Bolts (I). Do not fully tighten the bolts.
Step 3: Connect Base (G) to Decorative Frame (F) using Bolts (I) and Nut (J). Fully tighten all bolts.
Step 4: Place D, C, and B on the assembled frame. The firepit is now ready for use.
