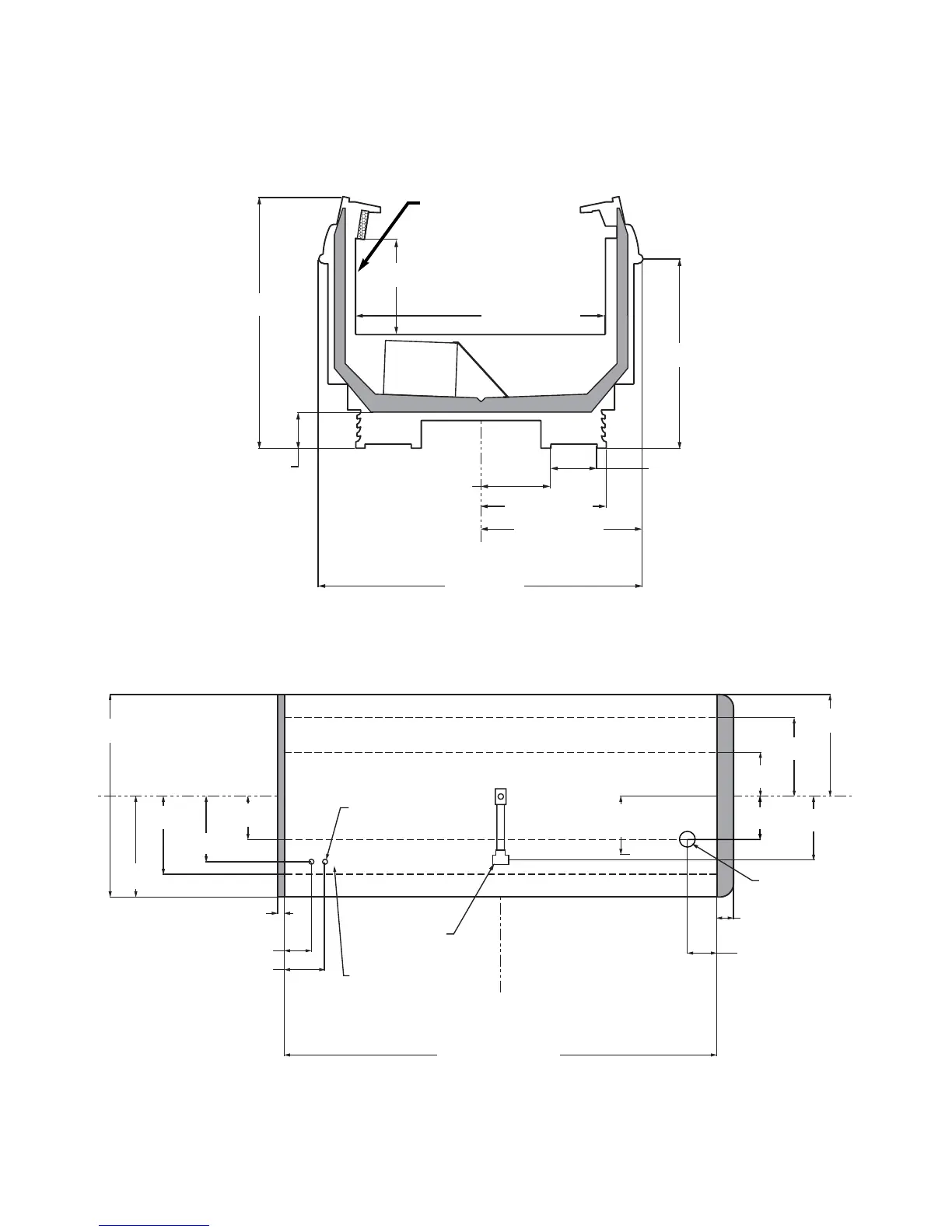

34 15/16 in
[88.8 cm]
5 in [12.7 cm]
COIL
PLENUM
13 3/8 in
[34.0 cm]
34 11/16 in [88.1 cm]
FRONT OF CASE
26 15/16 in
[66.9 cm]
6 7/16 in [16.3 cm]*
9 11/16 in [24.6 cm]
17 3/8 in [44.2 cm]
22 1/2 in [57.1 cm]
45 in [114.3 cm]
C
L
C
L
C
L
45 in
[114.2 cm]
22 1/2 in
[57.1 cm]
17 3/8 in
[44.1 cm]
14 5/8 in
[37.1 cm]
9 11/16 in
[24.6 cm]
1 1/2 in [3.8 cm]
{FLAT END}
6 in [15.2 cm]
9 in [22.9 cm]
ELECTRICAL
WIRING-TO-RACEWAY
(STANDARD)
1 1/2" PVC DRAIN
CONNECTION
FRONT OF CASE
12 15/16 in
[32.9 cm]
**
22 1/2 in
[57.1 cm]
17 3/8 in
[44.1 cm]
9 11/16 in
[24.6 cm]
14 1/4 in
[36.1 cm]
REFRIGERATION
6 1/2 in [16.5 cm]
3 11/16 in [9.4 cm]
{WRAP END}
NOTES:
* STUB-UP AREA
** RECOMMENDED STUB-UP CENTERLINE FOR ELECTRICAL AND HUB DRAINS
z SUCTION LINE - 7/8", LIQUID LINE - 1/2"
72 in [182.9 cm] {6' case}
96 in [243.8 cm] {8' case}
120 in [304.8 cm] {10' case}
144 in [365.8 cm] {12' case}
C
L
9 5/8 in
[24.4 cm]
To Next Page
