Hill-Rom Likorall 200 User Manual

3EN200405 Rev. 9 35 www.liko.com
Strap Stop
Bandstopp
Assembly Instruction
Monteringsanvisning
Prod. No. 31290057
3SE640287-03
2011-07-06
© Copyright Liko AB
www.liko.com
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts.
5.203.1
Contains: Qty:
Strapstop 1 Grey LR24 1
Strapstop 2 Grey LR24 1
Screw MC6S M5x16 2
Fits:
Likorall 240 / 240 R2R
Likorall 242 / 242 R2R
Likorall 242ES / 242ES R2R
Likorall 242S / 242S R2R
Strap Stop
Bandstopp
Assembly Instruction
Monteringsanvisning
Prod. No. 31290057
3SE640287-01
2007-11-20
© Copyright Liko AB
www.liko.com
CM
4 mm
Tools required:

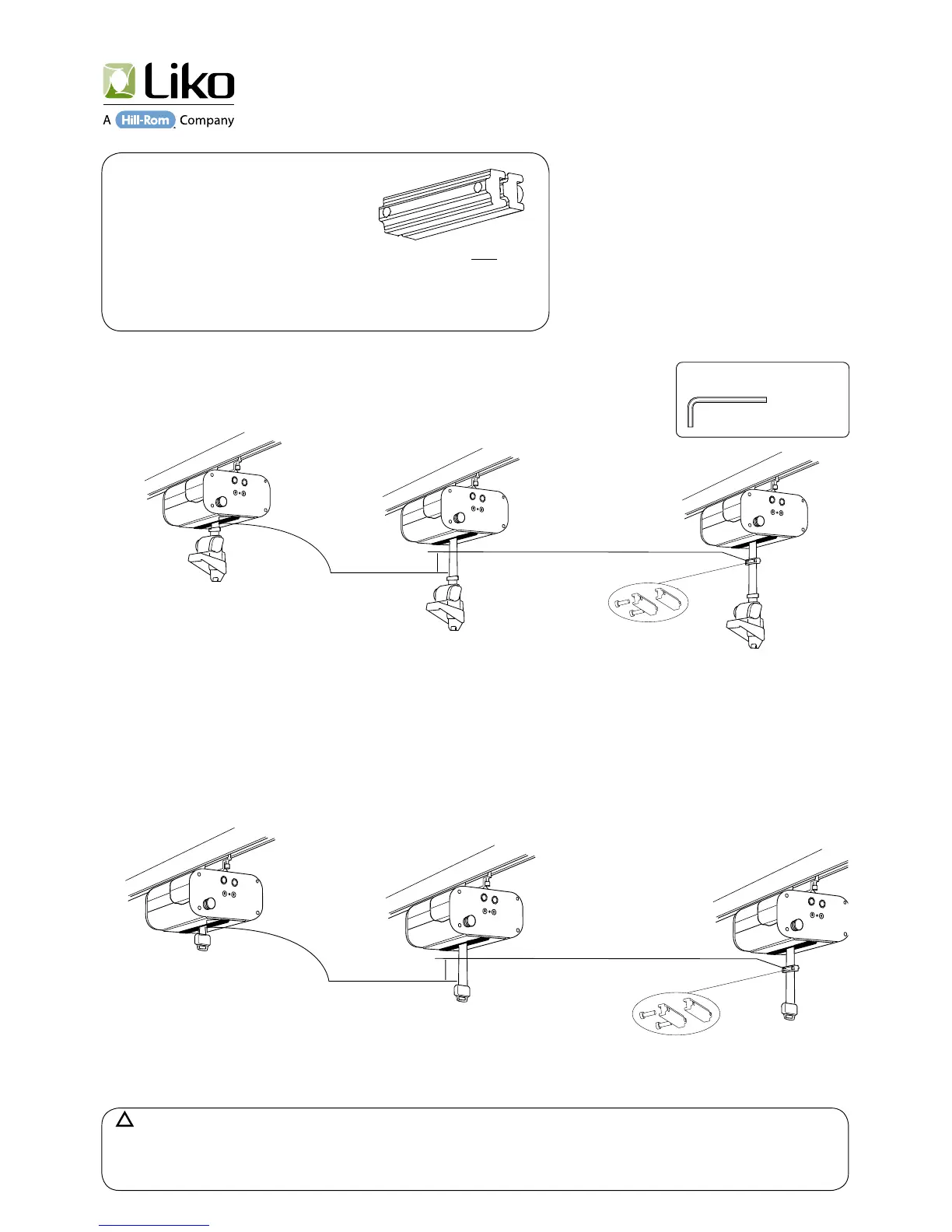

1.Drive the strap to the highest position.
After changing strapstop the lift must be tested with maximum load.
Check squeeze protection .
2. Feed out the liftstrap10 cm.
2. Mount the strapstop
10 cm above the stop mark.
1.Drive the strap to the highest posi-
tion.
3. Mount the strapstop
10 cm above the stop mark.
Likorall 242 ES R2R,242 S R2R
Likorall 242 ES,242 S
CM
2003-09-09
5.203.1
Strap Stop
Bandstopp
Assembly Instruction
Monteringsanvisning
Prod. No. 31290057
3SE640287-01
2007-11-20
© Copyright Liko AB
www.liko.com
CM
4 mm
Tools required:
1.Drive the strap to the highest position.
After changing strapstop the lift must be tested with maximum load.
Check squeeze protection .
2. Feed out the liftstrap10 cm.
2. Mount the strapstop
10 cm above the stop mark.
1.Drive the strap to the highest posi-
tion.
3. Mount the strapstop
10 cm above the stop mark.
Likorall 242 ES R2R,242 S R2R
Likorall 242 ES,242 S
CM
2003-09-09
5.203.1
From fall 2011: New grey version
5.203
