Hiniker 6000 - Telescoping Rear Hitch (For Single Lift Assist)

Page 9
SERIES 6000 ROW CULTIVATOR
11/10
S
E
C
5

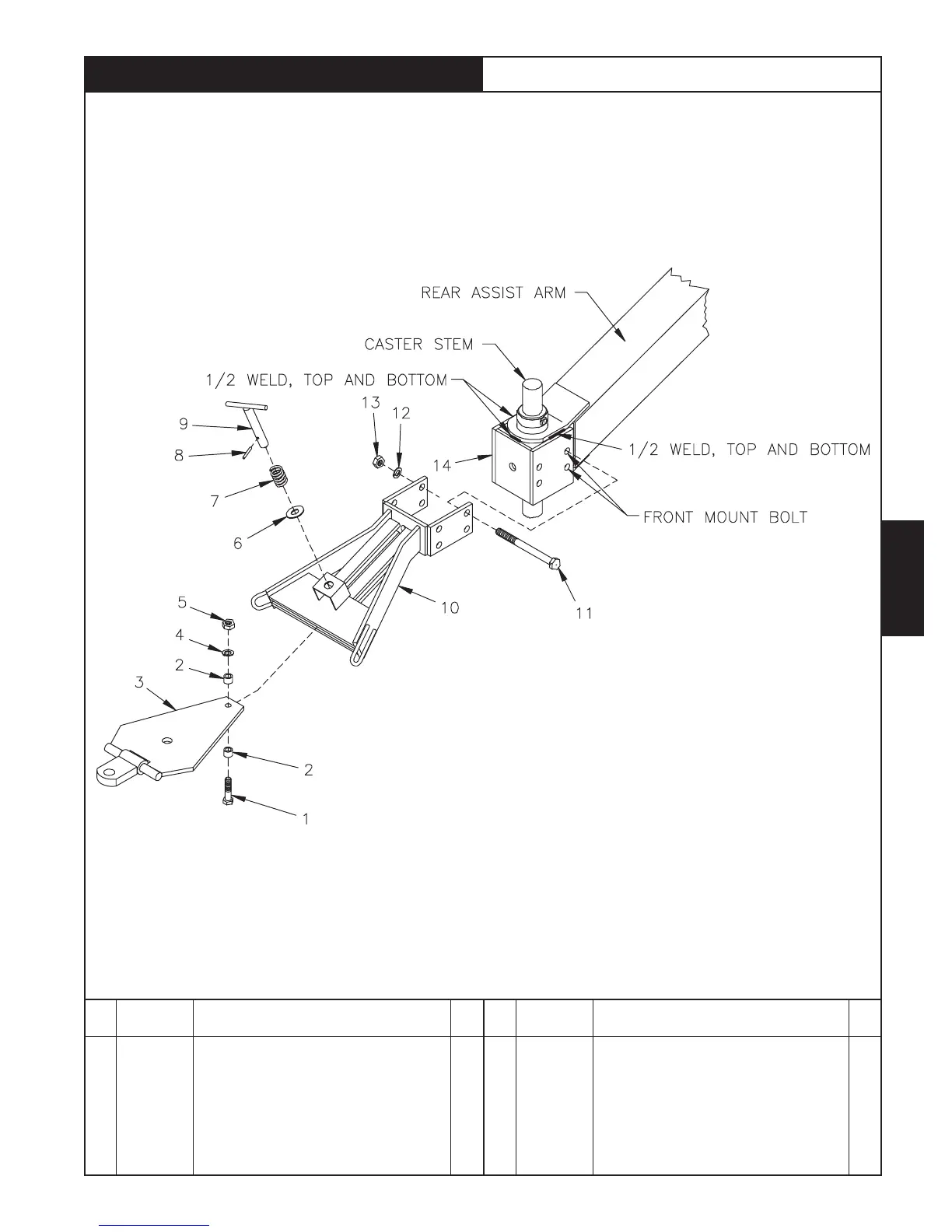

TELESCOPING REAR HITCH (FOR SINGLE LIFT ASSIST)
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
1
2
3
4
5
6
7
8
950-001-141
810-001-526
810-001-518
952-001-005
951-001-008
952-002-010
810-001-527
953-003-003
Hex Head Cap Screw 5/8-11 x 3
Collar
Hitch Plate Weldment
Lock Washer 5/8 Inch
Hex Nut 5/8-11
Flat Washer 1 Inch
Spring
Spring Pin 1/4 x 1 3/4
1
2
1
1
1
1
1
1
9
10
11
12
13
14
810-001-522
810-001-580
950-001-151
952-001-006
951-001-009
810-001-578
6314
Handle Weldment
Anhydrous Hitch Weldment
Hex Head Cap Screw 3/4-10 x 9 Gr. 5
Lock Washer 3/4 Inch
Hex Nut 3/4-10
Mount Weldment
Complete Anhydrous Hitch Assembly
1
1
4
4
4
1
DWG. NO. 1051
