SERIES 6000 ROW CULTIVATOR
11/10
S
E
C
5

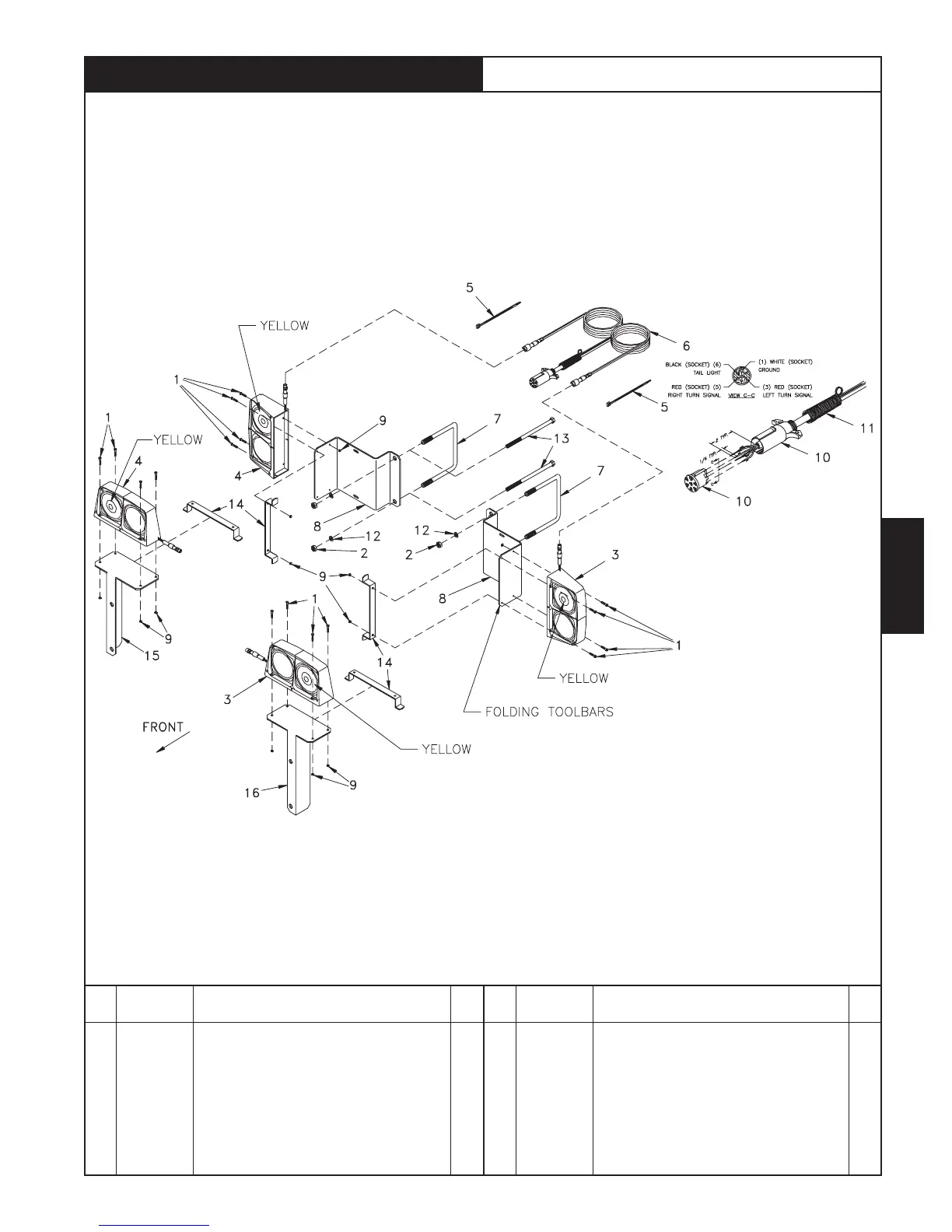

WARNING LIGHT KIT
6000 ROW CROP CULTIVATOR
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
REF.
NO.
PART
NUMBER
DESCRIPTION QTY.
1
2
3
4
5
6
7
8
9
031-06007
951-001-230
36100000
36100001
921-001-145
38809029
81003020
81003404
034-05150
Hex Head Cap Screw 1/4 x 1 1/4 Gr. 5
Hex Nut 5/8-16
Implement Light LH Assembly
Implement Light RH Assembly
Black Cable Tie 21 Inches
Cultivator Lighting Harness 16’ (Includes 10 & 11)
5/8 U-Bolt 7 5/8 Center
Warning Light Bracket
Stover Lock Nut 1/4
8
4
1
1
16
1
2
2
8
10
11
12
13
14
15
16
17
38450002
38400004
952-001-005
950-001-230
624960
81003527
81003528
81003529
Connector Plug 7 Pin
Strain Relief Spring
Lock Washer 5/8 Inch
Hex Head Cap Screw 5/8-16 x 9 1/2 Gr. 5
Cord Carrier
RH Warning Light Bracket
LH Warning Light Bracket
Instruction Warning Lights (Not Shown)
1
1
8
4
2
1
1
1
DWG. NO. 3601
