5 - 2 - 7
KK-XZU215C
4) PTO Installation Procedure
(1) Drain the transmission oil.
(Do not remove the drain plug while the oil is hot, or you will
scaled yourself.)
(2) Remove the PTO cover which is at the left of the transmission.
( Do not reuse the bolts and gasket that you remove at this
time.)
(3) Clean the PTO mounting surface on the transmission side.
(4) Prepare the necessary parts, referring to paragraph "3")
(5) Install the stud bolts to the PTO mounting of the transmission
case.

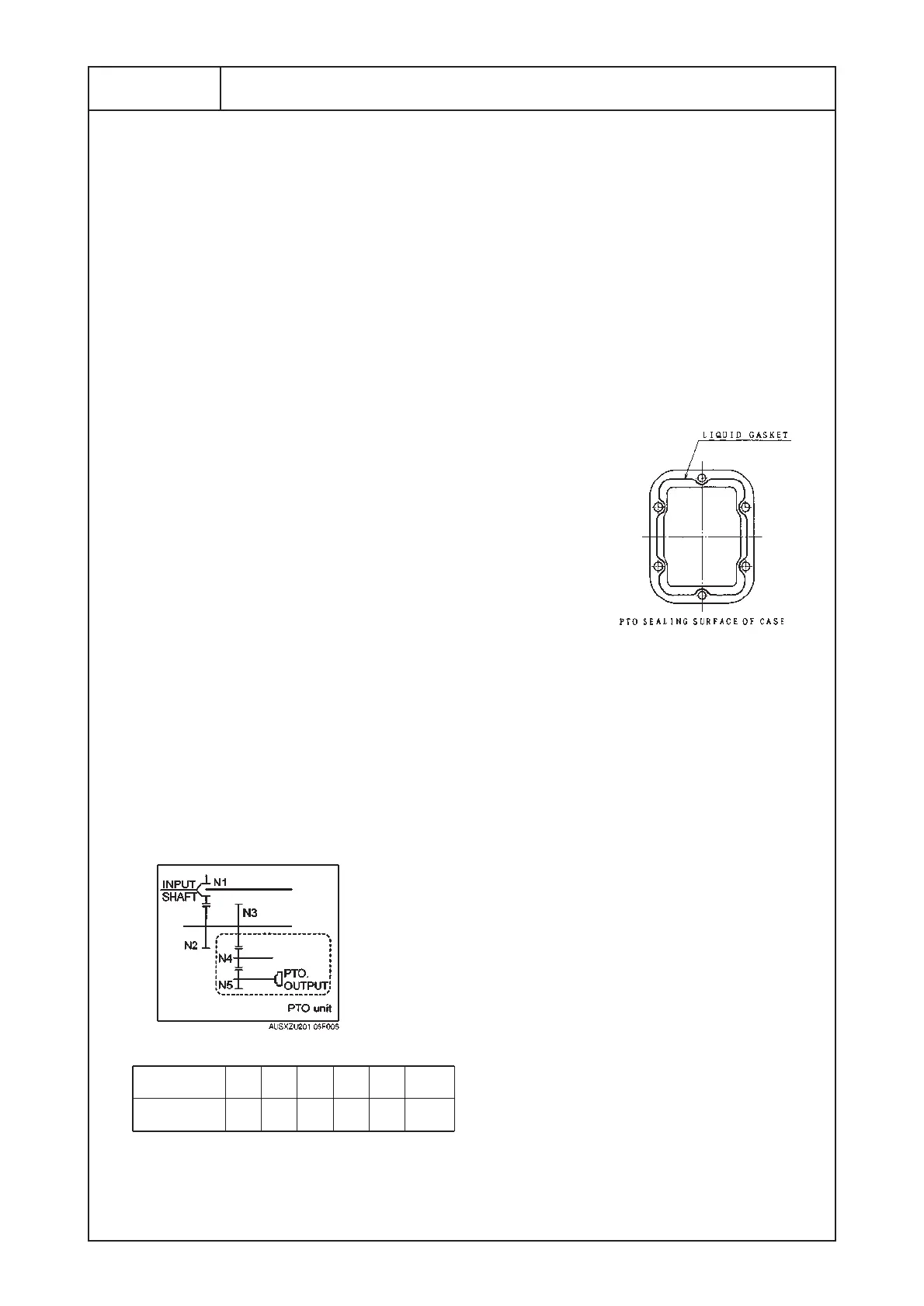

(6) Apply liquid gasket 'THREEBOND
1215' or 'LOCKTITE 5127
(FMD-127)' to PTO sealing surface
of transmission case as shown.
Appling methods
1) Remove moisture and oils from
sealing surface before appling.
2) Dia of liquid gasket is 2 min.
3) Liquid gasket bead must be
continued all round.
(7) Fit the PTO on the PTO mounting position and tighten
nuts.
Tightening torque for nuts : 36.3N·m {370kgf·cm}
(8) After attaching the PTO, turn the output shaft coupling a few
revolutions to be sure that it turns freely.
(9) When you refill the transmission oil, increase the amount by
0.3 liters to allow for the PTO.
5) Gear Layout and Gear Ratio
Gear ratio : i =N2/N1xN4/N3xN5/N4
[NOTES]
1. Number of revolutions of PTO output shaft
= number of revolutions of engine x1/ i
2. The PTO output shaft turns in the opposite direction to the engine.
