DEF SCR SYSTEM (DCU) 5–11

2. CONNECT THE PC DIAGNOSIS TOOL

(1) Set the starter switch to the “LOCK” position.

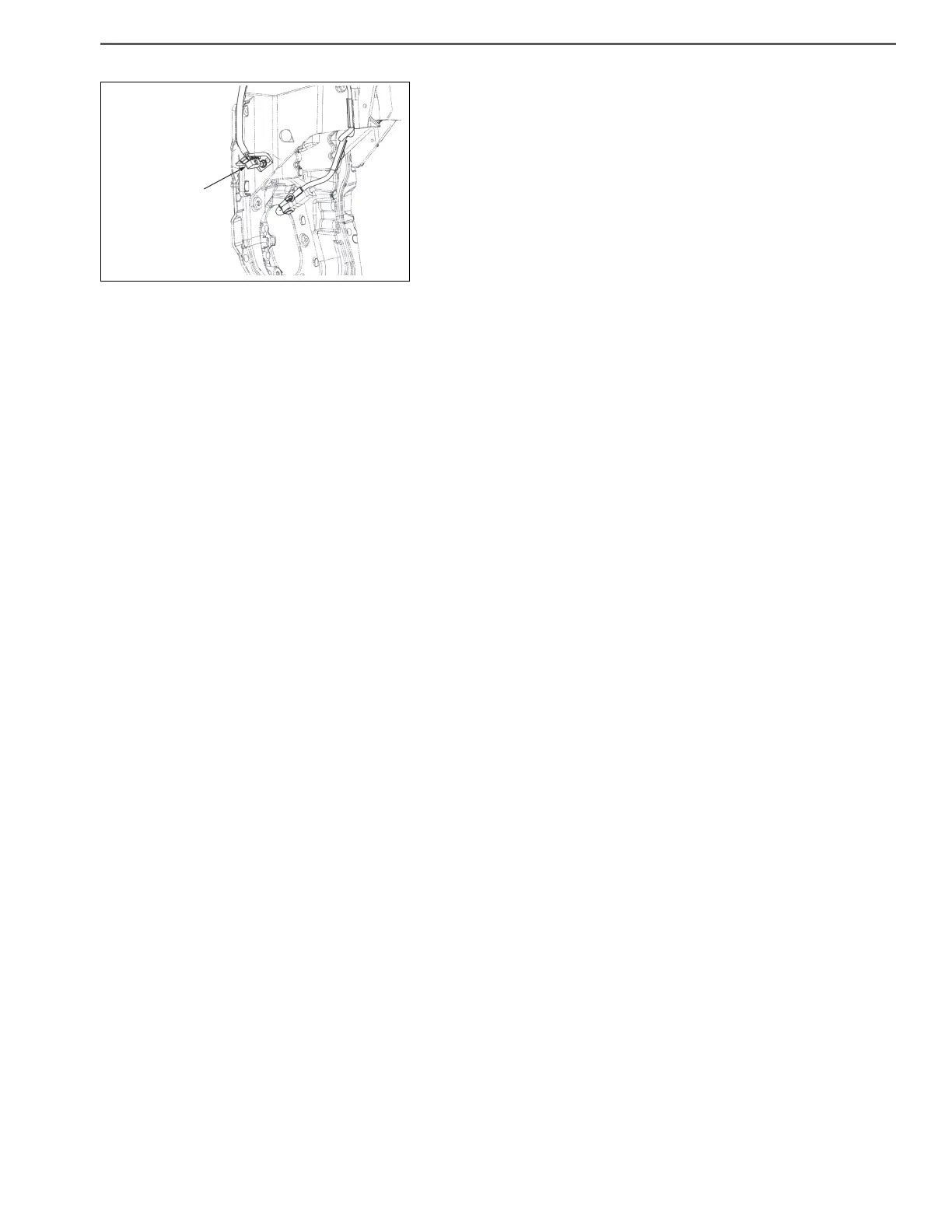

(2) Connect the PC DIAGNOSIS TOOL to the diagnosis connector on

the left side of steering column.

PC diagnosis

connector

SAPH16F020400012
