PARKING BRAKE (BOSCH 12") BR07–15

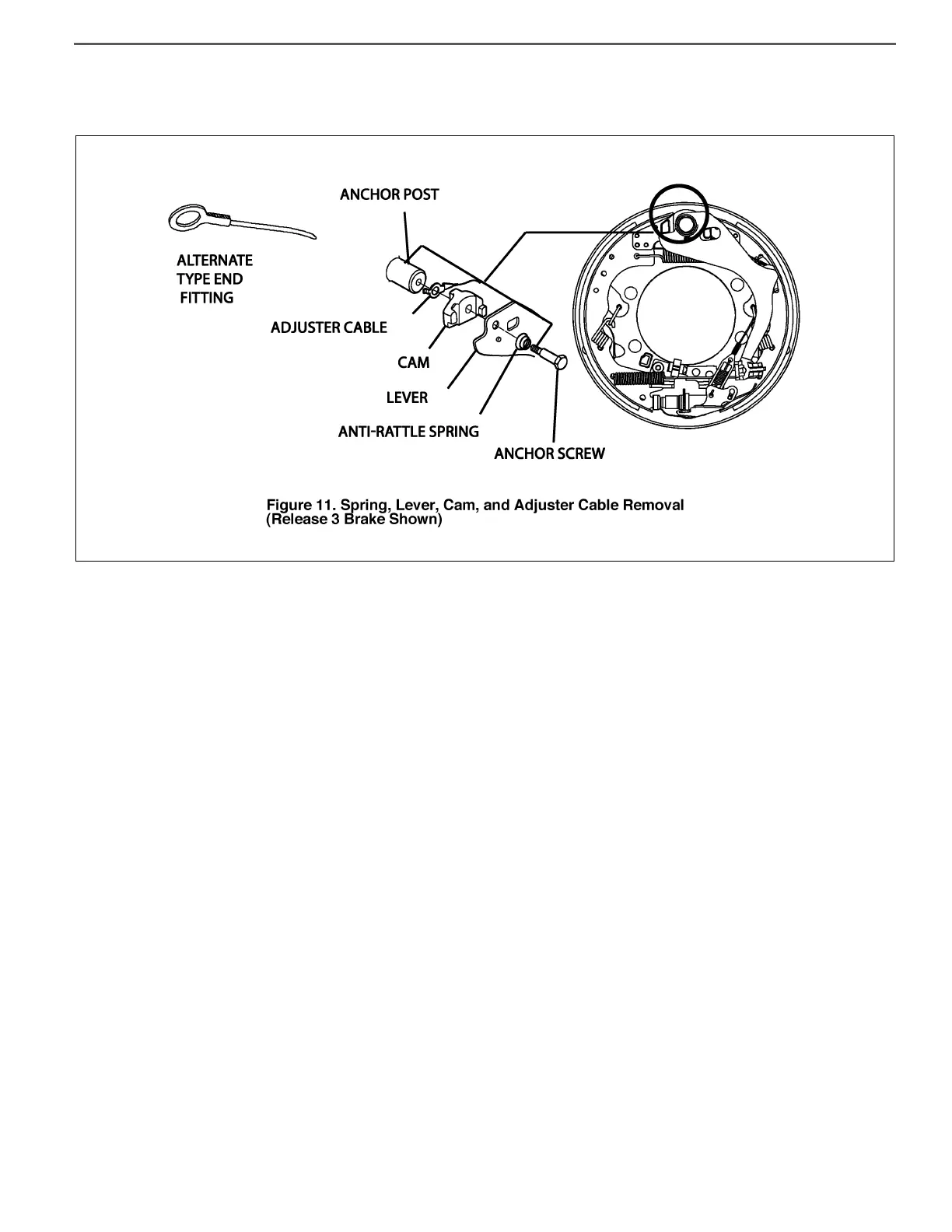

(9) Remove the flat washers (if installed on your application for Release 1
level brake), anti-rattle spring, lever, cam, and adjuster cable. See Fig-
ure 11.
2. INSTALLING COMPONENTS
NOTICE
If for any reason the cam, lever, and anchor screw is removed, a com-
plete new set is recommended for service.
(1) Remove the cured thread-locking compound from the anchor post
hole threads. Run the appropriate size tap completely into the anchor
post and back out to clean the threads. Remove loose debris from
anchor post hole.
NOTICE
For brakes with a hex socket head anchor screw, use an M10 x 1.5 tap
(brakes manufactured prior to April 2002). For brakes with an external
hex head anchor screw, use and M12 x 1.75 tap (brakes manufactured
after April 2002).
(2) Apply Chevron heavy duty lithium complex extreme pressure grease,
or equivalent, to the cam plate lugs where they contact the shoes and
the apply lever, to the cam plate slotted hole and top and bottom
faces. Apply grease to the brake lever pivot hole and the contact sur-
faces with the cam plate lugs. Apply grease to the non-threaded por-
tion of the anchor screw. Do not get grease on anchor screw threads
or in anchor post threaded hole.
