HIOS BLT-AY-71 - Exterior Drawings

- 7 -
7.5

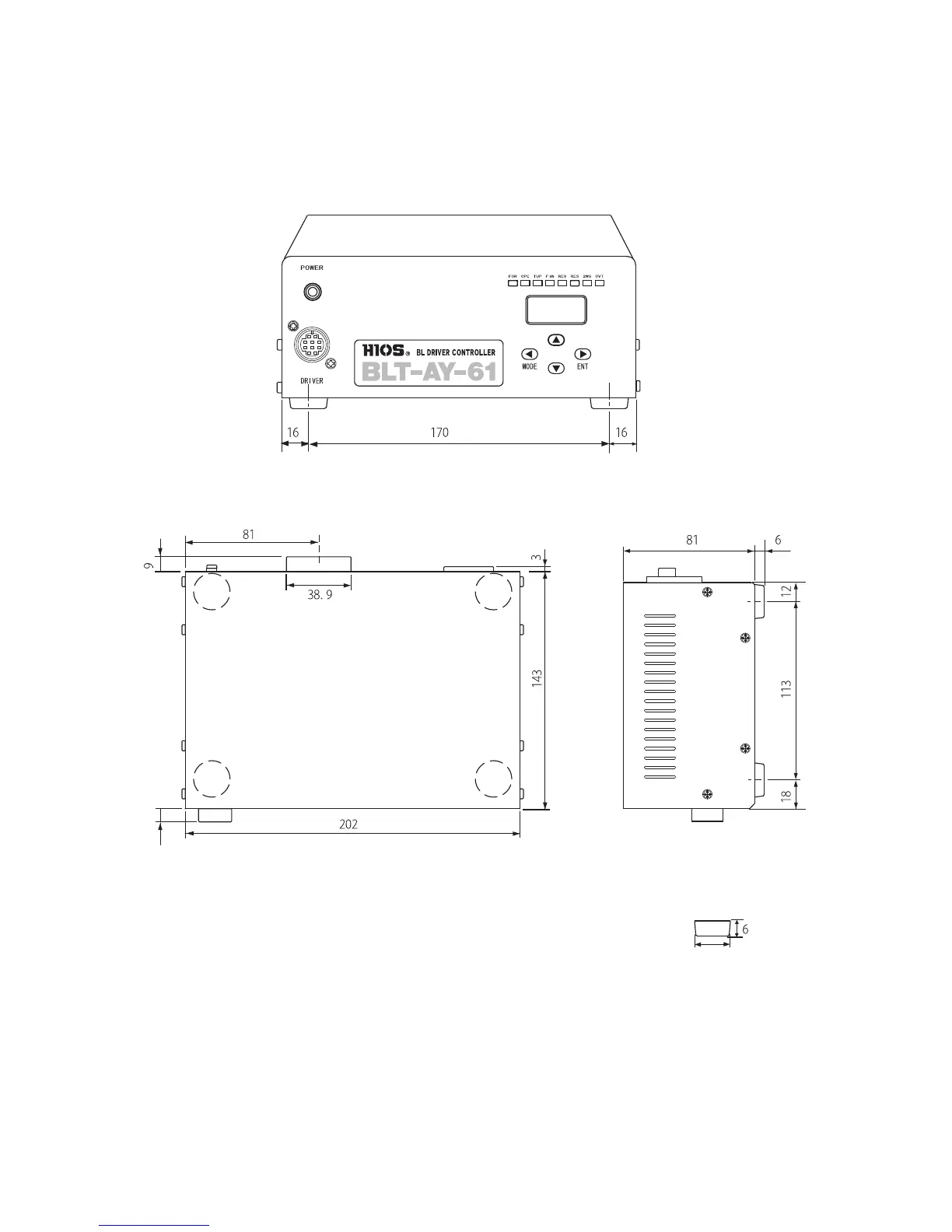

■ Exterior Drawings
BLT-AY-61 and BLT-AY-71 have common exterior drawings.
FrontFront
(Caution) The above exterior drawing of the power supply for brushless screwdrivers Not to
scale.
(Front View)
(Overhead View)
Input terminal block
(Right Side View)
Footing size 4-
∅
22
Unit: mm
