Hisense 32H5B - Attach Wall Mount Bracket

Page 5
Attach the Wall Mount Bracket (not included)
Before you begin the third-party manufacturer instructions, be
sure to do the following things:
1. Remove the TV stand if you already attached it.
2. Place the TV face down on a clean, safe and cushioned
surface.
3. Place the spacers (not included) in the corresponding bracket
holes.
CAUTION:
• When youattachthemount,besuretousethespacers
(providedbythethird-partymanufacturer)betweentheTV
and the bracket.
• TopreventinternaldamagetotheTVandensureitis
mountedsecurely,besuretousefixingscrews(not
provided) that are 8 - 9.5 mm(32"/40") / 9.5 - 11.5 mm(50")
in length when measured from the attaching surface of the
mounting hook.
Wall-mount hole pattern
VESA (mm)
100 × 100 (for 32"/40")
200 × 400 (for 50")
Wall-mount screw size (mm)
M4(32"/40")
M6(50")
Follow instructions provided with the Wall-Mount bracket.
If you are not sure of your ability to complete the installation,
then contact the wall-mount manufacturer or the retailer from
which you purchased the TV.
The selected screws are 8 - 9.5 mm(32"/40") / 9.5 - 11.5 mm
(50")in length when measured from the attaching surface of
the rear TV cover. The diameter and length of the screws differ
depending on the Wall-Mount Bracket model.
NOTE: The diameter and length of the screws differ
depending on the wall mount bracket model.

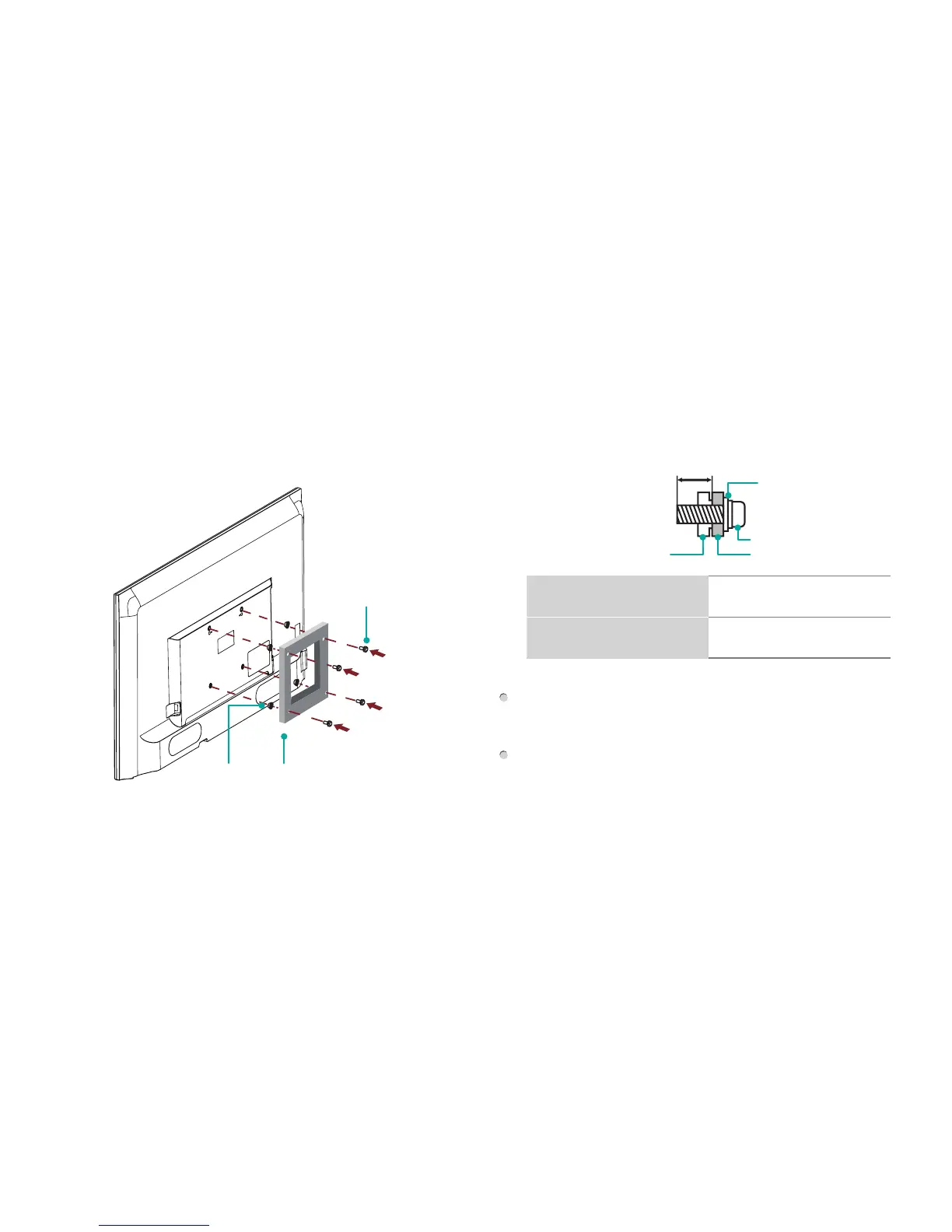

Rear cover of the TV Spacer
Screw
Wall-mount bracket
8 - 9.5 mm(32"/40")
9.5 - 11.5 mm(50")
Screw
(not provided)
Bracket
(not provided)
Spacer
(not provided)
