- 12 -

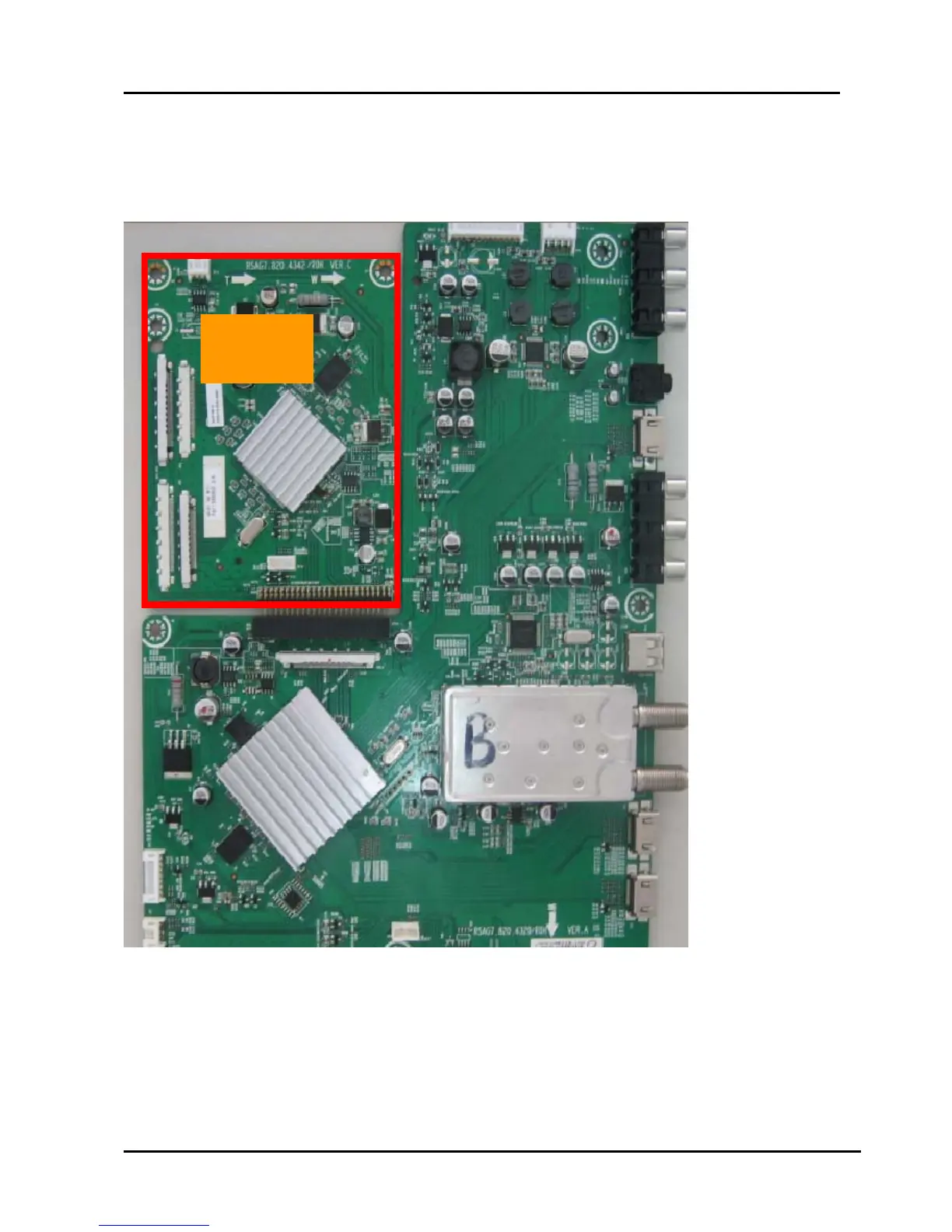

Board 2: (Panel have 120HZ refurbish ratio)
Note
The above Main board imagesare reference only, different models refer to the actual
units to determine the boards.
LVDS Board
(120HZ)
