8

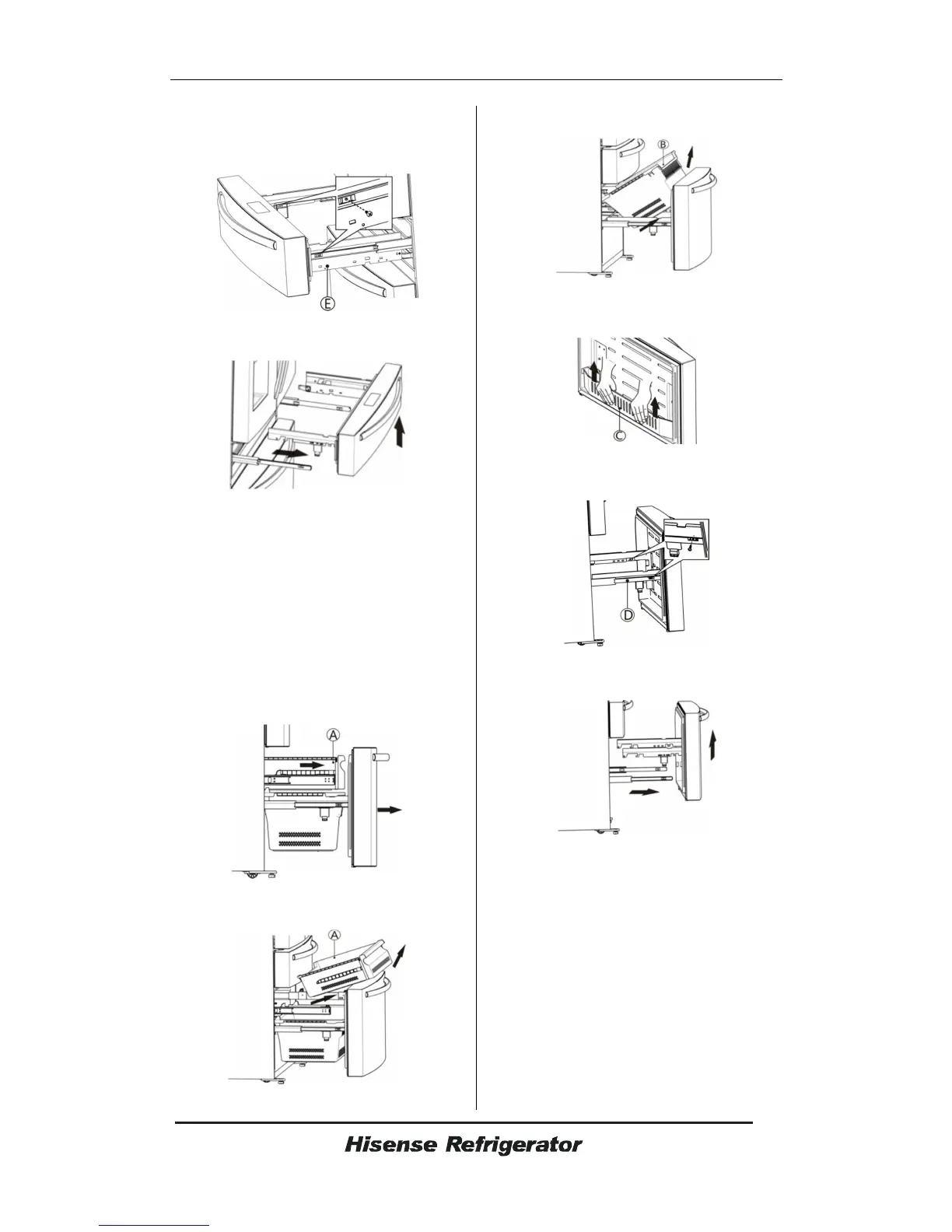

4. Remove the 2 screws attached to the
supporting frame (E) with a Philips
screwdriver (+).
5. Pull out the My Fresh Choice door and
lift it up in the direction of the arrow.
Re-assembling My Fresh Choice door
To reattach My Fresh Choice door,
assemble parts in reverse order.
Note:
îBe sure to connect the variation door
wire connector (E). If it is not connected,
My Fresh Choice room does not work.
Disassembling the freezer door
1. Pull out the freezer door and the upper
freezer drawer (A) to the final position.
2. Take out the upper freezer drawer (A)
by lifting it up in the direction of the arrow.
3. Take out the lower freezer drawer (B) by
lifting it up from the rail system.
4. Remove the Pizza basket (C) by lifting it
up.
5. Remove the 2 screws attached to the
supporting frame (D).
6. Pull out the freezer door and lift it up in
the direction of the arrow.
Re-assembling the freezer door
To reattach the drawer after you moved
the appliance to its final location,
assembling the parts in reverse order.
Installing the water lines
A water dispenser with a filter is one of the
helpful features on your new appliance. To
help promote better health, the water filter
removes unwanted particles from your
water. However, it does not sterilize or
destroy microorganisms. You may need to
