CHASSIS

- 210-

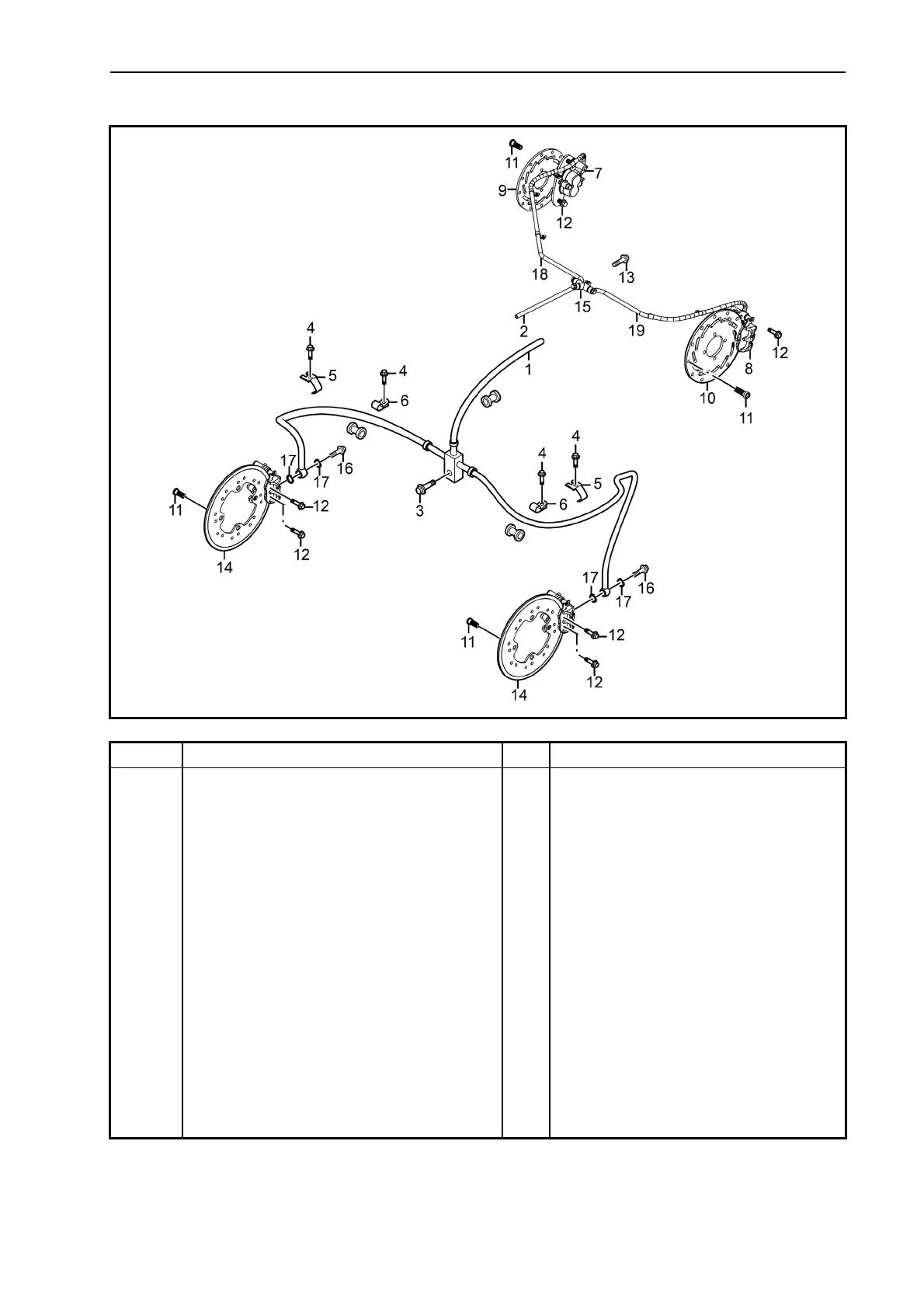

DISK BRAKE COMPONENTS

No. Part Name Qty Remarks

Removing disk brake components

1 Front brake hose 1

2 Rear brake hose 1

3 Hexagon flange bolt M6×25 1

4 Hexagon flange bolt M6×12 5

5 Oil pipe clip, front disc brake 2

6 Clip, oil pipe 3

7 Rear right brake caliper 1

8 Rear left brake caliper 1

9 Rear right brake plate 1

10 Rear left brake plate 1

11 Hexagon step bolt M8×20 16

12 Bolt M10×1.25×22 8

13 Hexagon flange bolt M6×30 1
