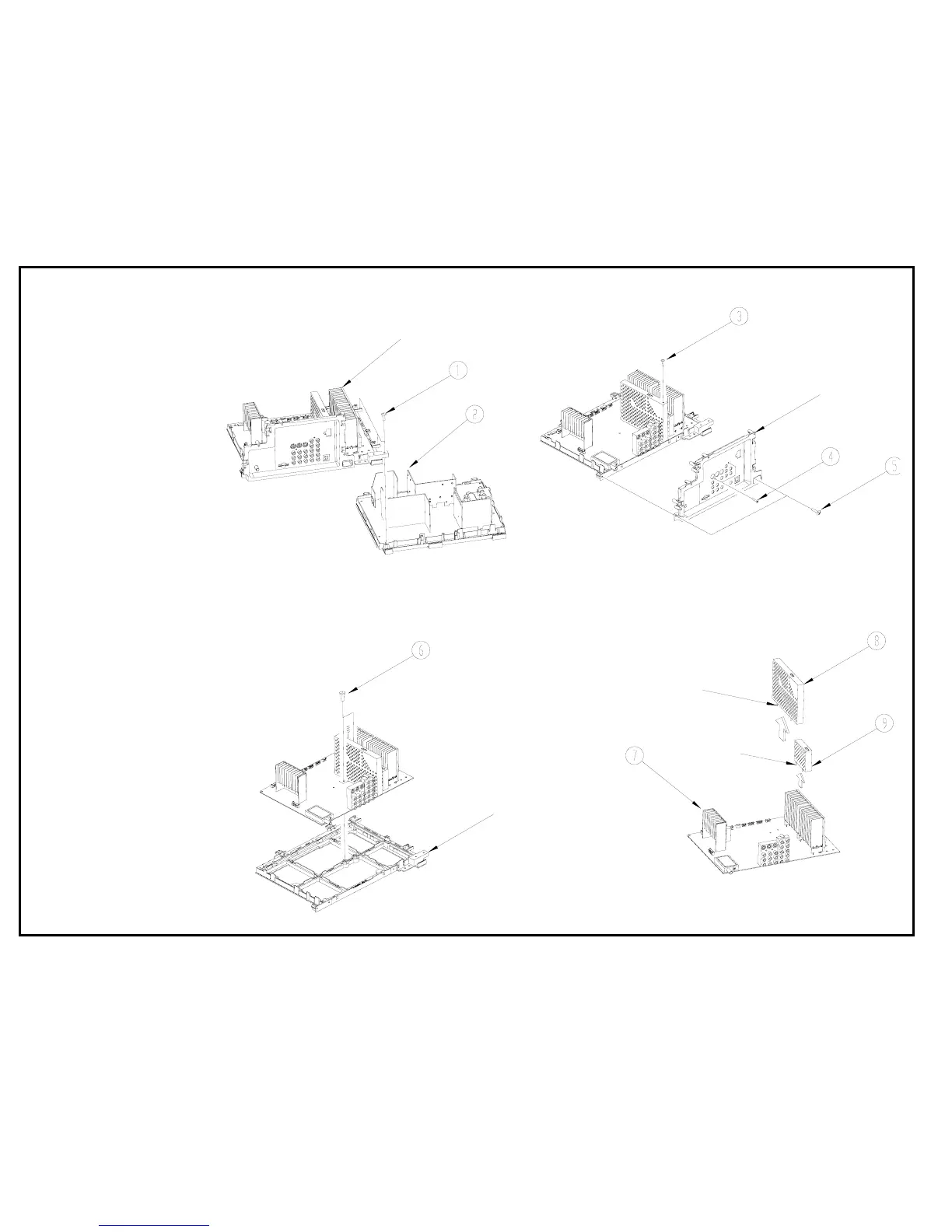

CHASSIS ASSY
① Screw T2B 3*16 P#MJ03459(3 Pcs.)
② Deflection PWB Assy P#
TBD (DP65)
P#
TBD (DP65G)
③ Screw M3E 3*10 P#MJ03466
④ Screw T2B 3*12 P#MJ03551(2 Pcs.)
⑤ Screw T2B 3*12 P#MJ03551(2 Pcs.)
⑥ Screw T2B 3*12 P#MJ03551(2 Pcs.)
⑦ Signal PWB Assy P#
TBD
⑧ Digital PWB Assy P#
TBD
⑨ DCU PWB Assy P#
JT25571
SIGNAL BLOCK ASSY
TERMINAL HOLDER
PLASTIC FRAME
DESOLDER AND
UNTWIST(4 POINTS)
DESOLDER AND
UNTWIST(4 POINTS)
