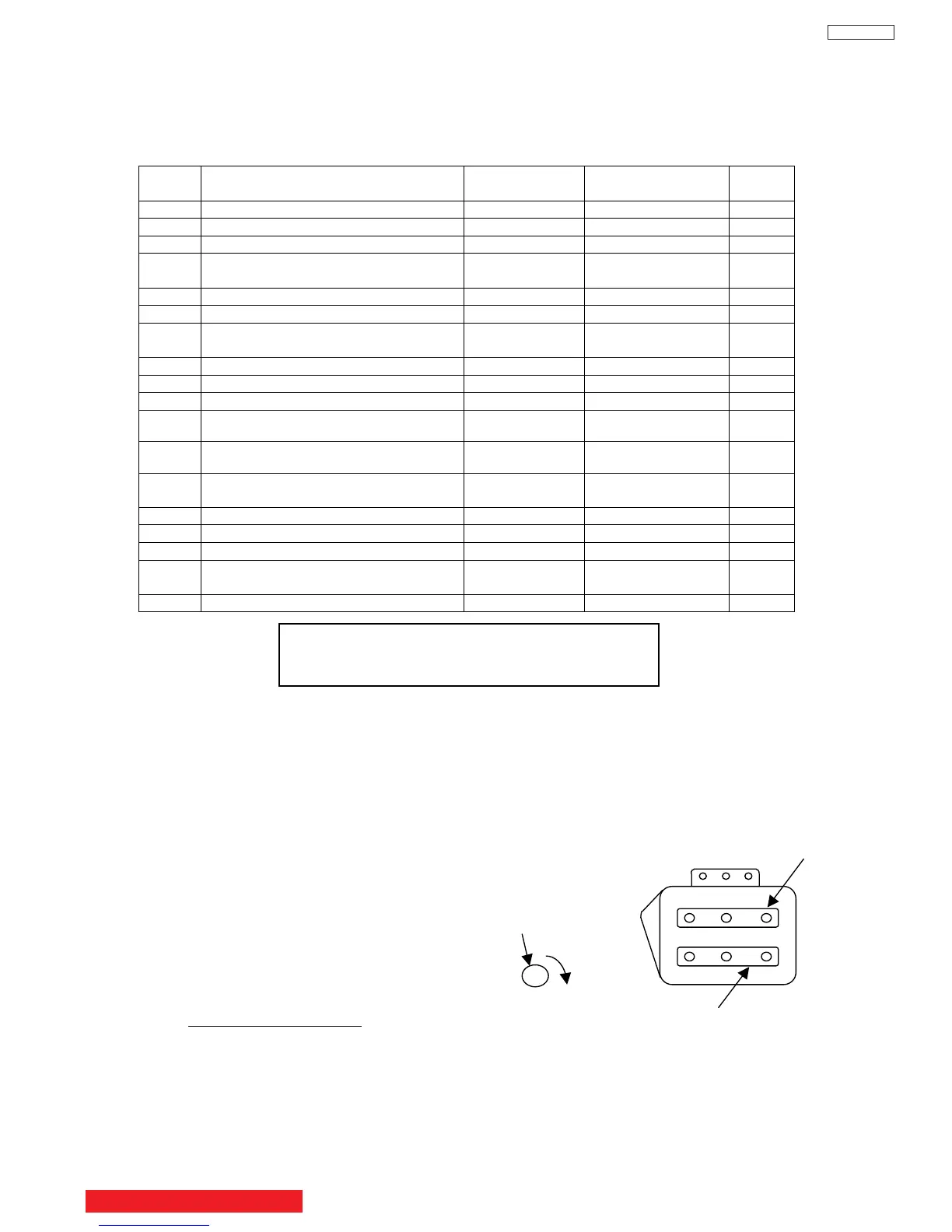

2.0 FINAL ADJUSTMENT ORDER FOR SERVICE
PRE HEAT RUN CONDITION
PRESET EACH VR LOCATION AS FOLLOWS:
BEFORE PRE HEAT-RUN.
(1) SCREEN VR ON FOCUS PACK.
Cut off adjustment should be coarse adjusted
(2) FOCUS VR ON FOCUS PACK.
<PRE SET> clockwise fully.
*PRE HEAT RUN TIME
More than 30 min.
If Current cannot be applied this spec, Pre Heat Run should be applied as long as
possible .
ORDER ADJUSTMENT ITEM ASPECT MODE SIGNAL DCU
DATA
1 CUT OFF 16:9 Standard NTSC Signal
2 PREFOCUS 16:9 Standard Crosshatch
3 DCU PHASE DATA SETTING 16:9 Standard NTSC Signal-DCU
4 HORIZONTAL POSITION
ADJUSTMENT (COARSE)
16:9 Standard Circle Pattern
5 RASTER TILT 16:9 Standard NTSC Signal-DCU CLEAR
6 BEAM ALIGNMENT 16:9 Standard Crosshatch CLEAR
7 RASTER POSITION 16:9 Standard Circle Pattern -DC
U
CLEAR
8 VERTICAL SIZE ADJUSTMENT 16:9 Standard NTSC Signal-DCU CLEAR
9 HORIZONTAL SIZE ADJUSTMEMT 16:9 Standard NTSC Signal-DCU CLEAR
10 BEAM FORM 4:3 Standard Crosshatch
11 LENS FOCUS ADJUSTMENT 16:9 Standard Crosshatch
1080i circle pattern
12 STATIC FOCUS ADJUSTMENT 16:9 Standard Crosshatch
1080i circle pattern
13 CONVERGENCE ADJUSTMENT BY
Remote Control
16:9 Standard NTSC Signal-DCU
14 BLUE DEFOCUS 16:9 Standard Crosshatch
15 WHITE BALANCE ADJUSTMENT 16:9 Standard White Raster
16 SUB BRIGHTNESS ADJUSTMENT 16:9 Standard 7 step gray scale
17 HORIZONTAL POSITION
ADJUSTMENT
16:9 Standard Circle Pattern
18 MAGIC FOCUS INITIALIZE 16:9 Standard NTSC Signal-DCU
R G B
R G B
<Focus Pack>
Screen VR
Focus VR
Focus VR
Do not use Crosshatch for convergence
djustment if the signal is NTSC progressive mode
31
DP65
