DP65

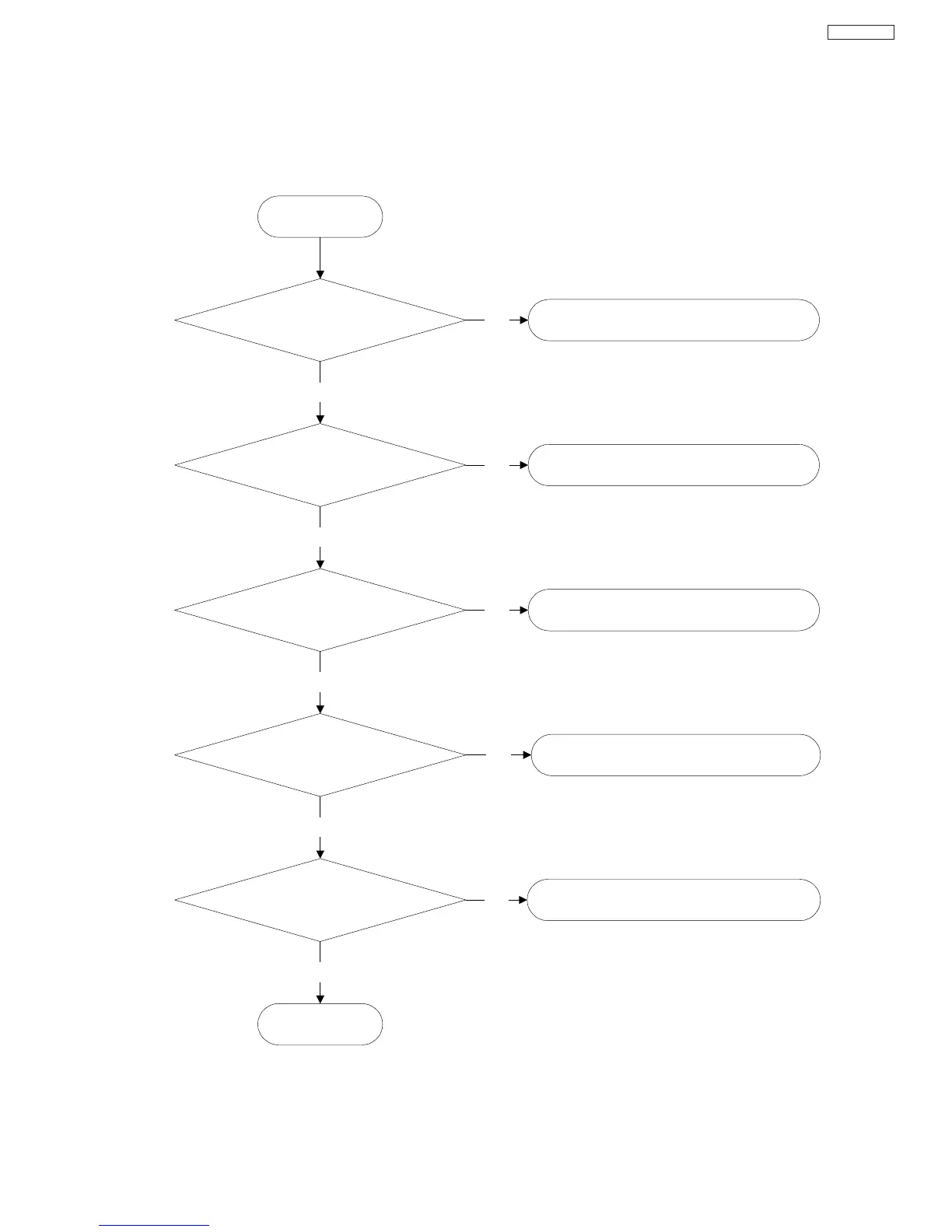

(2) No HDMI analog and/or digital audio
Ensure audio signal at
pin 6 and 10 of IJ04.
IJ04 defect.
Ensure digital signal at
pin 84, 85, 86 and 88 of IJ01.
IJ01 defect
Signal PWB defect.
Start
Ensure power at pin 1 of IR03
and pin 9 and 14 of IJ04.
SIgnal PWB or Signal Power PWB defect.
Ensure power at pin 8 of IR03. IR03 defect.
NG
OK
NG
OK
Ensure power at pin 4 of IJ03. IJ03 defect.NG
OK
OK
NG
NG
OK
To Next Page
