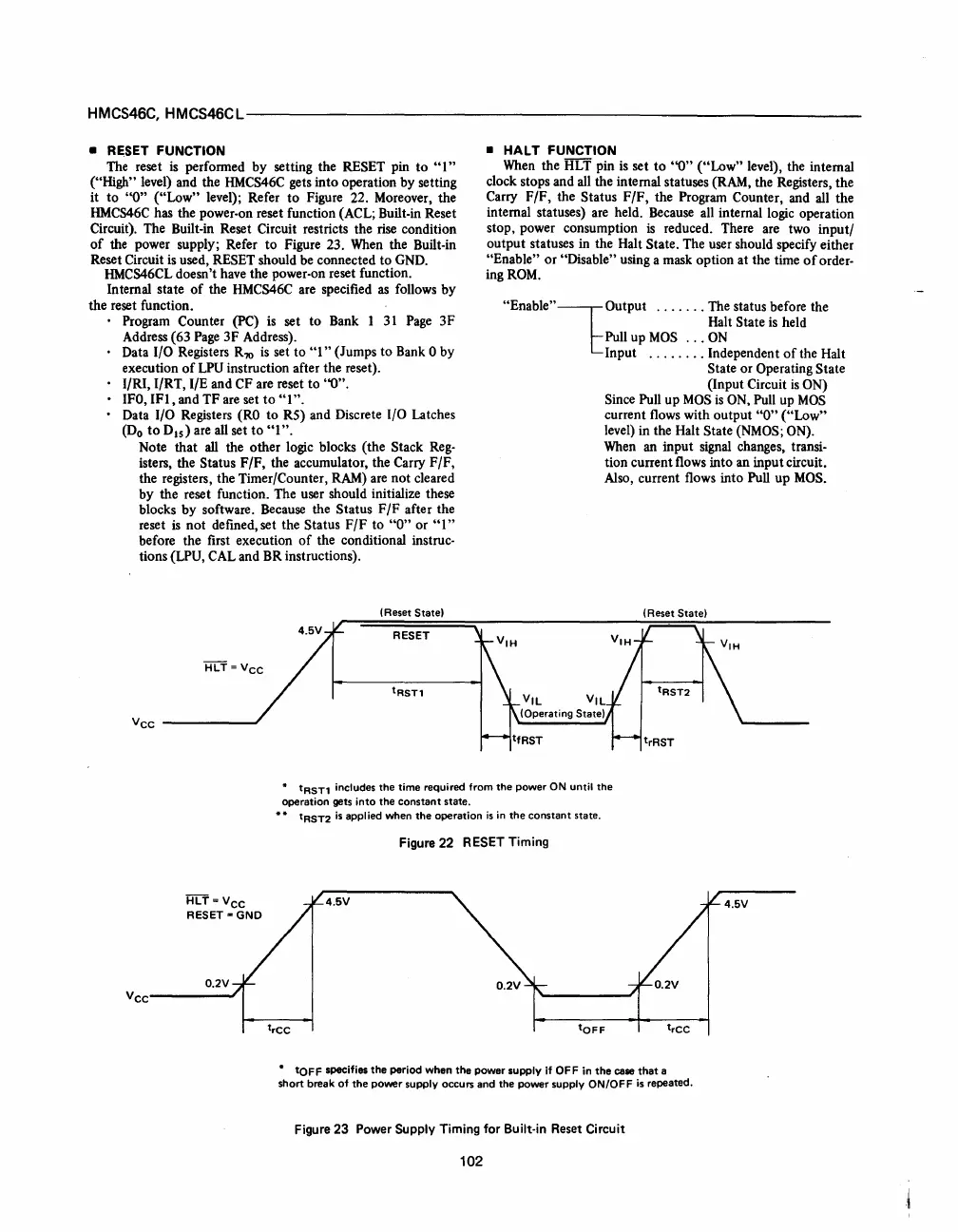

HMCS46C,HMCS46CL--------------------------------------------------------
• RESET FUNCTION
The reset
is
perfonned
by
setting the RESET pin
to
"1"
("High" level) and the HMCS46C gets into operation
by
setting
it
to
''0''
("Low"
level); Refer
to
Figure 22. Moreover, the
HMCS46C
has the power-on reset function (ACL; Built-in Reset
Circuit). The Built-in Reset Circuit restricts the rise condition
of
the power supply; Refer
to
Figure 23. When the Built-in
Reset Circuit is used, RESET should be connected
to
GND.
HMCS46CL doesn't have the power-on reset function.
Internal state
of
the HMCS46C are specified
as
follows
by
the reset function.
o Program Counter (PC) is set
to
Bank 1
31
Page
3F
Address (63 Page
3F
Address).
Data I/O Registers
R'lO
is
set
to
"1"
(Jumps
to
Bank 0 by
execution
of
LPU instruction after the reset).
o I/RI, IIRT, I/E and CF are reset
to
''0''.
o
IFO,
1Ft,
and
TF
are set
to
"1".
o Data I/O Registers
(RO
to
RS) and Discrete I/O Latches
(Do
to
015) are all set
to
"I".
Note that
all
the other logic blocks (the Stack
Reg-
isters, the Status
F/F,
the accumulator, the Carry
F/F,
the registers, the Timer/Counter, RAM) are
not
cleared
by the reset function. The user should initialize these
blocks
by
software. Because the Status
F/F
after the
reset
is
not
defined, set the Status
F/F
to
"0"
or
"1"
before the first execution
of
the conditional instruc-
tions (LPU, CAL and BR instructions).
(Reset State)
RESET
Vee
• HALT FUNCTION
When the HLT pin
is
set
to
''0''
("Low"
level), the internal
clock stops and all the internal statuses (RAM, the Registers, the
Carry
F/F,
the Status
F/F,
the Program Counter, and all the
internal statuses) are held. Because all internal logic operation
stop, power consumption
is
reduced. There are two
input/
output statuses in the Halt State. The user should specify either
"Enable"
or
"Disable" using a mask option at the time
of
order-
ingROM.
"Enable"~OutPut
.......
The status before the
Halt State is held
Pull up
MOS
'"
ON
Input
........
Independent
of
the Halt
State
or
Operating State
(Input Circuit
is
ON)
Since Pull up
MOS
is
ON, Pull up
MOS
current flows with output
"0"
("Low"
level) in the Halt State (NMOS; ON).
When an input signal changes, transi-
tion current flows into an input circuit.
Also, current flows into Pull
up
MOS.
* tRST1 includes
the
time
required from
the
power
ON until
the
operation gets
into
the
constant
state.
HLT
=
Vee
RESET-GND
O.2V
Vec-----J
tRST2
is
applied when
the
operation
is
in
the
constant
state.
Figure 22 RESET Timing
4.5V
tOFF
trce
*
tOFF
specifies
the
period
when
the
power
supply
if
OFF
in
the
case
that
a
short
break
of
the
power
supply occurs
and
the
power
supply
ON/OFF
is
repeated.
Figure 23 Power Supply Timing
for
Built-in
Reset
Circuit
102
4.5V
To Next Page
