11

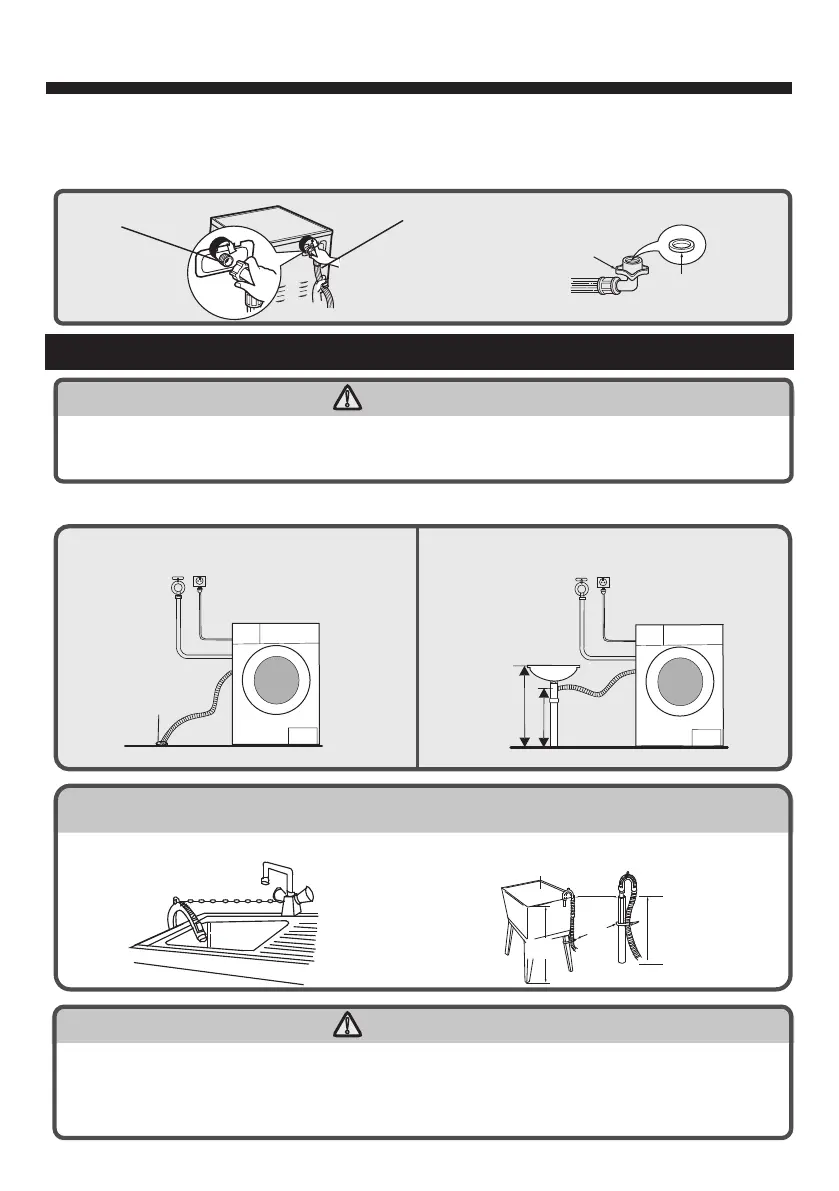

Water Supply Hose
Water Inlet Valve
● Do not kink or protract the drain hose.
● Position drain hose properly, otherwise damage might result of water leakage.
●
If the machine has drain hose support, please install it like the following.
There are two ways to place the end of drain hose:
Water
trough
Min.60cm
Max.100cm
1.Put it into the water trough.
2.Connect it to the branch drain pipe of
the trough.
NOTE
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
●
When installing drain hose, fix it properly with a rope.
●
If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
Hose Connector
Rubber Seal
● Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.
● Optimum water pressure is 0.05~1.0MPa.
WARNING
！
WARNING
！
Installation
Drain Hose
To Next Page
