21
English

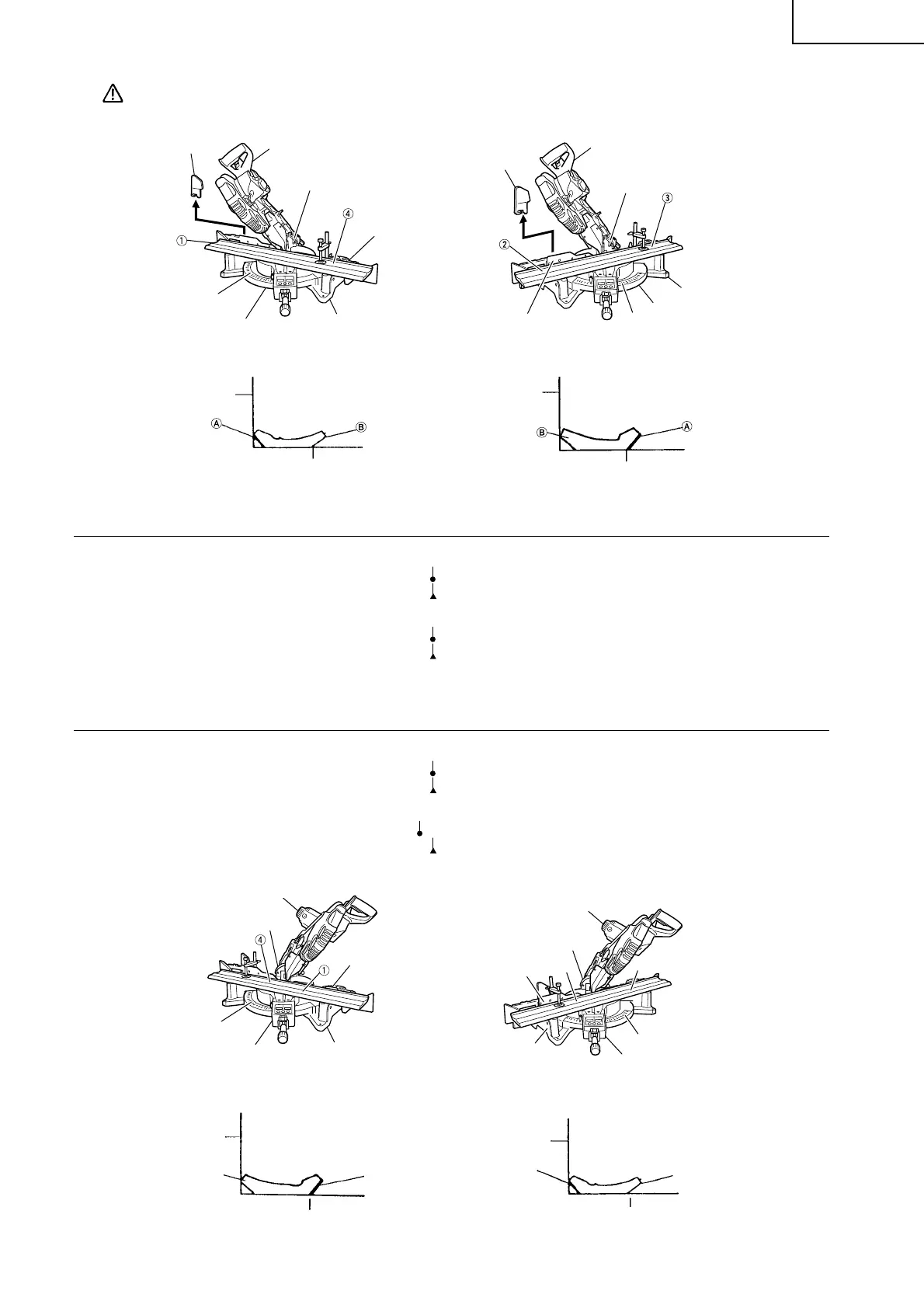

CAUTION: In the case of left bevel angle cutting, remove the sub fence (C) before operation. (Fig.
33 and 34)
Bevel angle scale
Sub fence (C)
Miter angle scale
Head
Turntable
Base
Fence (A)
Head
Bevel angle scale
Sub fene (C)
Base
Fence (B)
Turntable
Miter angle scale
Fig. 33 Fig. 34
Fence
Table on Base
Fence
Table on Base
Fig. 35 Fig. 36
(1) Setting to cut crown moldings at positions 1 and 4 in Fig. 32 (see Fig. 37; tilt the head to the right):
1 Turn the turntable to the right and set the Miter Angle as follows:
* For 45° type crown moldings: 35.3° ( mark)
* For 38° type crown moldings: 31.6° ( mark)
2 Tilt the head to the right and set the Bevel Angle as follows:
* For 45° type crown moldings: 30° ( mark)
* For 38° type crown moldings: 33.9° ( mark)
3 Position the crown molding so that the upper surface (B in Fig. 31) contacts the fence as indicated
Fig. 39.
(2) Setting to cut crown moldings at positions 2 and 3 in Fig. 32 (see Fig. 38; tilt the head to the right):
1 Turn the turntable to the left and set the Miter Angle as follows:
* For 45° type crown moldings: 35.3° ( mark)
* For 38° type crown moldings: 31.6° ( mark)
2 Tilt the head to the right and set the Bevel Angle as follows:
* For 45° type crown moldings: 30° ( mark)
* For 38° type crown moldings: 33.9° ( mark)
3 Position the crown molding so that the lower surface (A in Fig. 31) contacts the fence as in Fig. 40.
Bevel angle scale
Head
Miter angle scale
Turntable
Base
Fence (A)
Bevel angle scale
Head
Miter angle scale
Turntable
Base
Fence (B)
2
3
Fig. 37 Fig. 38
Fence
Table on base
B
A
Fence
Table on base
B
A
Fig. 39 Fig. 40
