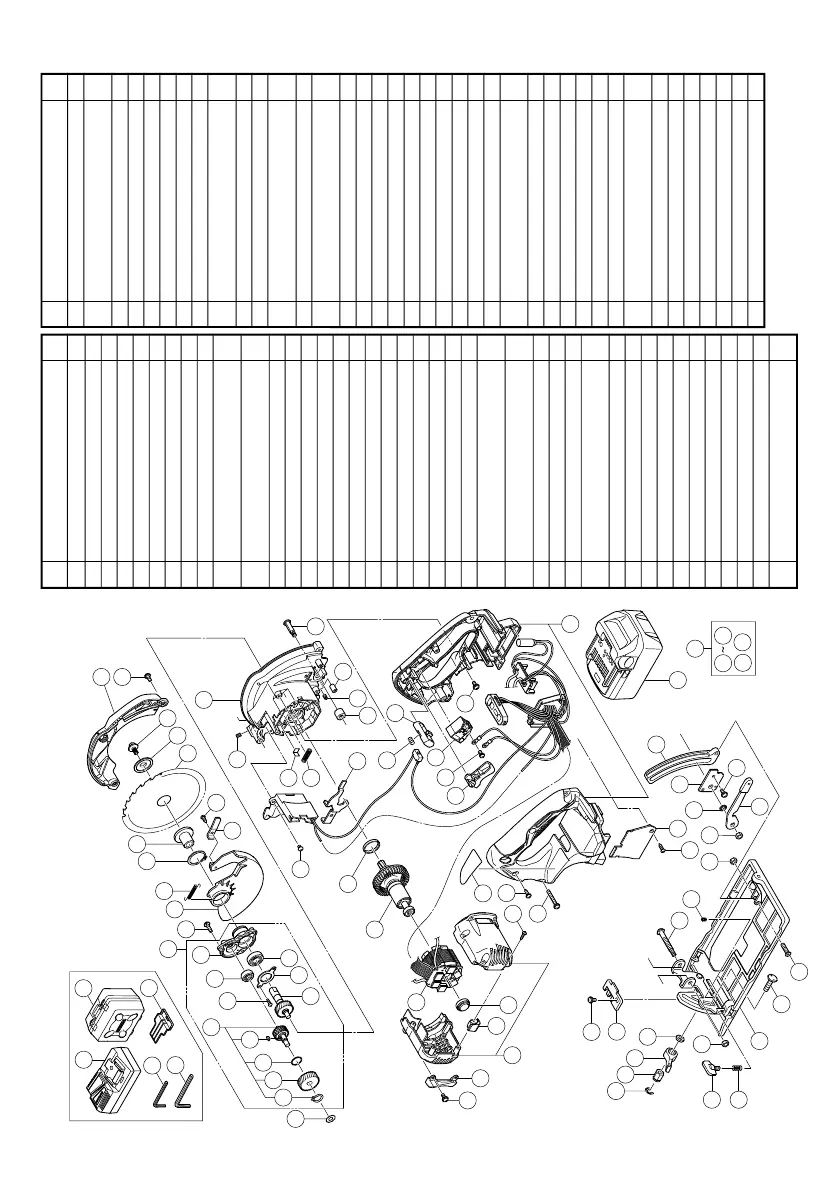

Hitachi C 18DBL - Page 15

14
A
C
B
A
B
C
501
502
503
504
505
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
29
30
31
32
33
34
37
30
38
39
35
40
41
42
36
43
44
43
26
27
28
45
46
47
48
49
52
50
55
56
57
58
54
53
60
61
62
59
65
63
66
67
68
59
69
70
71
72
73
64
59
74
10
53
64
66
71
75
51
Item
Part Name
Q’TY
No.
1 WASHER (A) 1
2 RETAINING RING FOR D10 SHAFT 1
3 FIRST GEAR 1
4 O-RING (S-14) 1
5 WOODRUFF KEY 1
6 SECOND SHAFT ASS'Y (INCLUD.2-5) 1
7 MACHINE SCREW M3×83
8 BALL BEARING 606VVC2 1
9 BEARING HOLDER 1
10
BEARING HOLDER ASS'Y
(INCLUD.6-9, 16-18)
1
11
MACHINE SCREW
(W/SP. WASHER) M4×12
3
12 LOWER GUARD 1
13 RETURN SPRING 1
14 RETAINING RING FOR D22 SHAFT 1
15 WASHER (A) 1
16 SPINDLE GEAR ASS'Y 1
17 BEARING COVER 1
18 BALL BEARING 6900VVCMPS2L 1
19 KNOB 1
20 TAPPING SCREW D4×10 1
21 125MM SAW BLADE 1
22 WASHER (B) 1
23 HEX. BOLT (W/FLANGE) M5×14 1
24 SAW COVER 1
25
MACHINE SCREW
(W/WASHERS) M4×12
3
26
STATOR FET PCB ASS'Y
(INCLUD.41, 42)
1
27 ROTOR 1
28 RUBBER RING (A) 1
29 MACHINE SCREW M4×61
30
SEAL LOCK HEX. SOCKET SET
SCREW M5×6
2
31 GEAR COVER 1
32 SPRING HOOK 1
33 SPRING 1
34 LOCK LEVER 1
35 SPRING 1
36 KNOB 1
37 CAM 1
38 LOCK SLEEVE 1
39 CAM SHAFT 1
40 TRIGGER 1
41
MACHINE SCREW
(W/WASHER) M3.5×6
2
Item
Part Name
Q’TY
No.
42 SWITCH 1
43
MACHINE SCREW
(W/WASHERS) M4×14
5
44 HANDLE SET 1
45 FLOW GUIDE (C) 1
46 HOUSING SET 1
47 CUSION 2
48 RUBBER BUSHING 1
49 TAPPING SCREW (W/FLANGE) D3×20 4
50
MACHINE SCREW
(W/WASHERS) M4×35
2
51 NAME PLATE 1
52 TAPPING SCREW (W/FLANGE) D4×16 3
53
MACHINE SCREW
(W/WASHERS) M4×81
54 GUIDE PIECE 1
55
RETAINING RING (E-TYPE)
FOR D8 SHAFT
1
56 SPECIAL NUT M6 1
57 WASHER M6 1
58 CLAMP LEVER 1
59 U-NUT M5 3
60 WING BOLT M6×18 1
61 SPRING 1
62 BASE (A) 1
63 BOLT (SQUARE) M6 1
64 SPECIAL BOLT 1
65 ADJUSTING SCREW (A) 1
66
SLOTTED HD. SET SCREW
(SEAL LOCK) M6×8
1
67 TAPPING SCREW D3×12 1
68 CONTROLLER COVER 1
69 WAVE WASHER 8 1
70 COVER PLATE 1 71 LINK 1
72 LEVER 1
73
MACHINE SCREW
(W/SP. WASHER) M4×8
1
74 BATTERY BSL1850 (INCLUD.505) 2
75 BASE ASS'Y (INCLUD.53-64, 66, 71) 1
501 CHARGER (MODEL UC18YFSL) 1
502 HEX.BAR WRENCH 2.5MM 1
503 HEX.BAR WRENCH 4MM 1
504 CASE 1
505 BATTERY COVER 1
