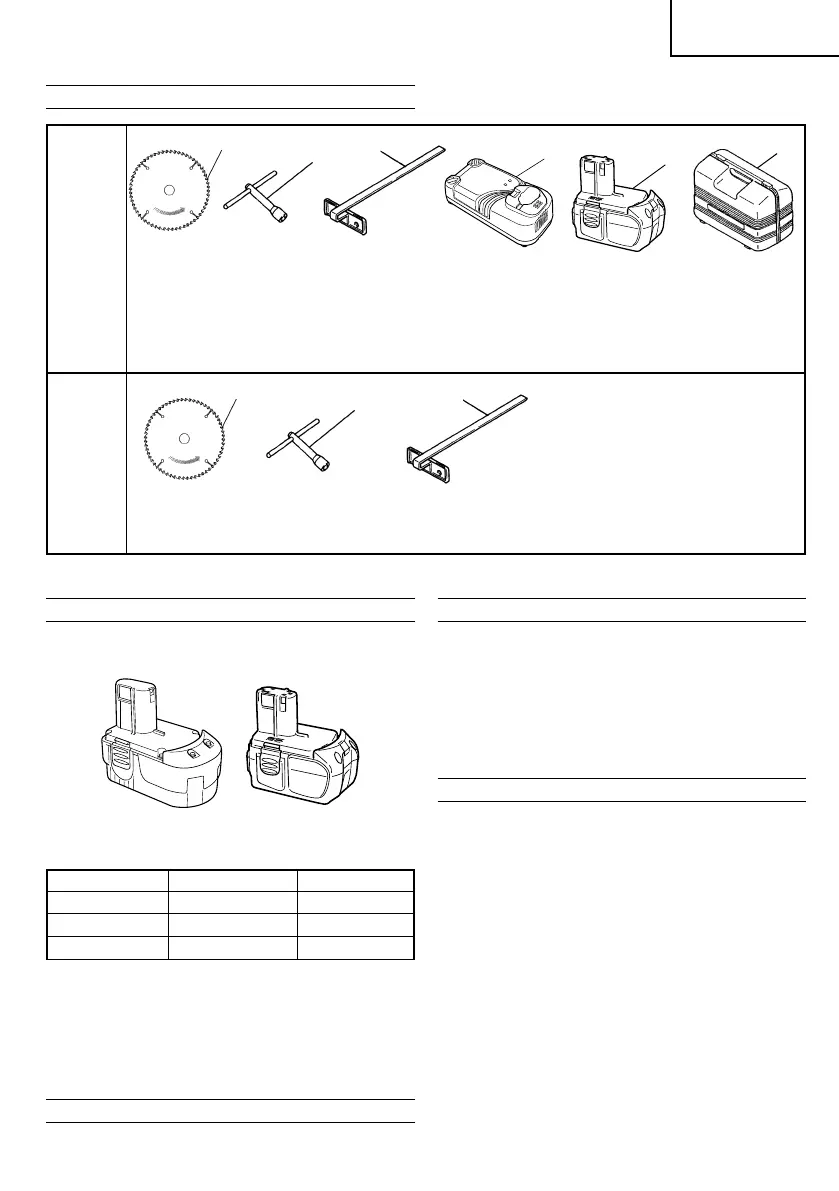

STANDARD ACCESSORIES
Standard accessories are subject to change without notice.
C18DMR
C18DL
1 Saw Blade (mounted on tool) ................................................................................ 1
2 Box Wrench ................................................................................................................ 1
3 Guide ............................................................................................................................ 1
4 Charger (UC24YFA or UC18YG or UC18YRL) ...................................................... 1
5 Battery C18DMR (2BLFK) (2HLFK), C18DL (2MRK) .............................................. 2
C18DMR (BLFK) (HLFK), C18DL (MRK) .................................................... 1
6 Plastic case .................................................................................................................. 1
1
2
3
C18DMR
(NN)
(For kit)
1 Saw Blade (mounted on tool) ................................................................................ 1
2 Box Wrench ................................................................................................................ 1
3 Guide ............................................................................................................................ 1
1
2
3
4
5
6
OPTIONAL ACCESSORIES (sold separately)
1. Battery (EB1820L, EB1826HL, EB1830HL, EB1830X,
EB1833X, EBM1830)
2. Saw Blade
Use......Cutting various types of wood.
External Diam Hole Diam. No. of Teeth
165 mm 16 mm 24 pieces
165 mm 20 mm 24 pieces
165 mm 30 mm 24 pieces
3. Washer (A) .... for 16 mm (Hole dia. of saw blade)
.... for 20 mm (Hole dia. of saw blade)
.... for 30 mm (Hole dia. of saw blade)
4. Dust Collector Set
Connect the suction hose to collect saw dust with
the vacuum cleaner (see Fig. 27).
Optional accessories are subject to charge without notice.
APPLICATION
Cutting various types of wood.
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latches
to remove the battery (see Fig. 8, 9).
CAUTION
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (see
Fig. 9).
CHARGING
〈
UC24YFA, UC18YRL
〉
Before using the power tool, charge the battery as follows.
1. Connect the charger’s power cord to a receptacle
When the power cord is connected, the charger’s
pilot lamp will blink in red (At 1-second intervals).
2. Insert the battery into the charger
Insert the battery firmly, until it contacts the bottom
of the charger compartment.
CAUTION
䡬 If the battery is inserted in the reverse direction,
not only recharging will become impossible, but it
may also cause problems in the charger such as
deformed recharging terminal.
3. Charging
When inserting a battery in the charger, charging
will commence and the pilot lamp will light up
continuously in red.
When the battery becomes fully recharged, the pilot
lamp will blink in red (At 1-second intervals) (See
Table 1).
01Eng_C18DMR_DL_WE 11/21/08, 11:1512
