Before
charging
While
charging
Charging
complete
Charging
impossible
Overheat
standby
Malfunction in the
battery or the charger
Battery overheated.
Unable to charge
(Charging will commence
when battery cools).
Table 2
Indications of the pilot lamp
Blinks
(RED)
Lights
(RED)
Blinks
(RED)
Flickers
(RED)
Lights
(GREEN)
Lights for 0.5 seconds. Does not light
for 0.5 seconds. (off for 0.5 seconds)
Lights continuously
Lights for 0.5 seconds. Does not light
for 0.5 seconds. (off for 0.5 seconds)
Lights for 0.1 seconds. Does not light
for 0.1 seconds. (off for 0.1 seconds)
Lights continuously
Charge
status
lamp
(RED)
Overheat
lamp
(GREEN)
䡬
Regarding the temperature of the rechargeable
battery.
The temperatures for rechargeable batteries are
as shown in the Table 3, and batteries that have
become hot should be cooled for a while before
being recharged.
Table 3
Rechargeable Temperatures at which the
batteries battery can be recharged
EBM1830, BCL1815
32°F — 122°F (0°C — 50°C)
4. Disconnect battery charger from the receptacle.
CAUTION:
Do not pull the plug out of the receptacle by pulling
on the cord.
Make sure to grasp the plug when removing from
receptacle to avoid damaging cord.
5. Remove the battery from the battery charger.
Supporting the battery charger with hand, pull out
the battery from the battery charger.
<UC18YGL2>
1. Insert the plug of battery charger into the
receptacle.
When the plug of battery charger has been inserted
into the receptacle, pilot lamp will blink in red. (At
1-second intervals)
NOTE: When standby for cooling battery, UC18YRL cools the overheated battery by cooling fan.
WARNING
Do not use the electrical cord if
damaged. Have it repaired
immediately.
2. Insert the battery to the battery charger.
Insert the battery into the battery charger as shown
in Fig. 6. Make sure it contacts the bottom of the
battery charger.

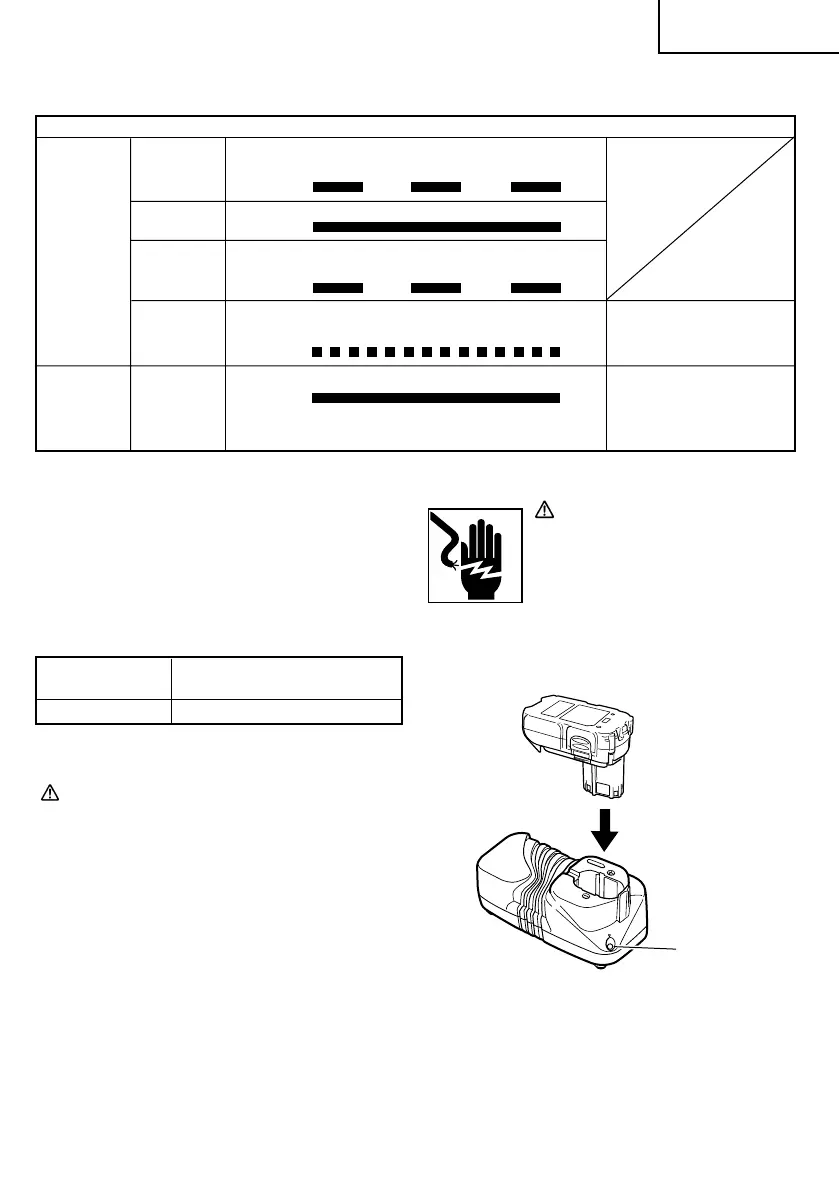

Fig. 6
Pilot lamp
3. Charging
䡬
When the battery is connected to the battery
charger, charging will commence and the pilot
lamp will light in red. (See Table 4)
