English
17
Wood
Capacity
Battery (EBM1830) Battery (BCL1815)
2 × 8 (Spruce-Pine-Fir)
110 cuts 55 cuts
Concreteform plywood
133 ft (40 m) 67 ft (20 m)
(1/2” (12 mm) t)
To improve working efficiency per single charge,
䡬
Minimize operation (no-load operation) other than
cutting;
䡬
Avoid any unreasonably forced pressure to the
motor during cutting operation by twisting or
pressing the circular saw forcibly;
䡬
Avoid any use of dull saw blade.
3. Cutting procedures
CAUTION:
䢇
Recheck that the saw blade is securely clamped.
䢇
Confirm that the wing-nut for adjusting the slot
depth, the wing-bolt for adjusting the angle of
inclination.

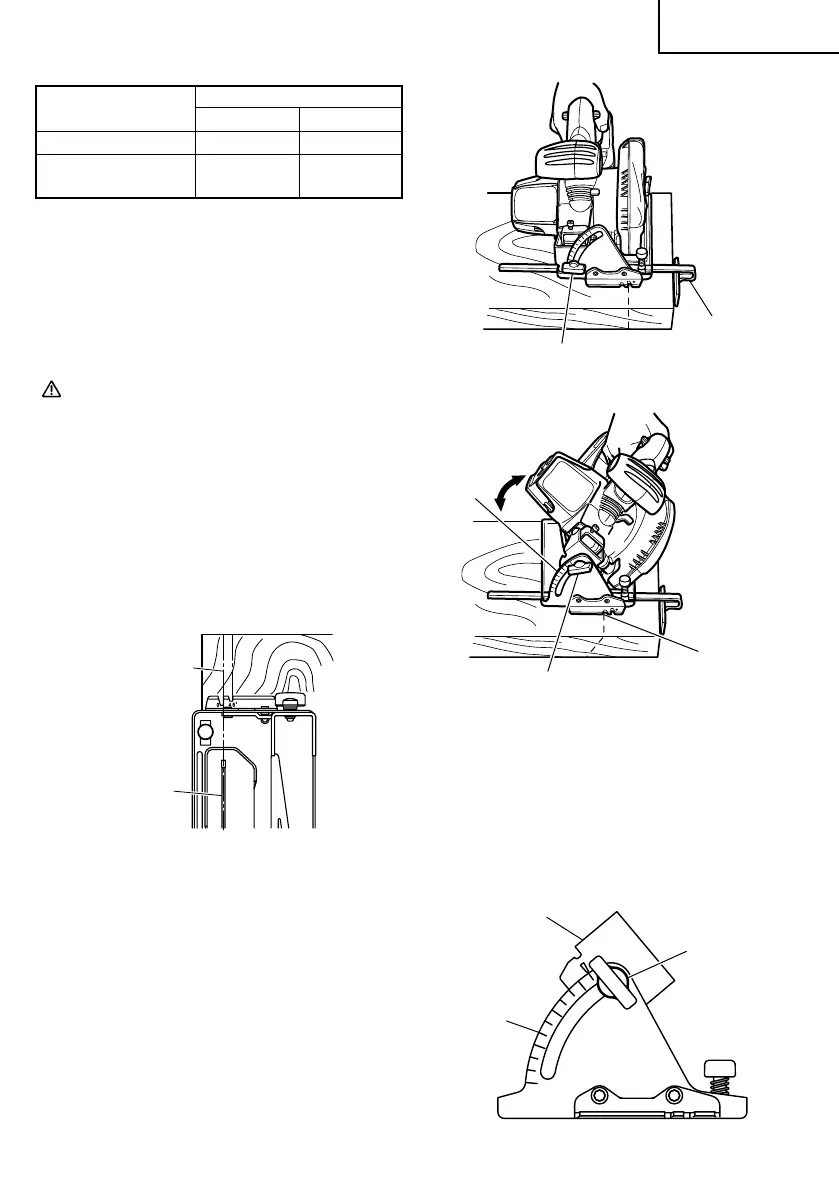

(1) Place the base on the material, then align the
premarked line and the saw blade with the notch
at the front of the base (Fig. 12).
(2) When the base is not inclined, use the large notch
(Fig. 12, Fig. 13).
If the base is inclined (45 degrees), use the small
notch (Fig. 12, Fig. 14).
Fig. 12 <Top View>
Fig. 13 Not inclined
Fig. 14
NOTE:
When using the saw at the inclination of 45
degrees, use both the marks of on the bevel plate
and [45] on the inclined gauge of the base (Fig.
15).
What’s more, if it is absolutely essential to use the
saw at a precise angle, make adjustment using a
protractor, etc.
Fig. 15
Not inclined
Saw blade
Wing-bolt
Guide
Inclined
gauge
Wing-bolt
Cutting line
(at 45 degrees)
Bevel plate
Inclined
gauge
Wing-bolt
01Eng_C18DL_US 7/31/09, 16:1217
