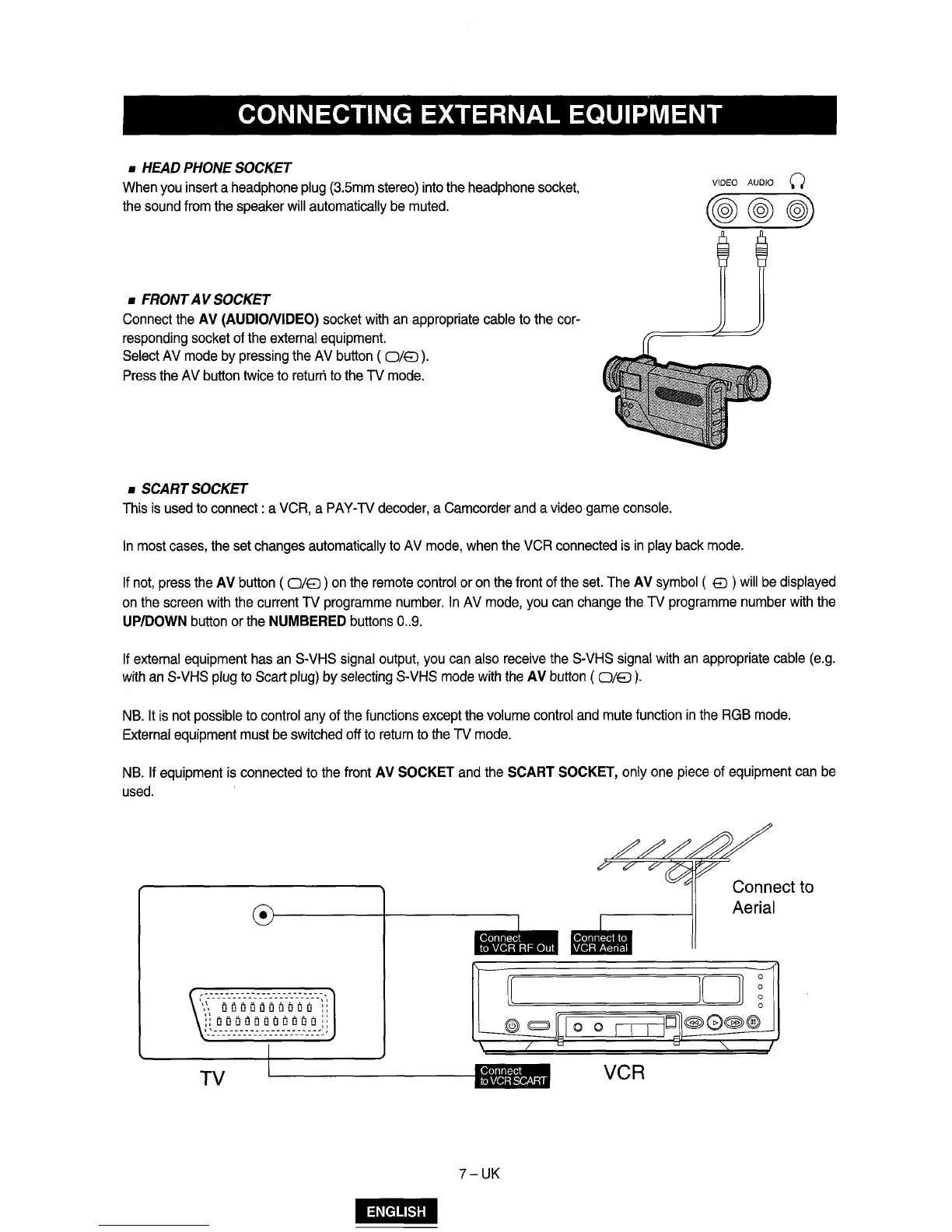

CONNECTING EXTERNAL EQUIPMENT
• HEAD PHONE SOCKET
When you inseri a headphone plug (3.5mm stereo) into the headphone socket,
the sound from the speaker will automatically be muted.
• FRONT AV SOCKET
Connect the AV (AUDIONIDEO) socket with an appropriate cable to the cor-
responding socket of the externa! equipment.
Select AV mode by pressing the AV button ( 0/8 ).
Press the AV button twice to retuni to the TV mode.
• SCART SOCKET
This is used to connect: a VCR, a PAY-TV decoder, a Camcorder anda video game console.
VIDEO AUDIO
ln most cases, the set changes automatically to AV mode, when the VCR connected is in play back mode.
lf not, press the AV button ( 0/8 ) on the remote control or on the front of the set. The AV symbol ( 8 ) will be displayed
on the screen with the current TV programme number. ln AV mode, you can change the TV programme number with the
UP/DOWN button or the NUMBERED buttons 0 .. 9.
lf externa! equipment has an S-VHS signal output, you can also receive the S-VHS signal with an appropriate cable (e.g.
with an S-VHS plug to Scart plug) by selecting S-VHS mode with the AV button ( 0/8 ).
NB. lt is not possible to control any of the functions except the volume control and mute function in the RGB mode.
Externa! equipment must be switched off to return to the TV mode.
NB. lf equipment is connected to the front AV SOCKET and the SCART SOCKET, only one piece of equipment can be
used.
o I I I
VCR
7-UK
Connect to
Aerial
lDI ~
o
