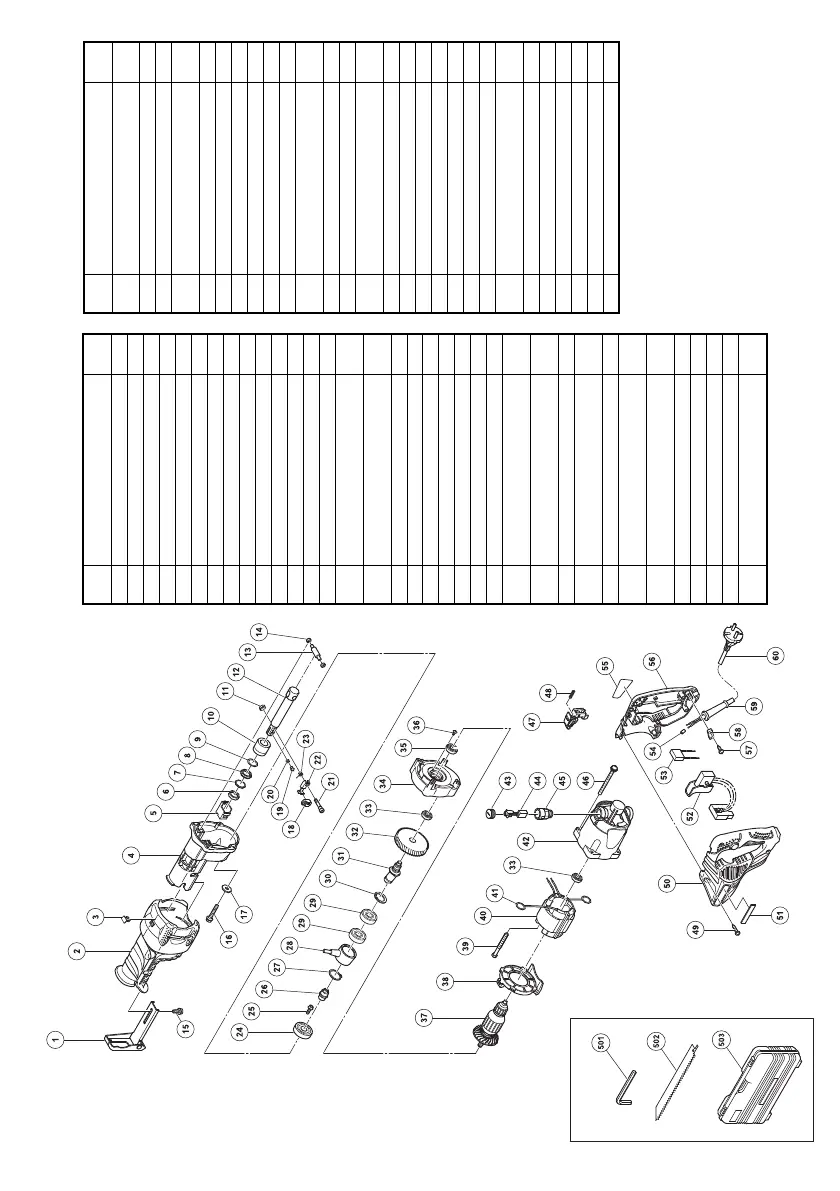

Hitachi CR13V2 User Manual

23
Item
No.
Part Name Q’TY
1BASE (F) 1 2 FRONT COVER (F) 1 3COVER PIN 1 4 GEAR COVER (F) 1 5BLADE HOLDER (C) 1 6 FELT WASHER 1 7WASHER (H) 1 8V-RING 1 9O-RING 1
10 METAL (B) 1
11 LOCK NUT M5 1
12 PLUNGER (F) 1
13 CONNECTOR PIN (F) 1
14 SWING ROLLER 2
15
NYLOCK BOLT (W/FLANGE) M5×12
1
16
NYLOCK BOLT (W/FLANGE) M6×35
1
17 WASHER (G) 1
18 CAP 1
19 HOLDER PIN (B) 1
20 SPRING (B) 1
21 SPECIAL BOLT M5 1
22 LEVER (C) 1
23 BLADE SPRING 1
24
BALL BEARING 6002DDCMPS2L
1
25
NYLOCK BOLT (W/FLANGE) M4×12
3
26 SUB SHAFT (B) 1
27
RETAINING RING FOR D17 SHAFT
1
28 RECIPRO PLATE (F) 1
29
BALL BEARING 6003VVCMPS2L
2
30
RETAINING RING FOR D35 HOLE
1
31 SECOND SHAFT (F) 1
32 GEAR 1
33 BALL BEARING 608VVC2PS2L 2
34 INNER COVER (F) 1
35
BALL BEARING 6001VVCMPS2L
1
Item
No.
Part Name Q’TY
36
SLOTTED HD. SCREW (SEAL LOCK) M4×10
2
37 ARMATURE 1
38 FAN GUIDE (F) 1
39
HEX. HD. TAPPING SCREW D5×55
2
40 STATOR ASS’Y 1
41 BRUSH TERMINAL 2
42 HOUSING 1
43 BRUSH CAP 2
44 CARBON BRUSH (1 PAIR) 2
45 BRUSH HOLDER 2
46
MACHINE SCREW (W/ WASHERS) M5×60
4
47 OFF LOCK LEVER 1
48 SPRING (F) 1
49
TAPPING SCREW (W/FLANGE) D4×25
5
50 HANDLE (H) 1
51 HITACHI LABEL 1
52 SWITCH 1
53 NOISE SUPPRESSOR 1
54 TUBE (D) 2
55 NAME PLATE 1
56 HANDLE (G) 1
57
TAPPING SCREW (W/FLANGE) D4×16
2
58 CORD CLIP 1
59 CORD ARMOR 1
60 CORD 1
501 HEX. BAR WRENCH 4MM 1
502 SABER SAW BLADES 1
503 CASE 1
