16
English

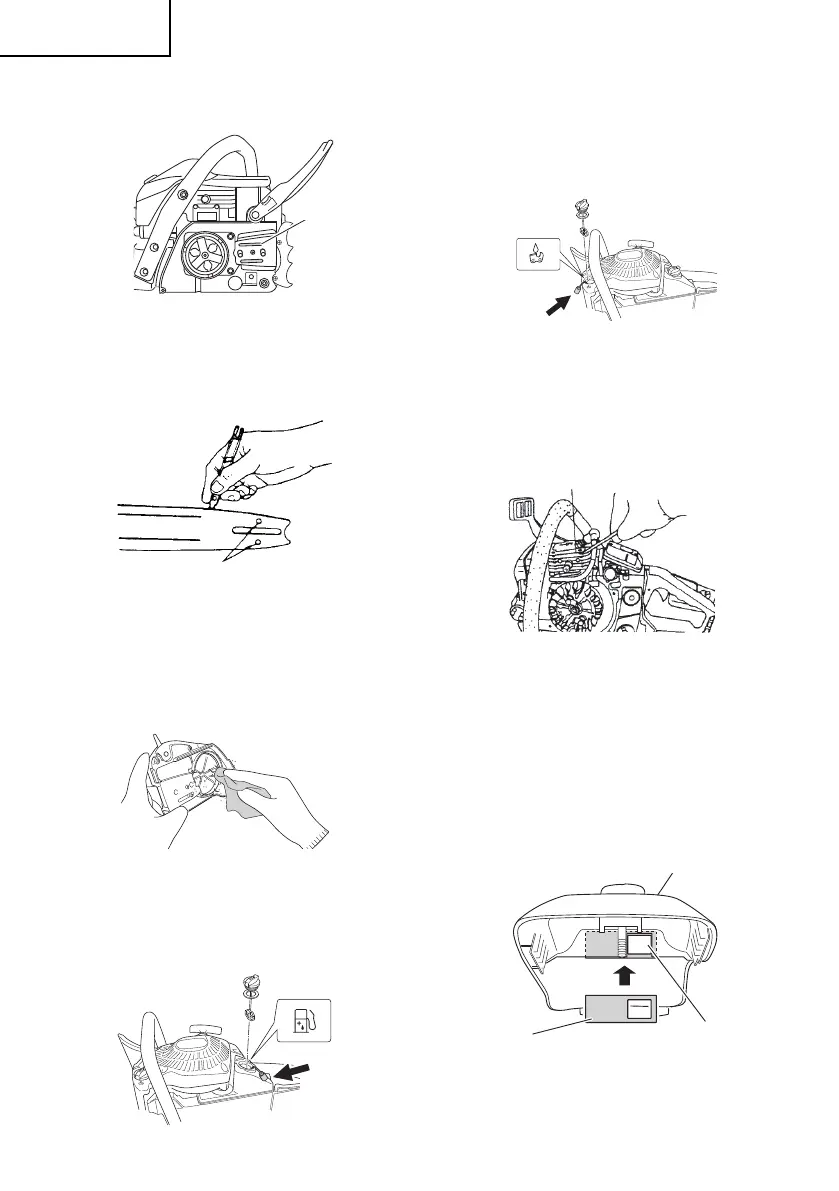

Oiler port (Fig. 34)
Clean the chain oiler port (42) whenever possible.
42
Fig. 34
Guide bar (Fig. 35)
Before using the machine, clean the groove and
oiler port (43) in the bar with the special gauge
off ered as an optional accessory.
39
43
Fig. 35
Side case (Fig. 36)
Always keep the side case and drive area clean of
saw dust and debris. Periodically apply oil or grease
to this area to protect from corrosion as some trees
contain high levels of acid.
Fig. 36
Fuel fi lter (Fig. 37)
Remove the fuel fi lter from the fuel tank and
thoroughly wash it in solvent. After that, push the
fi lter into the tank completely.
Fig. 37
NOTE
If the fi lter is hard due to dust and dirt, replace it.
Chain oil fi lter (Fig. 38)
Remove the oil fi lter and thoroughly wash it in
solvent.
Fig. 38
Cleaning the cylinder fi ns (Fig. 39)
When wood chips are caught between cylinder fi ns
(44), the engine may overheat, resulting in lower
output. To avoid this, always keep cylinder fi ns and
fan case clean.
40
44
Fig. 39
Icing protection system (Fig. 40, 41)
This system is to protect carburetor from icing when
the unit is operated in winter time.
1. When you need icing system work, remove air
fi lter cover (41). Pull out the shutter (45) from
inside the air fi lter cover and reinstall it in winter
time position by turning half-way. (Fig. 40) This
will allow heated air to fl ow from cylinder side to
carburetor cabin through the opening (46).
45
46
41
Fig. 40
NOTE
When winter time has been over and carburetor
will not suff er from icing, make sure that the
shutter is reinstalled in ordinary position (Fig. 41).
000BookCS51EAPUS.indb16000BookCS51EAPUS.indb16 2012/03/1916:33:462012/03/1916:33:46
