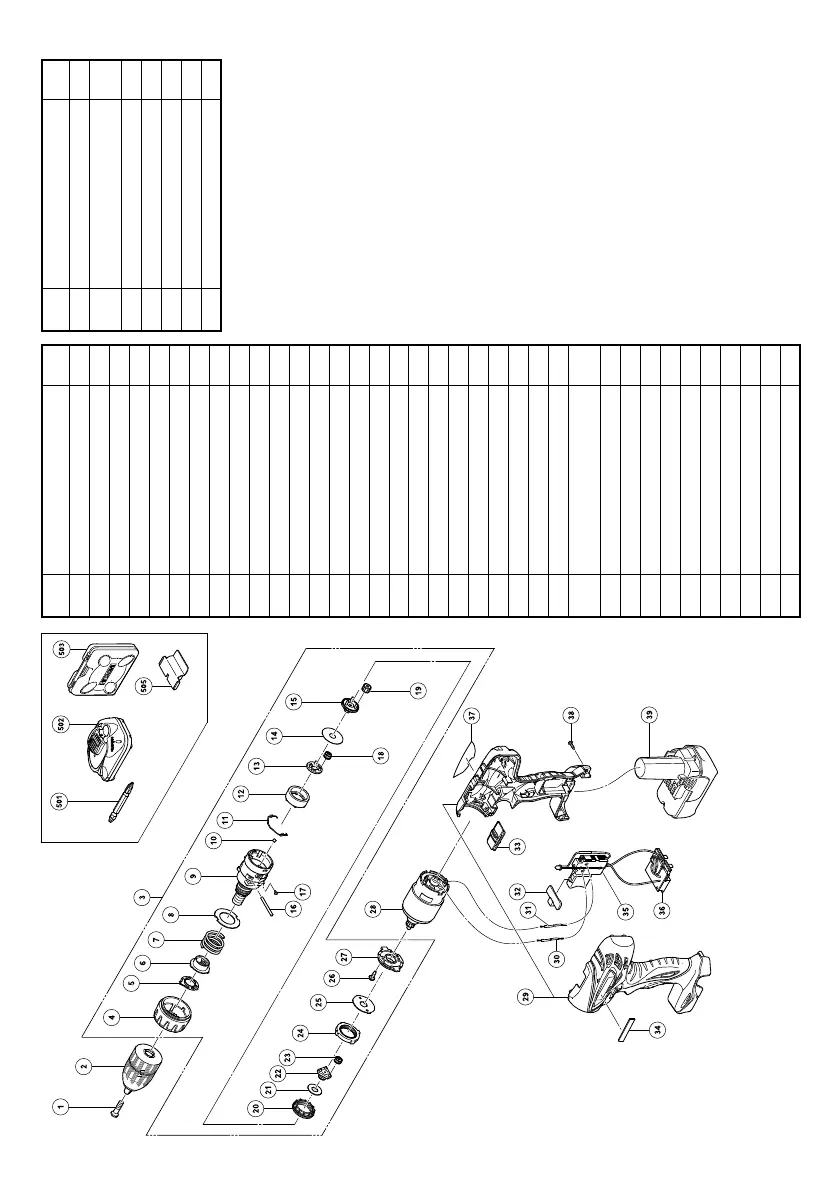

Hitachi DS10DFL - Page 43

43
ITEM
NO.
PART NAME Q’TY
1 LEFT-HAND SCREW (B) M5
1
2 KEYLESS CHUCK 10MM 1 3 GEAR BOX ASS'Y 1 4 CLUTCH DIAL 1 5CLICK SPRING 1 6NUT 1 7SPRING 1 8THRUST PLATE 1 9 GEAR CASE 1
10 STEEL BALL D5 6
11 S HIFT ARM 1
12 RING GEAR 1
13 CARRIER 1
14 WASHER (B) 1
15 PINION (C) 1
16 NEEDLE 2
17 TAPPING SCREW D2×3.5 2
18 PLANET GEAR (C) 3
19 PLANET GEAR(B) 3
20 SLIDE RING GEAR 1
21 WASHER (C) 1
22 PINION (B) 1
23 PLANET GEAR (A) 3
24 FIRST RING GEAR 1
25 WASHER (A) 1
26
MACHINE SCREW (W/SP. WASHER) M3×20
2
27 MOTOR SPACER 1
28 MOTOR 1
29 HOUSING (A) (B) SET 1
30 LEAD WIRE 1
31 LEAD WIRE 1
32 PUSH BUTTON (A) 1
33 SHIFT KNOB 1
34 HITACHI LABEL 1
35 DC SPEED CONTROL SWITCH 1
36 CONTROLLER (B) 1
ITEM
NO.
PART NAME Q’TY
37 NAME PLATE 1
38
TAPPING SCREW (W/FLANGE) D3×16
8
39 BATTERY (BCL1015) 2
501 PLUS DRIVER BIT (C) 1
502 CHARGER (UC10SFL) 1
503 CASE 1
505 BATTERY COVER 1
