Hitachi EXV-2.0E2 - Page 12

PRODUCT GUIDE
PMML0293A rev.2 - 08/2016
4

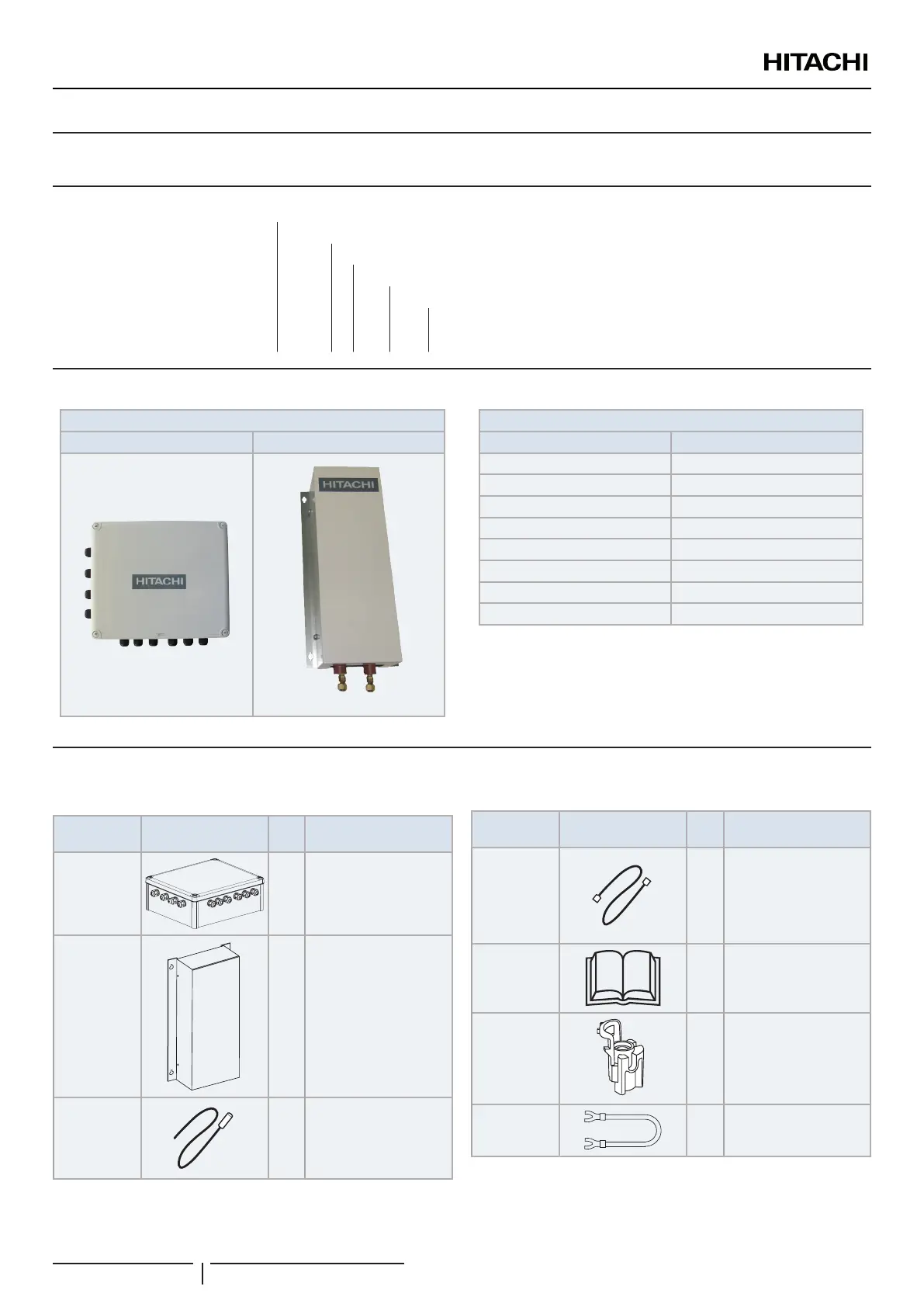

4 PRODUCT GUIDE
4.1 CLASSIFICATION OF DX-INTERFACE
DX-Interface type
Position-separating hyphen (xed)
Capacity (HP): 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0
E = Made in Europe
New serie
EXV – X.X E 2
4.2 PRODUCT GUIDE CODIFICATION
DX-Interface EXV-(2.0-10.0)E2
Control box Expansion valve box
DX-Interface
Model Code
EXV-2.0E2 7E610900
EXV-2.5E2 7E610901
EXV-3.0E2 7E610902
EXV-4.0E2 7E610903
EXV-5.0E2 7E610904
EXV-6.0E2 7E610905
EXV-8.0E2 7E610906
EXV-10.0E2 7E610907
4.3 FACTORY-SUPPLIED
Check the content and the number of accessories in the package. The package contains the following parts:
Name
description
See in gure Qty Purpose
Control box 1 System control box
Expansion
valve box
1
Expansion valve for
refrigerant cycle control
Thermistor 4
Temperature sensing:
inlet air (blue)
outlet air (red)
gas line (yellow)
liquid line (black)
Name
description
See in gure Qty Purpose
Thermistor
extension
(5 m)
4
To extend thermistor
length:
inlet air (blue)
outlet air (red)
gas line (yellow)
liquid line (black)
Installation
Manual and
Declaration
of Conformity
1
Instructions and
important notice
Control
box xing
accessory
4 Control box cover lock
Harness
jumper
1
Motor alarm connection
jumper
