APPLICATIONS
䡬
Removal of casting fin and finishing of various type
of steel, bronze and aluminum materials and
castings.
䡬
Grinding of welded sections or sections cut by
means of an acetylene torch.
䡬
Grinding of synthetic resins, slate, brick, marble.
WARNING:
To avoid the risk of serious injury, NEVER use this
grinder with cup wheels and/or saw blades.
REMOVAL AND INSTALLATION METHOD
OF BATTERY

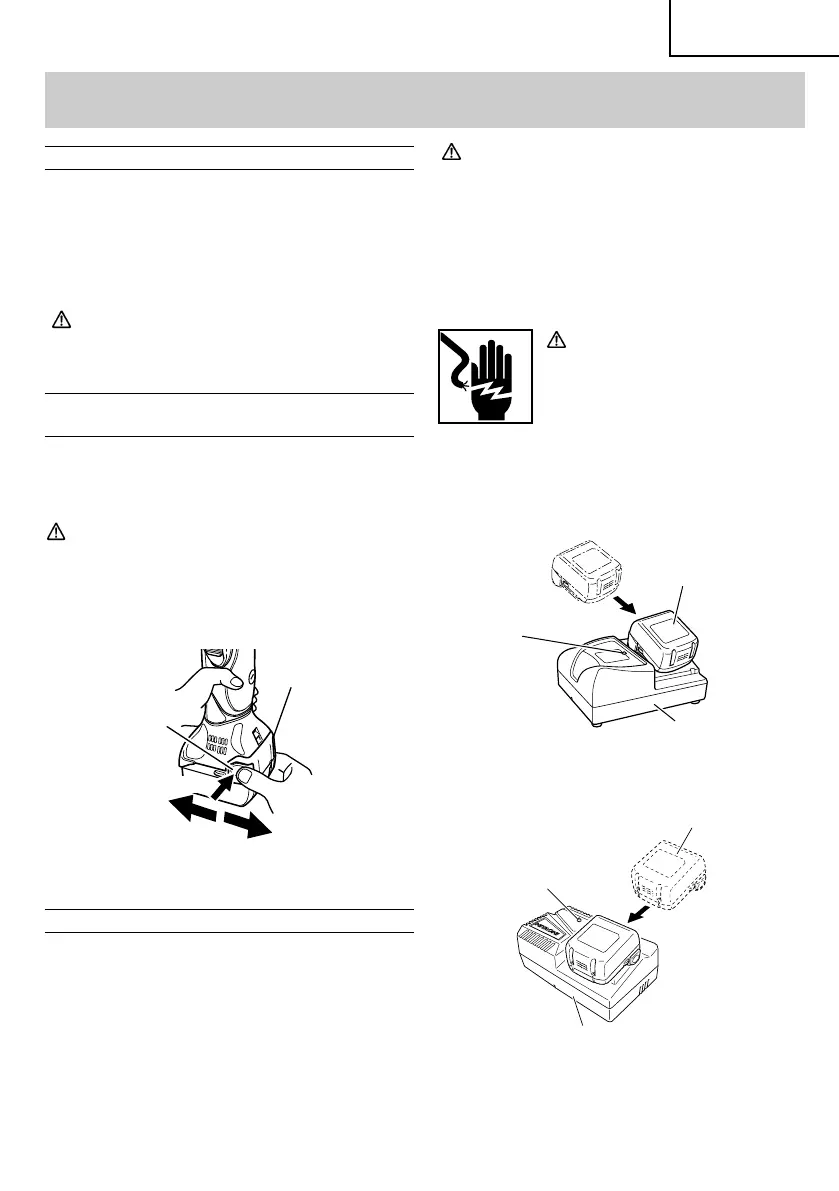

1. Battery removal
Hold the handle tightly and push the battery latch
to remove the battery (see Fig. 3).
CAUTION
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (see
Fig. 3).
Fig. 3
CHARGING METHOD
NOTE:
Before plugging into the receptacle, make sure the
following points.
䡬
The power source voltage is stated on the
nameplate.
䡬
The cord is not damaged.
ASSEMBLY AND OPERATION
Latch
Battery
Pull out
Insert
Push
WARNING:
Do not charge at voltage higher than indicated on
the nameplate.
If charged at voltage higher than indicated on the
nameplate, the charger will burn up.
1. Connect the charger’s power cord to a receptacle.
When the power cord is connected, the charger’s
pilot lamp will blink in red. (At 1-second intervals)
WARNING:
Do not use the electrical cord if
damaged. Have it repaired
immediately.
2. Insert the battery to the battery charger.
Insert the battery into the battery charger as shown
in Fig. 4, 5.
<UC18YRSL>
Fig. 4
<UC18YFSL>
Fig. 5
Battery
Charger
Pilot lamp
Battery
Charger
Pilot lamp
01Eng_G14DSL_US 8/28/13, 16:2713
