– 4 –

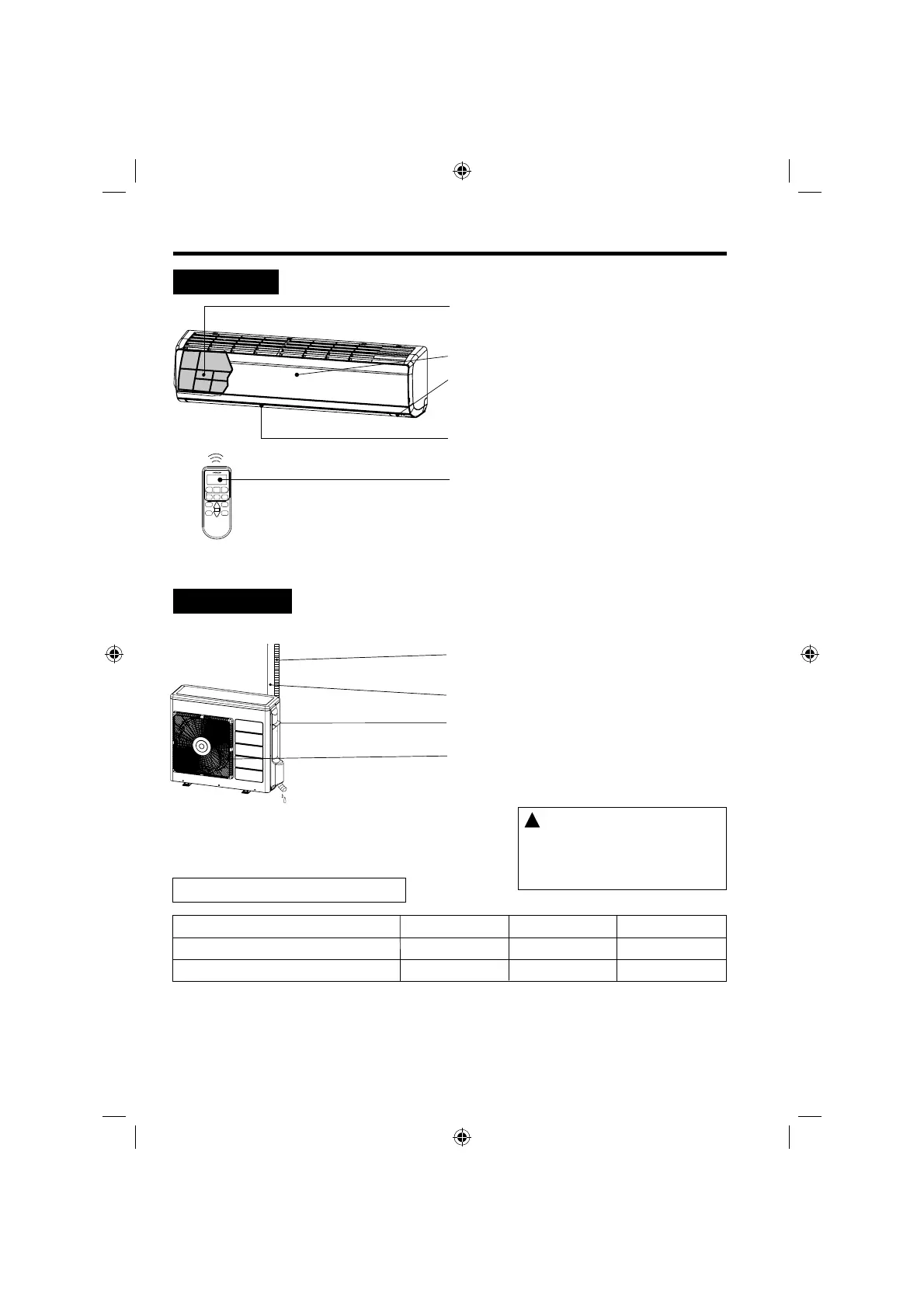

INDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART
Pre-fi lter
To prevent dust from coming into the indoor unit.
(Refer page 20)
Front panel
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 5)
Horizontal defl ector
●
Vertical defl ector
(Air Outlet)
(Refer page 15)
Remote controller
Send out operation signal to the indoor unit. So as
to operate the whole unit.
(Refer page 6)
OUTDOOR UNIT
Drain pipe
Condensed water drain to outside.
Connecting cord and insulation pipe for piping
Air inlet (Back, Left side)
Air outlet
WIDTH (mm)
1100
850
MODEL
RAS-PH30HLT
RAC-PH30HLT
HEIGHT (mm)
300
800
DEPTH (mm)
260
298
MODEL NAME AND DIMENSIONS
●
When heating operation, drain or
defrosted water fl ows out from outdoor
unit. Don’t close drain outlet portion in
chilly area so as not to freeze these.
CAUTION
!
RAS/RAC-PH30HLT (1-16).indd 4RAS/RAC-PH30HLT (1-16).indd 4
