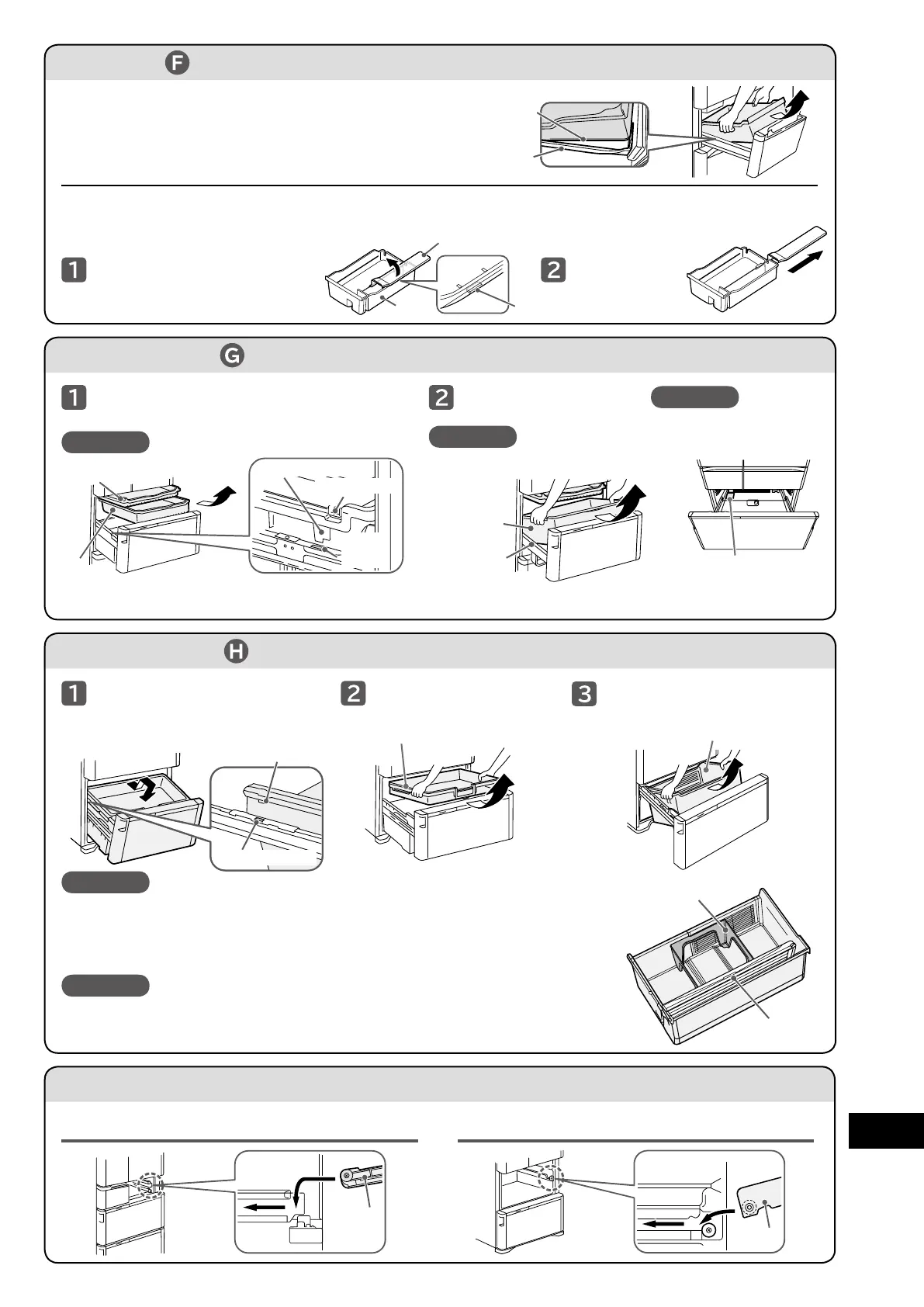

How to Remove/Attach Parts
Ice Case
(Ice Compartment)
・
Upper Freezer case
(Upper Freezer)
Slide case and lower freezer case
(Lower Freezer)
When installing it, insert the pins on the left/right of the Lower freezer case into the square holes on the frame to install it.
Moreover, hitch the fork on the left/right of the Slide case to the outside of the Lower freezer case.
Draw the door fully and lift up the case towards you.
Put the case bottom on the frame and set the case.
● Before taking
out the Ice Case of R-ZX740J type, close the lid of the
Small Article Case by pulling it to the front.
Underside of the case
Frame
Slimline slide case
Draw the door fully, and draw the Slide case
respectively.
Slide case
Pin (right and left)
Fork (right and left)
Rectangle
hole in the
frame
Frame
Lower freezer case
How to attach the slide door
(
Ice Compartment/Upper Freezer/Lower Freezer/Vegetable Compartment
)
Ice Compartment/Upper Freezer Lower Freezer/Vegetable Compartment
Frame
Frame
Lift up the Lower
freezer case.
Seal
● The partition of the Lower Freezer can
’
t
be removed.
● Do not peel off the adhesive
seal.
Caution
Caution
Upper Case, Lower Case
(Vegetable Compartment)
Draw the door fully and pull up
both hands further to pull it out
slowly and to place it on the floor.
Lift up the Upper Case. Lift up the Upper Case.
● When opening the door, do not place your foot near the door. Doing
so may get your foot caught between the door and the floor.
● Be careful. Water may drip from the backside of the lower case.
Caution
●
The partition cannot be removed.
●
Improper installation of the Upper Case may damage parts, including cases.
Once the Upper Case is installed, slide it in the front-rear direction to confirm that it is
mounted properly.
Request
Upper Case
Lower Case
Wrong setting may cause abnormal noise or half-closed door when
opening or closing the door.
Pin (right and left)
Square hole in the frame
Partition
Partition
※ Only for R-ZX740J type
[Only for R-ZX740J type]
Remove the lid of the Small Article Case as follows:
(Mount it in the reverse order of removal)
Lid
Fork
Case
Slide the lid halfway and
deflect the side of the Ice Case
to remove the fork.
Slide the lid
toward the rear
and pull it out.
● Do not remove the Slimline slide case.
Caution
To Next Page
