– 4 –
INDOOR UNIT

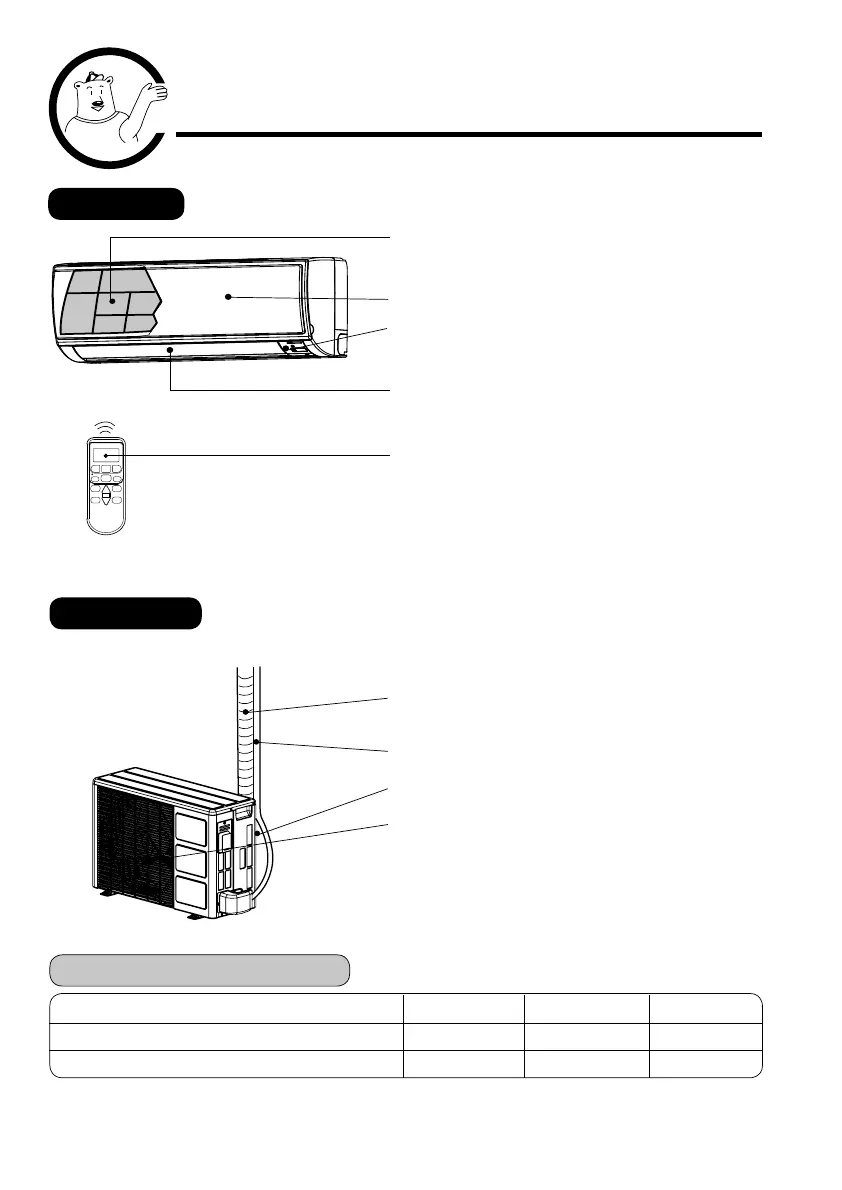

NAMES AND FUNCTIONS OF EACH PART
PRE-FILTER
To prevent dust from coming into the indoor unit.
(Refer page 18)
FRONT PANEL
INDOOR UNIT INDICATORS
Light indicator showing the operating condition.
(Refer page 5)
HORIZONTAL DEFLECTOR
●
VERTICAL
DEFLECTOR (AIR OUTLET)
(Refer page 13)
REMOTE CONTROLLER
Send out operation signal to the indoor unit. So as to
operate the whole unit.
(Refer page 6)
OUTDOOR UNIT
WIDTH (mm)MODEL
RAS-S10CAK / RAS-S13CAK
RAC-S10CAK/ RAC-S13CAK
HEIGHT (mm)
DEPTH (mm)
MODEL NAME AND DIMENSIONS
780
700
280
468
220
258
DRAIN PIPE
Condensed water drain to outside.
CONNECTING CORD
AIR INLET (BACK, LEFT SIDE)
AIR OUTLET
RAS-S10CAK-S13CAK (1).indd 4 9/3/10 2:24 PM
