– 4 –
INDOOR UNIT
OUTDOOR UNIT
WIDTH (mm)MODEL
RAS-10C9 / 13C9
RAC-10C9 / 13C9
HEIGHT (mm)
DEPTH (mm)
MODEL NAME AND DIMENSIONS

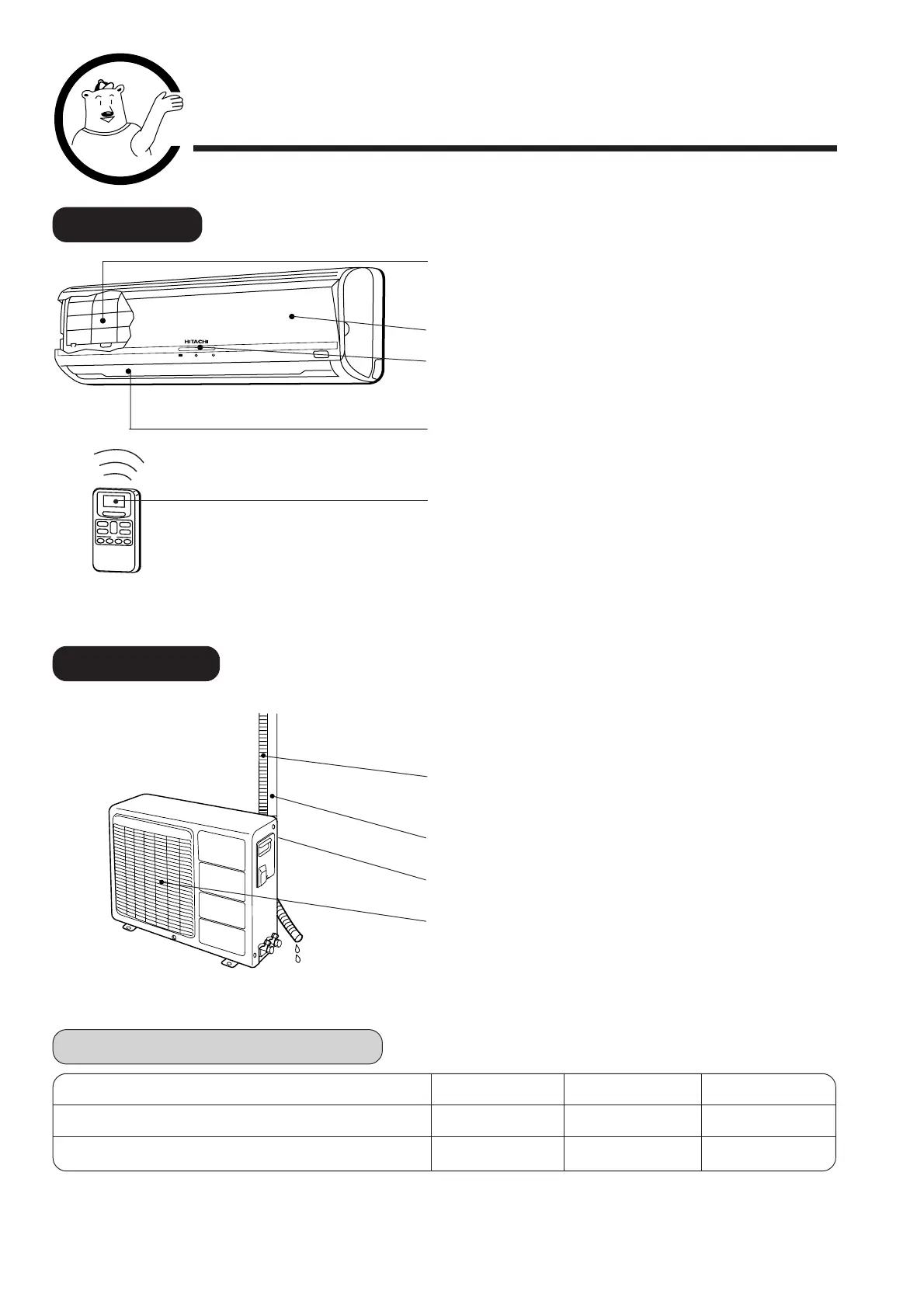

NAMES AND FUNCTIONS OF EACH PART
AIR FILTER
To prevent dust from coming into the indoor unit.
(Refer page 17)
FRONT PANEL (AIR INLET).
INDOOR UNIT INDICATORS
Light indicator showing the operating condition.
(Refer page 5)
HORIZONTAL DEFLECTOR
●
VERTICAL
DEFLECTOR (AIR OUTLET)
(Refer page 12)
REMOTE CONTROL
Send out operation signal to the indoor unit. So as to
operate the whole unit.
(Refer page 6)
860
700
285
570
188
210
DRAIN PIPE
Condensed water drain to outside.
CONNECTING CORD
AIR INLET (BACK, LEFT SIDE)
AIR OUTLET
To Next Page
