3-16
MAIN PARTS

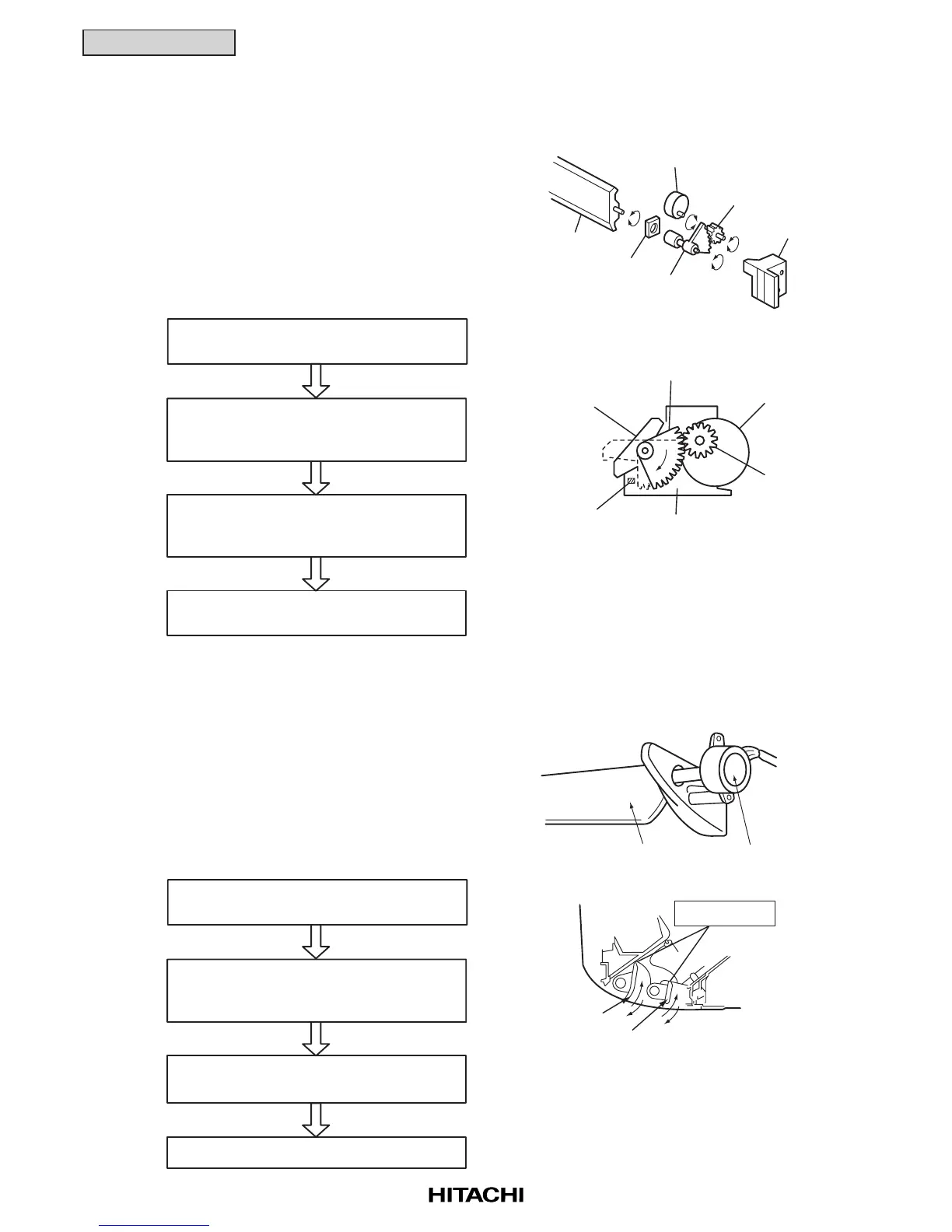

3.3.3 Ceiling Type
(1) Auto-Louver Operation
The louvers of the optional air panel with auto-
louver swing simultaneously by a drive motor.
The parts and the principle of the auto-louver
mechanism are shown in the right figure.
The AS motor (1) rotates, the pinion (2) fixed to
the shaft of the AS motor (1) rotates, the rotating
torque is changed at the rack (3) and the circular
reciprocating force gives the driving force to the
louver (4) and rotates the louver.
(2) Auto-Louver Stoppage
3.3.4 Wall Type
(1) Auto-Louver Operation
The louvers of the optional air panel with auto-
louver swing simultaneously by two drive motors.
The parts and the principle of the auto-louver
mechanism are shown in the right figure.
The motor (1) rotates, the rotating torque is
transmitted to the louver (4) directly and the
circular reciprocating force of the motor rotates
the louver.
(2) Auto-Louver Stoppage
(1) AS Motor
(2) Pinion
(3) Rack
(4) Bearing
(5) Cover
(6) Louver
(1) AS Motor
(2) Pinion
(3) Rack
(6) Louver
Stopper
(5) Cover
(2) Louver (1) Motor
Main Louver
Sub Louver
0 (zero) Reset
Press the "AUTO LOUVER" of the remote
control switch during auto-louver operation.
The rack (3) touches the stopper of the
cover (6), and the louver is reset to the
0 position.
The power supply for AS motor (1) is turned
OFF when the louver is at the setting
position.
The louver (4) is stopped at the setting
position.
Press the "AUTO LOUVER" of the remote
control switch during auto-louver operation.
The louver swings toward the fully open
direction, and the louver is reset to the 0
position.
The louver swings until the louver is at the
setting position.
The louver is stopped at the setting position.
