HITACHI SR-804

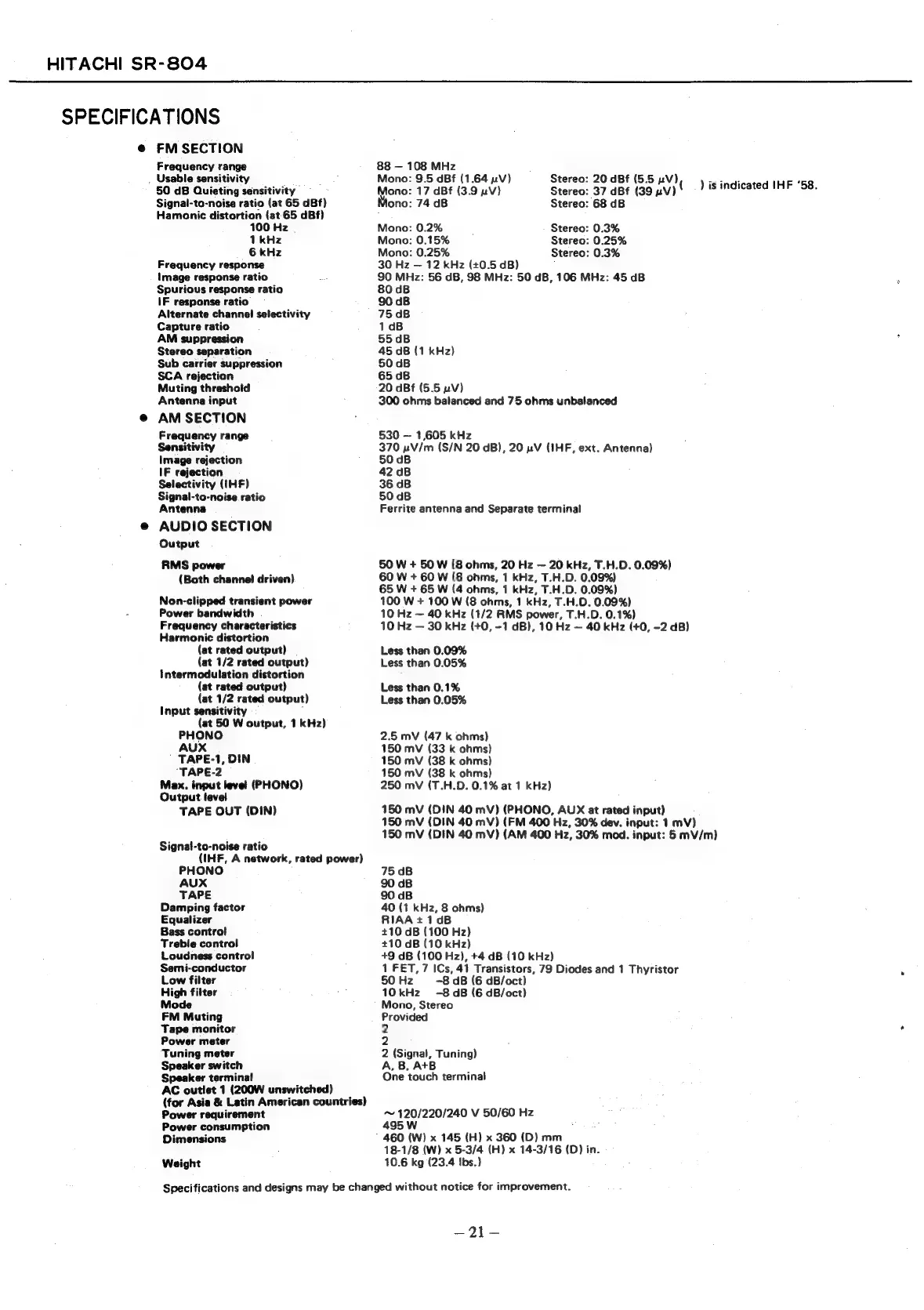

SPECIFICATIONS
@ FM SECTION
Frequency range
Usable sensitivity
50 dB Quieting sensitivity
Signal-to-noise ratio (at 65 dBf)
Hamonic distortion (at 65 dBf)
100 Hz |
1 kHz
6 kHz
Frequency response
Image response ratio
Spurious response ratio
IF response ratio
Alternate channel selectivity
Capture ratio
AM suppression
Stereo separation
Sub carrier suppression
SCA rejection
Muting threshold
Antenna input
@ AM SECTION
Frequency range
Sensitivity
Image rejection
IF rejection
Selectivity (IHF)
Signal-to-noise ratio
Antenna
e AUDIO SECTION
Output
RMS power
(Both channel driven)
Non-clipped transient power
Power bandwidth
Frequency characteristics
Harmonic distortion
(at rated output)
(at 1/2 rated output)
Intermodulation distortion
(at rated output)
(at 1/2 rated output)
Input sensitivity ,
(at 50 W output, 1 kHz)
PHONO
AUX
’ TAPE-1, DIN
TAPE-2
Max. input level (PHONO)
Output level
TAPE OUT (DIN)
Signal-to-noise ratio
{IHF, A network, rated power)
PHONO
AUX
TAPE
Damping factor
Equalizer
Bass control
Treble control
Loudness control
Semi-conductor
Low filter
High filter
Mode
FM Muting
Tape monitor
Power meter
Tuning meter
Speaker switch
Speaker terminal
AC outlet 1 (200W unswitched)
(for Asia & Latin American countries)
Power requirement
Power consumption
Dimensions
Weight
88 — 108 MHz
Mono: 9.5 dBf (1.64 nV)
Stereo: 20 dBf (5.5 nV)
Mono: 17 dBf (3.9 nV)
Stereo: 37 dBf (39 nV) { _) is indicated IHF ‘58.
Mono: 74 dB Stereo: 68 dB
Mono: 0.2% Stereo: 0.3%
Mono: 0.15% Stereo: 0.25%
Mono: 0.25% Stereo: 0.3%
30 Hz — 12 kHz (+0.5 dB)
90 MHz: 56 dB, 98 MHz: 50 dB, 106 MHz: 45 dB
80 dB
90 dB
75 dB
1dB
55 dB
45 dB (1 kHz)
50 dB
65 dB
20 dBf (5.5 pV)
300 ohms balanced and 75 ohms unbalanced
530 — 1,605 kHz
370 uwV/m (S/N 20 dB), 20 nV (IHF, ext. Antenna)
50 dB
42 dB
36 dB
50 dB
Ferrite antenna and Separate terminal
50 W + 50 W (8 ohms, 20 Hz — 20 kHz, T.H.D. 0.09%)
60 W + 60 W (8 ohms, 1 kHz, T.H.D. 0.09%)
65 W + 65 W (4 ohms, 1 kHz, T.H.D. 0.09%)
100 W + 100 W (8 ohms, 1 kHz, T.H.D. 0.09%)
10 Hz — 40 kHz (1/2 RMS power, T.H.D. 0.1%)
10 Hz — 30 kHz (+0, -1 dB), 10 Hz — 40 kHz (+0, -2 dB)
Less than 0.09%
Less than 0.05%
Less than 0.1%
Less than 0.05%
2.5 mV (47 k ohms)
150 mV (33 k ohms)
150 mV (38 k ohms)
150 mV (38 k ohms)
250 mV (T.H.D. 0.1% at 1 kHz)
150 mV (DIN 40 mV) (PHONO, AUX at rated input)
150 mV (DIN 40 mV) (FM 400 Hz, 30% dev. input: 1 mV)
150 mV (DIN 40 mV) (AM 400 Hz, 30% mod. input: 5 mV/m)
75 dB
90 dB
90 dB
40 (1 kHz, 8 ohms)
RIAA + 1dB
+10 dB (100 Hz)
+10 dB (10 kHz)
+9 dB (100 Hz), +4 dB (10 kHz)
1 FET, 7 ICs, 41 Transistors, 79 Diodes and 1 Thyristor
50 Hz -8 dB (6 dB/oct)
10 kHz -8dB (6 dB/oct)
Mono, Stereo
Provided
2
2
2 (Signal, Tuning)
A, B, AtB
One touch terminal
~ 120/220/240 Vv 50/60 Hz
495 W
~ 460 (W) x 145 (H) x 360 (D) mm
18-1/8 (W) x 5-3/4 (H) x 14-3/16 (D) in.
10.6 kg (23.4 Ibs.)
Specifications and designs may be changed without notice for improvement.
