SPECIFICATIONS
12-13

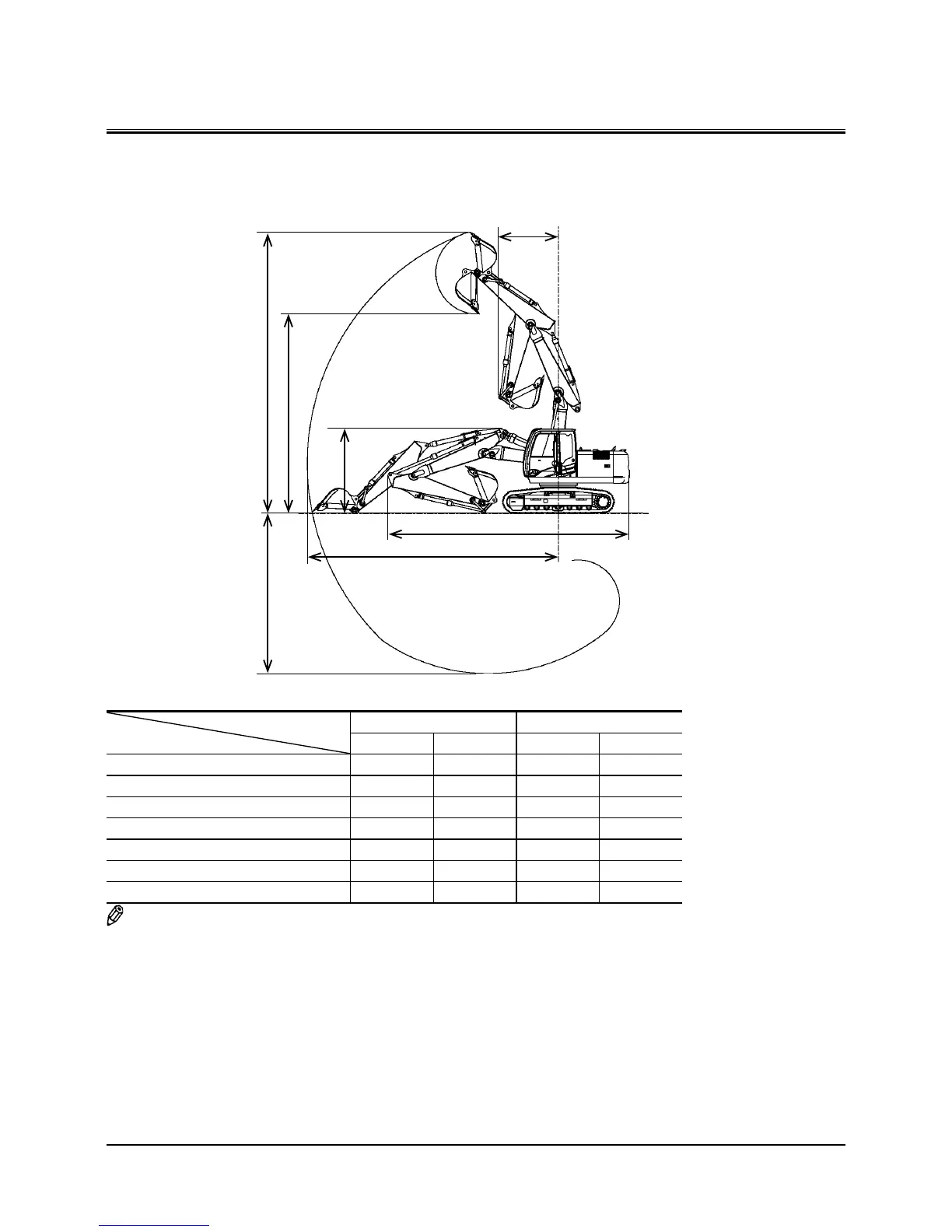

ZX160LC-3 (Machine with 2-Piece Boom)
Category
Item
2.22 m (7 ft 4 in) Arm 2.58 m (8 ft 6 in) Arm
mm ft•in mm ft•in
A: Maximum Digging Reach
8330 27’4” 8690 28’7”
B: Maximum Digging Depth
* 5210 * 17’2” * 5580 * 18’4”
C: Maximum Cutting Height
* 9420 * 30’11” * 9740 * 31’12”
D: Maximum Dumping Height
* 6600 * 21’8” * 6900 * 22’8”
E: Overall Height
3090 10’2” 3010 9’11”
F: Overall Length
8450 27’9” 8350 27’5”
G: Minimum Swing Radius
2580 8’7” 2070 6’10”
NOTE: * The dimensions do not include the height of the shoe lug.
T1T1-01-01-005
C
B
D
E
F
A
G
