OPTIONAL ATTACHMENTS AND DEVICES
13-23

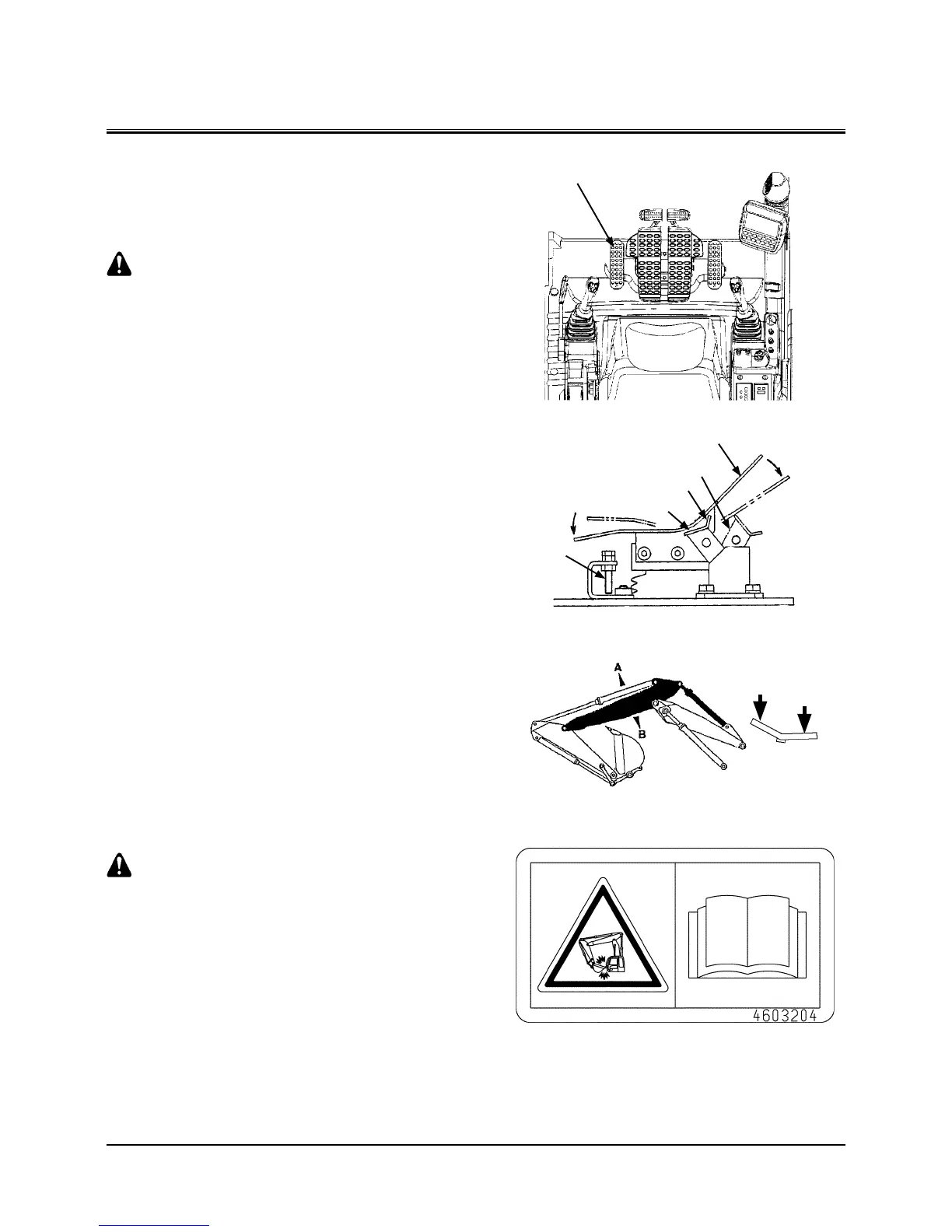

2-PIECE BOOM
2-piece boom operation
The 2-piece boom can be operated using attachment pedal
(1) located on the left front of the seat, as illustrated.
CAUTION: Be sure to lock attachment pedal (1) with
pedal lock (2) when attachment pedal (1) is not in use.
Do not step on attachment pedal (1).
A: Raise
B: Lower
Precautions for operating 2-piece boom.
WARNING: When operating with 2-piece boom, the
bucket may come in contact with the cab. Operate the
machine with care not to allow the tip of bucket to hit
the cab while rolling in the front attachment.
1
M1V1-13-001
Stopper Bar
LOCK
UNLOCK
M1G6-05-011
M1G6-05-018
A
B
SS4603204
1
2
To Next Page
