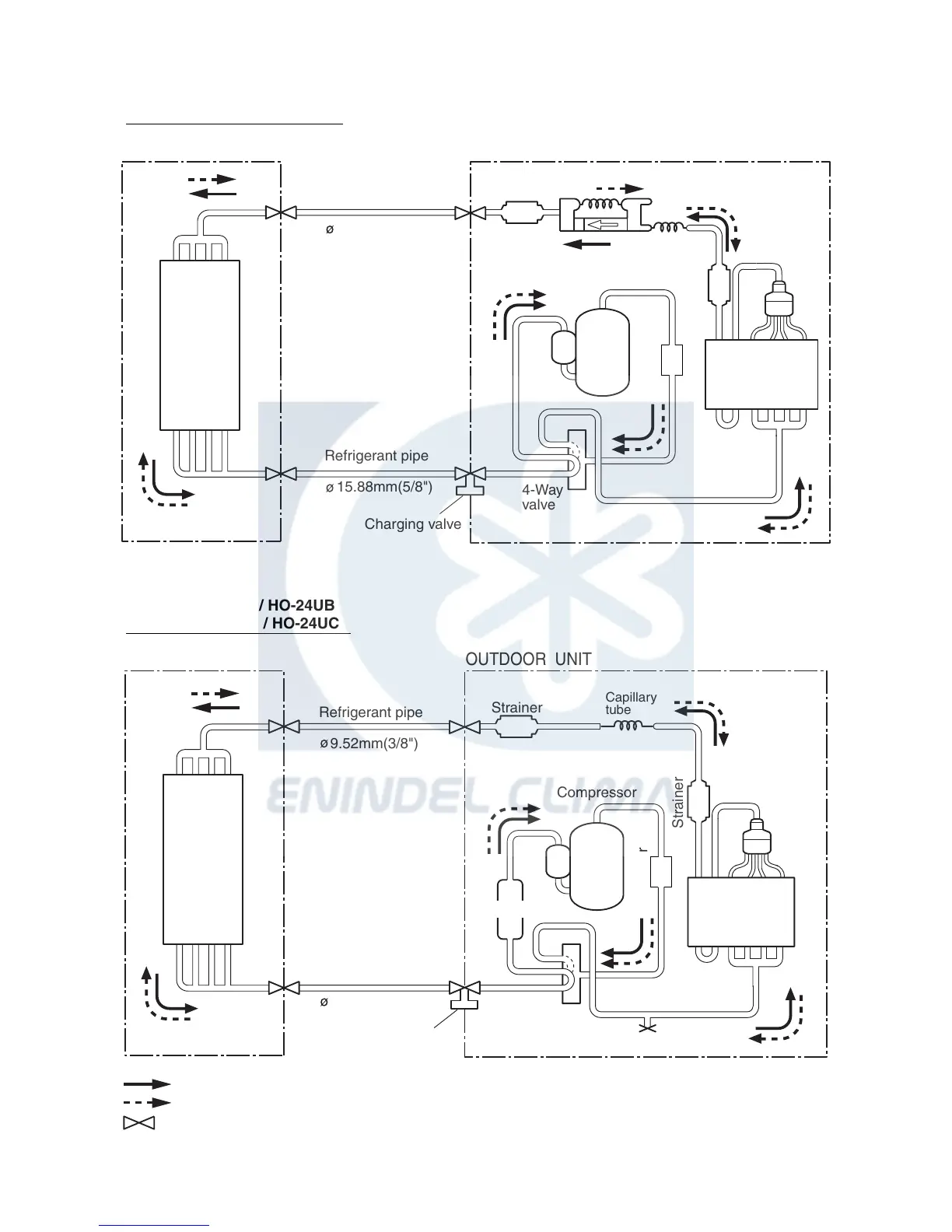

Hiyasu HS-18FA - Diagram (18;24 BTU UA;UB;UC)

HS-18UB / HO-18UB
Models : HS-18UA / HO-18UA
HS-18UC / HO-18UE
HS-24UC / HO-24UC
Models : HS-24UB/ HO-24UB
Evaporator
Distributor
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
Cooling
Heating
: Flare coupling
INDOOR UNIT
Strainer
Strainer
Charging valve
4-Way
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
Accumulator
Evaporator
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
6.35mm(1/4")
INDOOR UNIT
Strainer
Strainer
Charging valve
4-Way
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
2005.03.10 6
Distributor
Muffler
Muffler
