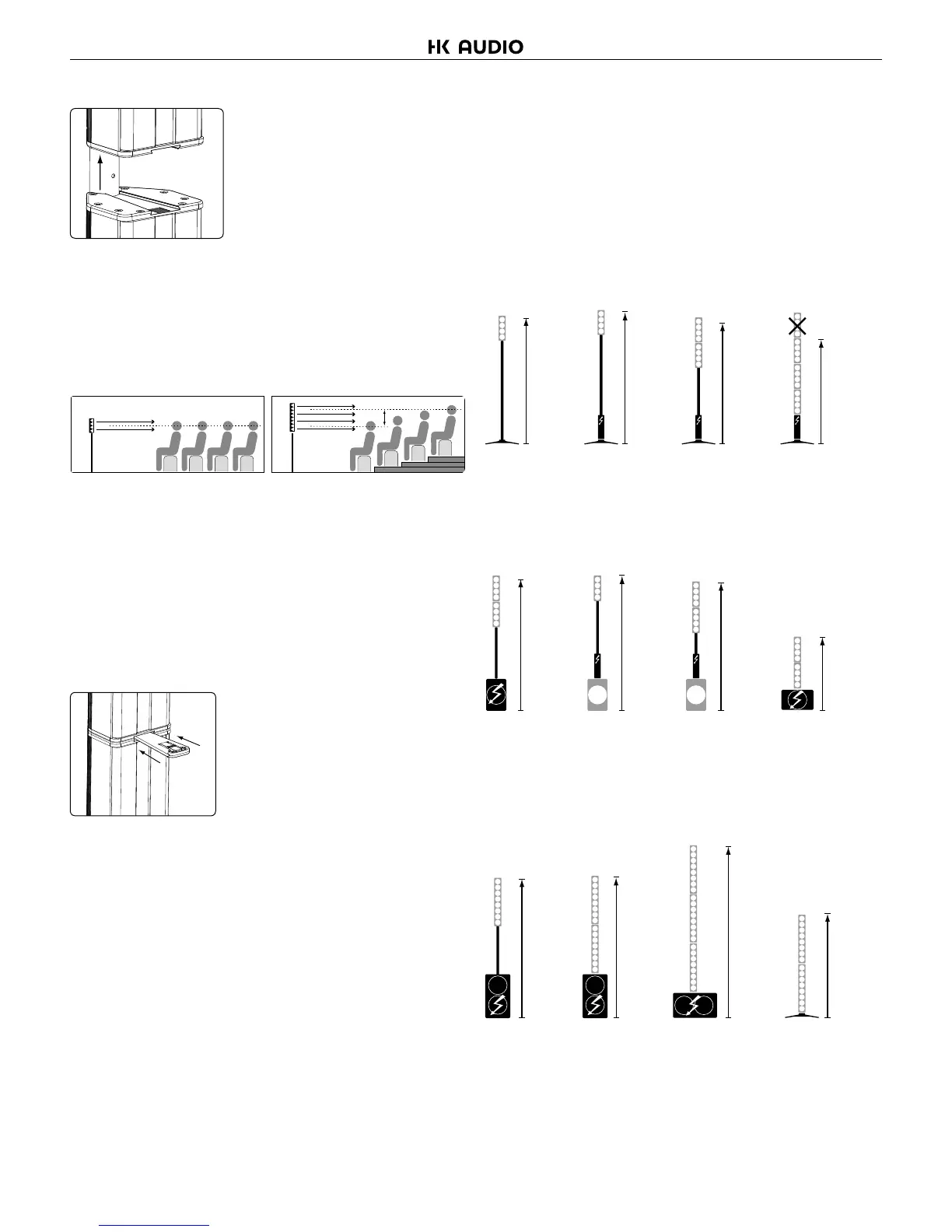

HK Audio E 110 Sub A User Manual

Elements 1.0
7
Uncoupling a connection
Pull!
To disconnect components, press and hold the release button in the
tube joint and then pull apart the components.
The correct height
Since line-array systems such as ELEMENTS provide vertical sound
emission, when installing, always ensure that the central point of a line
of one or multiple mid/high elements is continually adjusted to the head
height of the listener.
To adapt the height of a line, infinitely adjustable spacer stems, which
can be locked using a twist-off cap, are optionally available in two
different lengths:
EP 1: 95 - 160 cm
EP 2: 40 - 60.5 cm
The correct angle
To achieve perfect emitting properties, all connected components must
emit sound at the same angle. The ELEMENTS locking wedge feature
lets you lock the mid/high element under each other or on a bass,
whereupon twisting is no longer possible.
Push!
The locking wedge is simply clicked into the special shaft provided and
released simply by applying slight pressure to the central plate.
Note: for older ELEMENTS system components without locking
wedges, retrofit kits are available - please connect your ELEMEMTS
dealer.
Installation pointers
When installing, always be careful to ensure a horizontal and firm
surface! To avoid any risk of overturning, the following installation
information for ELEMENTS configurations should be followed to the
letter.
Combinations with foot EF 45 connected to spacer stems
EP 1 / EP 2 and the mid/high element E 435 (or E 835)
Be careful when installing an ELEMENTS system with the foot EF 45 to
ensure the extended feet are always pushed out completely and fixed by
locking screws. The following specified maximum heights must not be
exceeded. Never connect together two spacer stems!
1x E 435
+ EP 1
max.
2,05 m/
8-1/16"
1x E 435
+ EP 1
max.
2,45 m/
9-5/8"
AMP
2x E 435
+ EP 2
max.
1,80 m/
7-5/64"
3x E 435
max.
1,69 m/
6-21/32"
AMP AMP
Combinations with bass element E 110 Sub A / AS
connected to spacer stems EP 1 or EP 2 and the mid/high
element E 435/E 835
The following specified maximum heights must not be exceeded. Never
connect together two spacer stems!
2x E 435
+ EP 1
max.
2,10 m/
8-17/64"
1x E 435
+ EP 1
max.
2,55 m/
10-25/64"
2x E 435
+ EP 2
max.
2,00 m/
7-7/8"
2x E 435
max.
1,06 m/
4-11/64"
AMP
AMP
Combinations with bass element E 210 Sub AS connected
to the spacer stem EP 2 and the mid/high element E 835
The following specified maximum heights must not be exceeded.
Never connect together two spacer stems! When operating three E 835
elements, it is important to ensure the bass is only used in a horizontal
position.
1x E 835
+ EP 1
max.
1,96 m/
7-23/32"
2x E 835
max.
2,17 m/
8-17/32"
3x E 835
max.
2,63 m/
10-23/64"
2x E 835
max.
1,60 m/
6-19/64"
• English • Deutsch • Français • Italiano • Español

HK Audio E 110 Sub A Specifications

General

Subwoofer type	Active subwoofer
Amplifier class	D
Wireless subwoofer	No
Number of subwoofers	1
Subwoofer frequency range	45 - 150 Hz
Subwoofer driver diameter (imperial)	10 \
XLR in	Yes
Product color	Black
Package type	Box

Weight and Dimensions

Subwoofer depth	460 mm
Subwoofer width	300 mm
Subwoofer height	480 mm
Subwoofer weight	19000 g
