HMS M0701 - Page 15

14
42
Flat washer OD20*ID10.5*2.0T
5
87
Bottle shelf
1
43
M10*6.35T(subtense 14) nylon nut
3
88
Bottle
1
44
Crank axes
1
89
Transformer
1
45
R12 bearing
2
90
Rear stabilizer washer(right)
1
ASSEMBLY INSTRUCTION

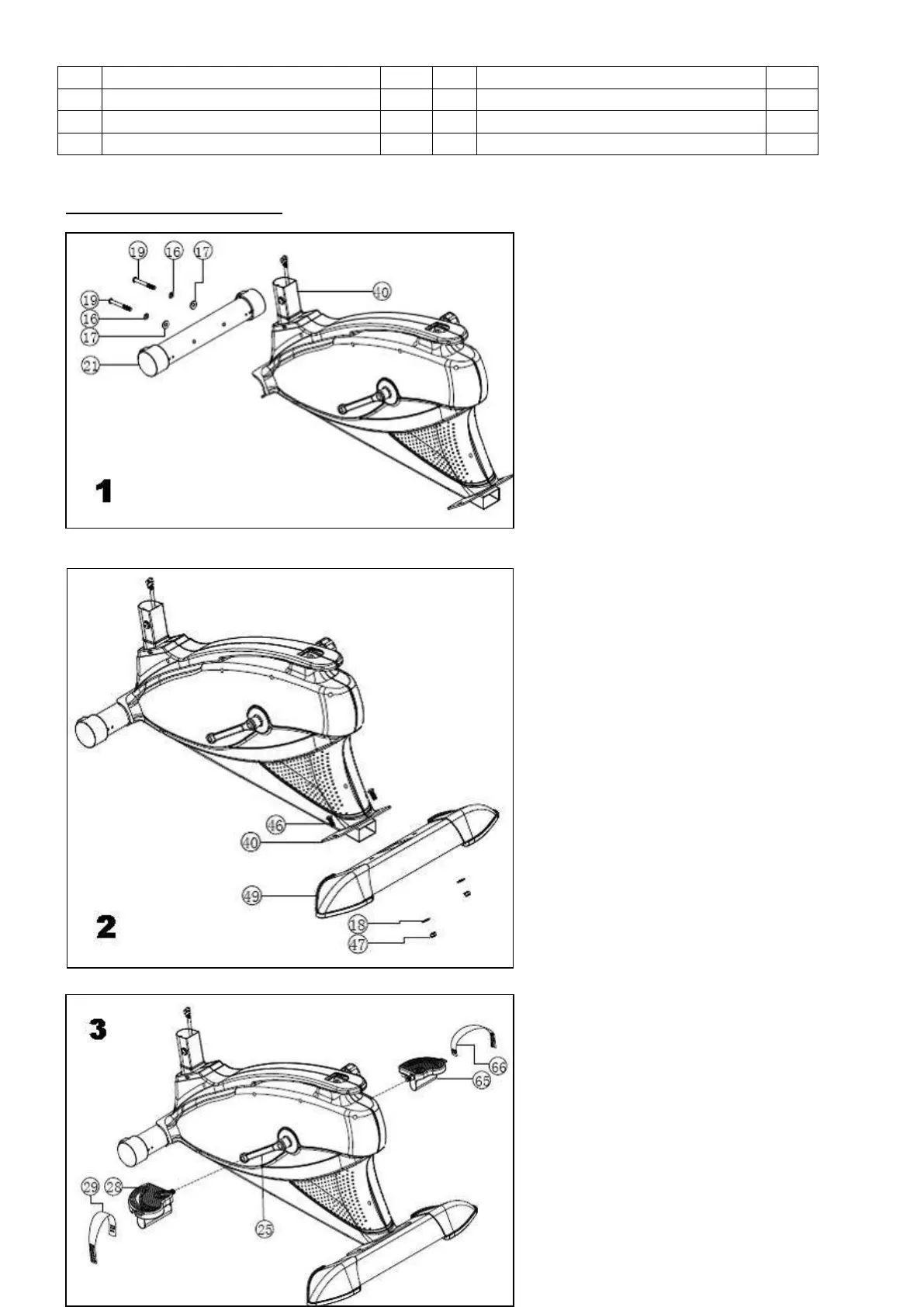

1. Assembly of front stabilizer (pic1)
1.Attach the front stabilizer tube(21) onto
the arc piece
In front of the main frame(40). Make the
screw M8*72
(19) transit the spring washer M8(16) and
arc washer
M8(17), then lock well with main frame
2. Assembly of Rear stabilizer (pic2)
1.Attach the rear stabilizer set(49) onto
the fixed piece at the back of main frame
(40). Locked well with carriage screw
M8*20(46), flat washer OD20*ID8.5*2.0T
(18) and M8 nylon nut(47)
3. Assembly of pedal (pic3)
1. Connect the pedal belt(29, 66) as the
picture 3-A - 3-D
2. Then Lock the left pedal (28)with the left
crank leg(25)
well as counter cock wise direction
3. Lock the right pedal(65) with the right
crank leg well as cock wise direction.
