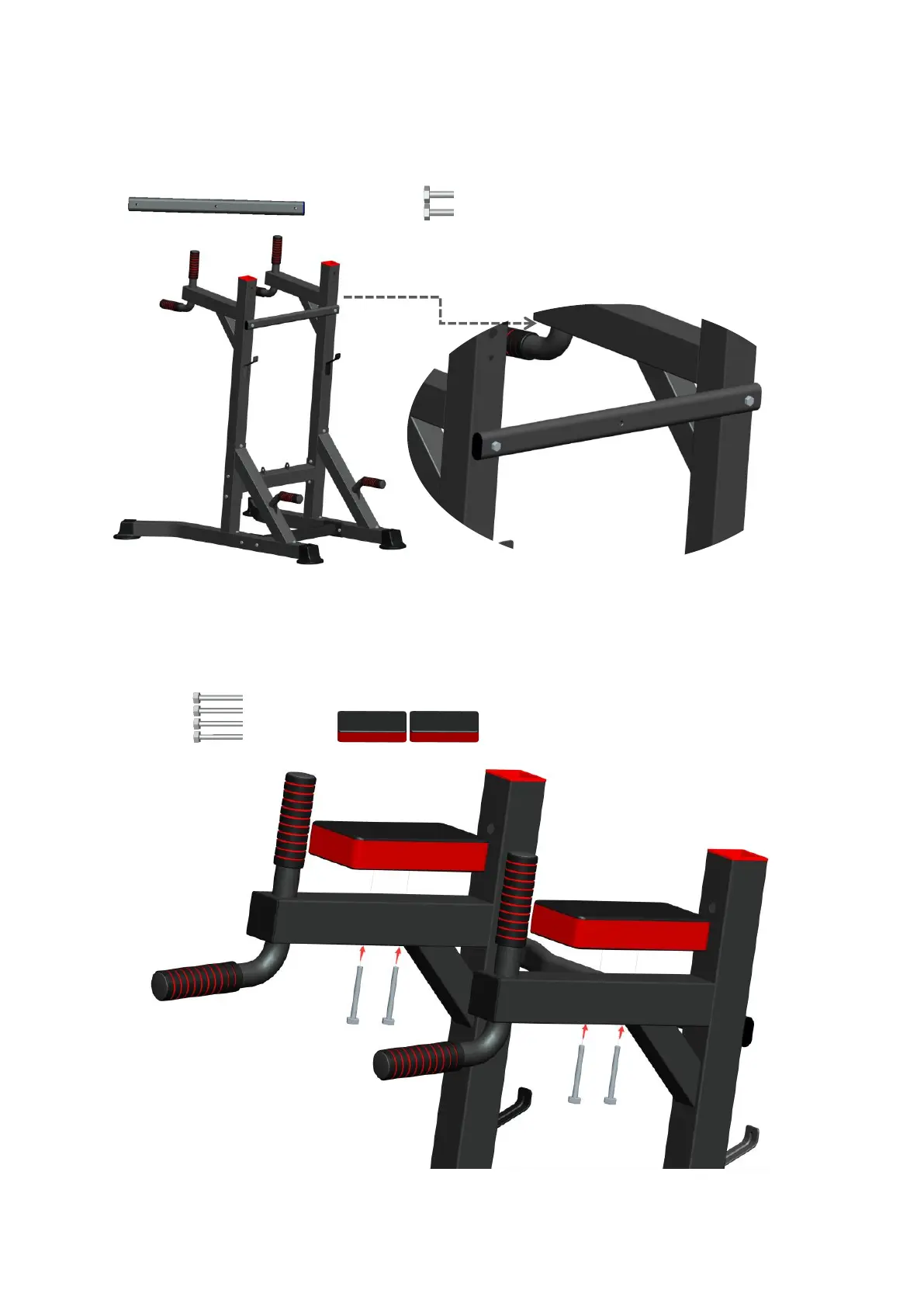

PARTS:
W BACK SUPPORT TUBE S HEX SCREW M8x12mm (2PCS)
SETP 6: ASSEMLING ELBOW SUPPORT
PARTS： Q HEX SCREW M8x55（4 pcs.） D ELBOW SUPPORT
Install elbow pad on main frame with M8×55mm hexagon bolt
